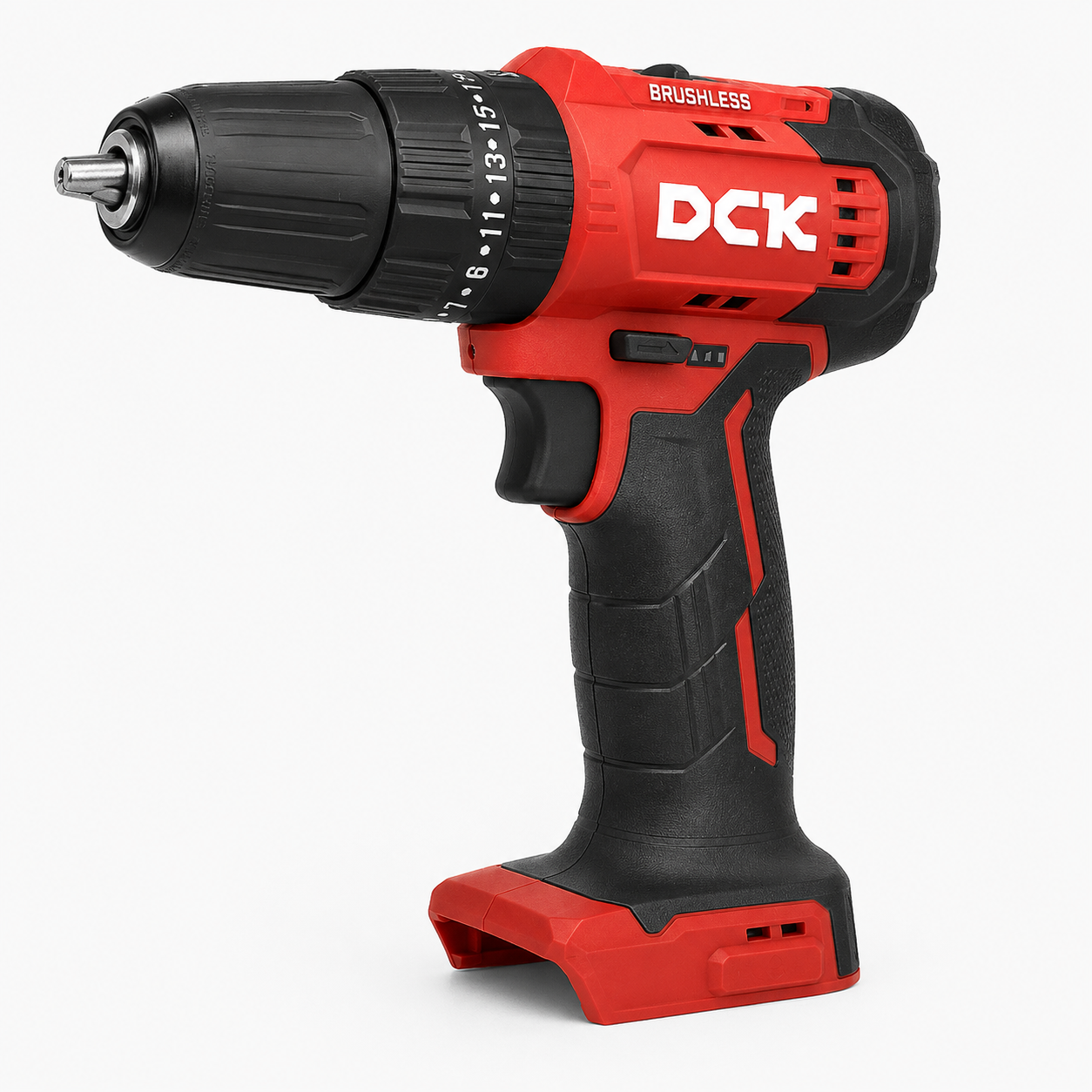

The DCK KDJZ23-10i TYPE Z 12V Brushless Cordless Driver Hammer Drill is a compact and lightweight cordless tool designed for drilling, screwdriving, and light hammer drilling tasks. Powered by the DCK 12V MAX platform and a high-efficiency brushless motor, it delivers strong performance in a small body, making it ideal for installation work, maintenance, furniture assembly, electrical work, and daily workshop use.
This cordless brushless driver hammer drill delivers up to 35Nm maximum torque and features 20+2 torque settings, giving users accurate control for different fastening and drilling applications. The 10mm chuck supports common drill bits and driver bits, while the two-speed gearbox provides low-speed control from 0 to 460 RPM and high-speed drilling up to 1600 RPM. It also offers an impact frequency of up to 24000 impacts per minute for drilling into brick walls.
The KDJZ23-10i TYPE Z can drill up to 10mm in steel, 20mm in wood, and 8mm in brick wall. Its rubber-covered handle improves grip comfort, while the lightweight design helps reduce fatigue during overhead work and tight-space applications. As a TYPE Z package, this version is supplied as a solo body-only tool without battery and charger, making it suitable for users who already own compatible DCK 12V MAX batteries and chargers. The official DCK listing identifies this model as KDJZ23-10i TYPE EK/Z, with Type Z supplied as the solo package.
Features:
- Brushless motor for higher efficiency, stronger performance, and longer service life
- 12V MAX cordless platform for compact and flexible operation
- 35Nm maximum torque for drilling and screwdriving tasks
- 20+2 torque settings for accurate control in different applications
- 10mm chuck capacity for common drill bits and driver bits
- Two-speed gearbox for screwdriving and drilling
- No-load speed of 0 to 460 RPM in low gear and 0 to 1600 RPM in high gear
- Rated impact frequency up to 24000 impacts per minute for light masonry work
- Drilling capacity up to 10mm in steel, 20mm in wood, and 8mm in brick wall
- Rubber-covered handle for improved comfort and grip
- Compact and lightweight design for easier use in tight or overhead spaces
- Type Z body-only package supplied without battery and charger
Specifications:
| Specification |
Details |
| Brand |
DCK |
| Model |
KDJZ23-10i |
| Type |
TYPE Z |
| Product Type |
Cordless Brushless Driver Hammer Drill |
| Power Source |
12V MAX Lithium-ion Battery |
| Package Style |
Body Only |
| Battery Included |
No |
| Charger Included |
No |
| Max Chucking Capacity |
10mm |
| Max Screw Diameter |
7mm |
| Rated Impact Frequency |
0 to 24000 impacts per minute |
| No-load Speed Low |
0 to 460 RPM |
| No-load Speed High |
0 to 1600 RPM |
| Max Drilling Diameter in Steel |
10mm |
| Max Drilling Diameter in Wood |
20mm |
| Max Drilling Diameter in Brick Wall |
8mm |
| Torque Settings |
20+2 |
| Max Torque |
35Nm |
| Motor Type |
Brushless Motor |
| Handle |
Rubber-covered Handle |
| Net Weight |
Approx. 0.8 kg body only |
What is in the Box:
- 1 x DCK KDJZ23-10i TYPE Z 12V Brushless Cordless Driver Hammer Drill
- 1 x Double-end Driver Bit
- 1 x Color Box Packing
