Versatile DC/AC clamp meter with 4000 counts display, measures up to 400A current and 400V voltage, includes NCV and diode test.

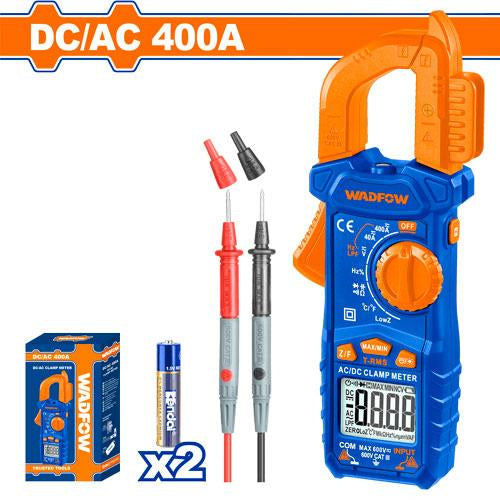

The WADFOW DC/AC Clamp Meter WDM65035 is a versatile and reliable tool designed for both professional and home use. It features a 4000-count LCD display with backlight, allowing for easy reading in various lighting conditions. This clamp meter is capable of measuring DC current up to 400A and AC current up to 400A, making it suitable for a wide range of electrical applications.
Additionally, it supports AC voltage measurements up to 400V and DC voltage up to 400V, offering comprehensive functionality for electricians and DIY enthusiasts alike. The meter includes resistance measurement capabilities up to 60M½ and capacitance measurement up to 100mf, ensuring it can handle complex diagnostic tasks. Packed with features such as NCV, LowZ, diode test, data hold, and low battery indication, this device is designed to meet the demanding needs of modern users.
The WADFOW DC/AC Clamp Meter comes equipped with a duty cycle measurement range of 1% to 99%, a flash light function, auto power off for energy saving, and is powered by two LR03 AAA batteries. It is compact, lightweight, and packaged in a color box for easy storage and transportation.
Key Features
- 4000 counts LCD with backlight
- Measures DC/AC current up to 400A
- Supports AC/DC voltage up to 400V
- Includes NCV and diode test
- Auto power off and low battery indication
Technical Specifications
| Specification |
Value |
| Display | 4000 counts LCD with backlight |
| DC/AC Current | 40A/400A |
| AC Voltage | 2V/20V/200V/400V |
| Resistance | 600½/6k½/60k½/600k½/6M½/60M½ |
| Capacitance | 10nf/100nf/1000nf/10_F/100_F/1000_F/10mf/100mf |
