Description

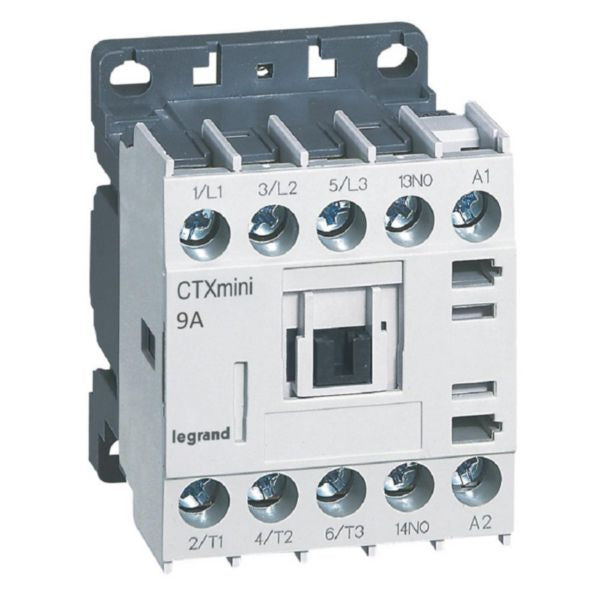

Shop Legrand CTX3 Mini 3P 9A 1NO 110V AC Motor Contactor | 417024 In Iraq Best Prices

Compact 9A (AC-3) motor contactor with 110V AC coil, 1NO auxiliary contact, and 12 million mechanical operations endurance for reliable motor and lighting control in industrial applications.

The CTX³ mini power contactor is a reliable switching device specifically designed for motor control, lighting, and heating circuit applications. With a rated capacity of 9A (AC-3) for switching 3-phase motors up to 4 kW at 415V, and 20A (AC-1) for resistive loads, this compact contactor delivers exceptional performance in tertiary and industrial installations. The device features a 110V AC coil, one normally open (1NO) auxiliary contact, and screw terminals that accommodate power cables from 1.25mm² to 2mm², coil connections from 0.75mm² to 2.5mm², and auxiliary circuit connections from 0.75mm² to 2.5mm². Its compact design optimizes space utilization in control and distribution assemblies while maintaining robust electrical performance. Engineered for durability and reliability, the CTX³ mini contactor offers exceptional mechanical endurance with up to 12 million mechanical operations and 1 million electrical operations. The device can handle 1800 operation cycles per hour in AC-3 applications, making it ideal for demanding industrial environments. It features fixed mounting compatibility with standard 35mm 'top hat' mounting rails (IEC 60715) and mounting plates, ensuring easy installation in modern control cabinets. The contactor is fully compatible with all Legrand CTX3 mini auxiliary modules and accessories, providing flexible configuration options for various control requirements. This product complies with all substance-restriction requirements and has been designed with environmental consciousness in mind. The CTX³ mini contactor is suitable for distribution boards and recommended for switching both inductive and non-inductive loads. Its advanced design ensures reliable performance in demanding applications while maintaining compliance with international electrical standards and regulations.

Key Features

Rated 9A (AC-3) for switching 3-phase motors up to 4 kW at 415V and 20A (AC-1) for resistive loads
110V AC coil with 1 normally open (1NO) auxiliary contact for flexible control configurations
Exceptional mechanical endurance: 12 million mechanical operations and 1 million electrical operations
Compact design optimizes space in control and distribution assemblies with 35mm 'top hat' rail compatibility
Screw terminals accommodate power cables 1.25-2mm², coil 0.75-2.5mm², and auxiliary circuits 0.75-2.5mm²
Handles 1800 operation cycles per hour in AC-3 applications for demanding industrial environments
Fully compatible with all Legrand CTX3 mini auxiliaries and accessories for flexible system integration
Complies with substance-restriction requirements and designed with environmental consciousness
Suitable for distribution boards and recommended for both inductive and non-inductive load switching
Fixed mounting on 35mm IEC 60715 'top hat' mounting rails and mounting plates for easy installation

Technical Specifications

Specification	Value
Product Type	Motor Contactor - CTX³ Mini Series
Reference Number	417024
EAN Code	3414970404053
Rated Control Supply Voltage AC 50 Hz	93.5-121 V
Rated Control Supply Voltage AC 60 Hz	93.5-121 V
Voltage Type for Actuating	AC (Alternating Current)
Rated Operation Current at AC-1, 400V	20 A
Rated Operation Current at AC-3, 400V	9 A
Rated Operation Power at AC-3, 400V	4 kW
Main Contacts Configuration	3 Normally Open (3NO), 0 Normally Closed
Auxiliary Contacts	1 Normally Open (1NO), 0 Normally Closed
Power Terminal Capacity	1.25mm² to 2mm²
Coil Terminal Capacity	0.75mm² to 2.5mm²
Auxiliary Circuit Terminal Capacity	0.75mm² to 2.5mm²
Electrical Connection Type	Cable Clamp (Screw Terminals)
Mechanical Endurance	Up to 12 million mechanical operations
Electrical Endurance	1 million electrical operations
Operation Cycles per Hour (AC-3)	1800 cycles
Mounting Method	35mm 'Top Hat' Mounting Rail (IEC 60715) and Mounting Plate
Suitable for Distribution Board	Yes
Compatibility	All Legrand CTX3 Mini Auxiliaries and Accessories
Environmental Compliance	RoHS Directive, REACH Declaration, Substance-Restriction Compliant
Application	Motor Control, Lighting, Heating Circuits - Tertiary and Industrial Installations
Load Types	Inductive and Non-Inductive Loads

Order Legrand CTX3 Mini 3P 9A 1NO 110V AC Motor Contactor | 417024 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.

Legrand CTX3 Mini 3P 9A 1NO 110V AC Motor Contactor | 417024
