Description

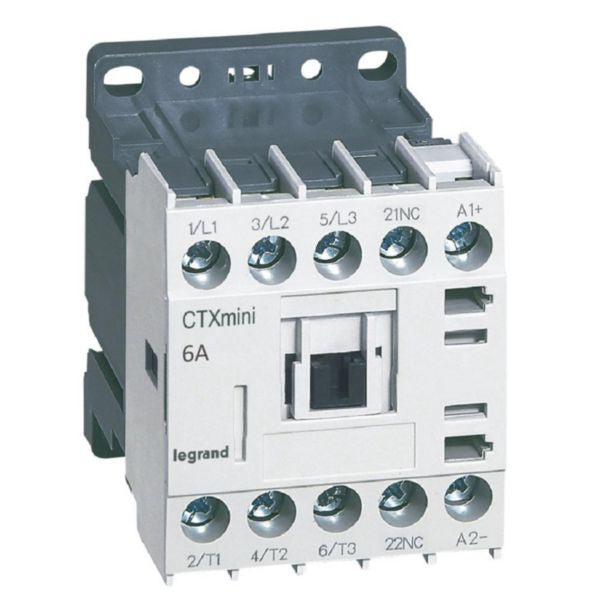

Shop Legrand CTX3 Mini Motor Contactor 3P 6A 24V DC | 417011 In Iraq Best Prices

Compact CTX3 mini motor contactor with 6A rating, 24V DC coil, 1NC auxiliary contact, and 12 million operation endurance for reliable industrial motor control and load switching.

The CTX³ mini power contactor is a compact industrial switching device engineered for reliable motor control and load management. This contactor features a reduced size design that optimizes cabinet space while delivering superior switching performance for 3-phase motors up to 2.2kW (6A AC-3) and resistive loads up to 20A (AC-1). The device is equipped with a 24V DC coil, one normally closed (1NC) mirror auxiliary contact, and advanced mechanical construction rated for up to 12 million mechanical operations and 1 million electrical operations. Designed specifically for tertiary and industrial installations, this CTX3 mini contactor incorporates Legrand's proven reliability and precision engineering. The screw terminals accommodate power connections from 1.25mm² to 2mm² and coil/auxiliary circuit connections from 0.75mm² to 2.5mm². The contactor operates at a maximum cycle rate of 1800 operations per hour (AC-3), making it ideal for demanding industrial applications requiring frequent switching operations. Its mirror contact design complies with IEC 60947-4-1 standards, ensuring compatibility with industry-standard control systems. The product is fully compatible with all Legrand CTX3 mini auxiliary modules and accessories, allowing for flexible system configuration and expansion. Environmental compliance is assured through adherence to substance-restriction requirements and environmentally conscious design processes. Installation is straightforward with support for both 35mm top hat mounting rails (IEC 60715) and standard mounting plates, making integration into existing electrical systems seamless and efficient.

Key Features

Compact reduced size design optimizes cabinet space and installation efficiency
Rated for 6A AC-3 switching of 3-phase motors up to 2.2kW at 415V
Handles resistive loads up to 20A AC-1 for versatile load management
24V DC coil with 1NC mirror auxiliary contact meeting IEC 60947-4-1 standards
Exceptional endurance of 12 million mechanical and 1 million electrical operations
Maximum cycle rate of 1800 operations per hour for demanding industrial applications
Compatible with all Legrand CTX3 mini auxiliaries and accessories for flexible configuration
Flexible screw terminal connections supporting multiple wire gauges
Mounting on 35mm top hat rails (IEC 60715) or standard mounting plates
Environmentally compliant design with substance-restriction adherence

Technical Specifications

Specification	Value
Product Type	Motor Contactor
Model	CTX3 Mini
Rated Control Supply Voltage	24V DC (20.4-26.4V operating range)
Rated Operation Current AC-3 at 400V	6A
Rated Operation Current AC-1 at 400V	20A
Rated Operation Power AC-3 at 400V	2.2kW
Number of Main Contacts	3 normally open (3NO)
Number of Auxiliary Contacts	1 normally closed (1NC) mirror contact
Main Circuit Connection Type	Cable clamp (screw terminals)
Power Terminal Capacity	1.25mm² to 2mm²
Coil Terminal Capacity	0.75mm² to 2.5mm²
Auxiliary Circuit Terminal Capacity	0.75mm² to 2.5mm²
Mechanical Endurance	Up to 12 million operations
Electrical Endurance	Up to 1 million operations
Maximum Cycle Rate	1800 operations per hour (AC-3)
Mounting Method	35mm top hat rail (IEC 60715) or mounting plate
Suitable for Distribution Board	Yes
Auxiliary Contact Standard	IEC 60947-4-1 mirror contact
Reference Number	417011
EAN Code	3414970403933
Environmental Compliance	RoHS compliant, REACH declaration compliant
Recommended Applications	Tertiary and industrial installations, inductive and non-inductive load switching

Order Legrand CTX3 Mini Motor Contactor 3P 6A 24V DC | 417011 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
