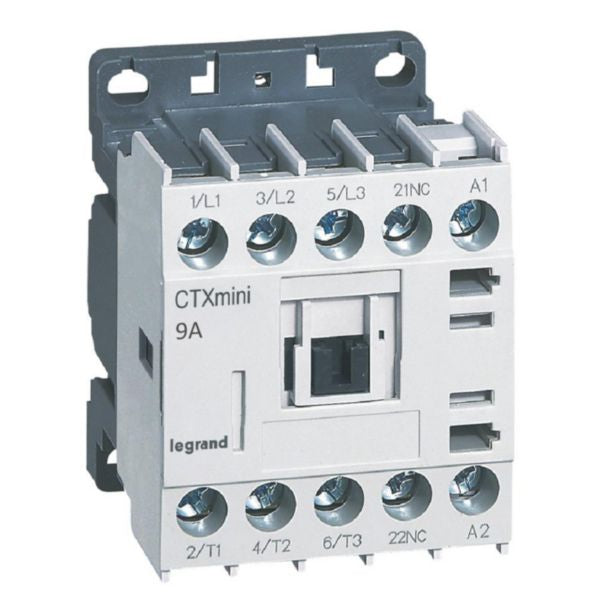

Shop Legrand CTX3 Mini 3P 9A 1NC 24V AC Motor Contactor | 417030 In Iraq Best Prices
Compact CTX³ mini contactor for 3-phase motors up to 4kW with 24V AC coil, 1NC auxiliary contact, and exceptional 12 million mechanical operation endurance. Perfect for industrial motor control applications.
The CTX³ mini power contactor is a compact switching device specifically designed for industrial and tertiary installations. With reduced size optimization, it efficiently switches 3-phase motors up to 4kW (AC-3 9A) and resistive loads up to 20A (AC-1). This contactor features a 24V~ AC coil and includes 1NC mirror auxiliary contact that meets IEC 60947-4-1 standard requirements. The device delivers exceptional endurance with up to 12 million mechanical operations and 1 million electrical operations, ensuring reliable long-term performance in demanding applications.
The CTX³ mini contactor is engineered with screw terminals that accommodate power connections from 1.25mm² to 2mm², coil connections from 0.75mm² to 2.5mm², and auxiliary circuit connections from 0.75mm² to 2.5mm². Its compact design allows for flexible mounting on 35mm "top hat" mounting rails (IEC 60715) or mounting plates, optimizing cabinet space utilization. The contactor can be equipped with all Legrand CTX3 mini auxiliaries and accessories, providing comprehensive customization options for diverse installation requirements.
This product complies with all substance-restriction requirements and has been manufactured through an environmentally conscious process. With a rated operational capacity of 1800 cycles per hour at AC-3, the CTX³ mini contactor is recommended for switching both inductive and non-inductive loads. Reference number 417030 with EAN 3414970404114, this device represents Legrand's commitment to quality, reliability, and innovation in motor control solutions.
Key Features
- Compact design optimizes cabinet space with reduced size
- Switches 3-phase motors up to 4kW (AC-3 9A) and resistive loads to 20A (AC-1)
- 12 million mechanical operations and 1 million electrical operations endurance
- 24V AC coil with 1NC mirror auxiliary contact meeting IEC 60947-4-1 standard
- Compatible with all Legrand CTX3 mini auxiliaries and accessories
- Flexible mounting on 35mm top hat rails or mounting plates
- 1800 operation cycles per hour at AC-3 rating
- Screw terminals for power (1.25-2mm²), coil (0.75-2.5mm²), and auxiliary circuits
- Environmentally conscious manufacturing process
- Suitable for both inductive and non-inductive load switching
Technical Specifications
| Specification |
Value |
| Product Reference | 417030 |
| EAN Code | 3414970404114 |
| Rated Control Supply Voltage AC 50Hz | 20.4-26.4V |
| Rated Control Supply Voltage AC 60Hz | 20.4-26.4V |
| Voltage Type for Actuating | AC |
| Number of Normally Closed Main Contacts | 0 |
| Number of Normally Open Main Contacts | 3 |
| Type of Electrical Connection | Cable clamp (Screw terminals) |
| Rated Operation Current AC-1 at 400V | 20A |
| Rated Operation Current AC-3 at 400V | 9A |
| Rated Operation Power AC-3 at 400V | 4kW |
| Number of Auxiliary Normally Open Contacts | 0 |
| Number of Auxiliary Normally Closed Contacts | 1 |
| Auxiliary Contact Type | 1NC Mirror Contact |
| Power Terminal Capacity | 1.25mm² to 2mm² |
| Coil Terminal Capacity | 0.75mm² to 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 0.75mm² to 2.5mm² |
| Mechanical Endurance | 12 million operations |
| Electrical Endurance | 1 million operations |
| Operation Cycles per Hour at AC-3 | 1800 |
| Mounting Method | 35mm top hat rail (IEC 60715) or mounting plate |
| Suitable for Distribution Board | Yes |
| Product Category | Motor Contactor |
| Brand | Legrand |
| Product Line | CTX³ mini |
| Compliance Standards | IEC 60947-4-1, RoHS Directive, REACH |
| Application | Industrial and tertiary installations |
