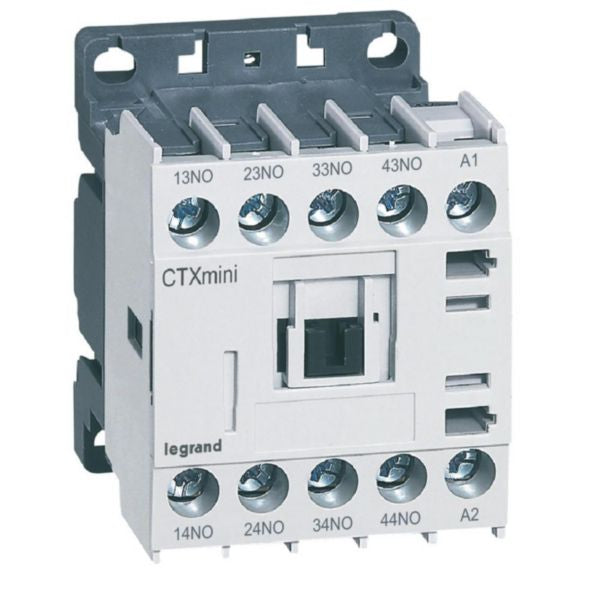

Shop Legrand CTX3 Control Relay 4NO 24V AC Motor Protection | 416800 In Iraq Best Prices

Professional CTX³ control relay with 4NO contacts and 24V AC coil, offering 20 million mechanical operations and 0.5 million electrical operations. DIN-rail and plate mounting options with extendable contacts for industrial motor protection and circuit control.

The CTX³ control relay is a professional-grade industrial component designed to control circuits via 4 normally open (4NO) contacts actuated by a 24V AC low-consumption coil. This relay delivers exceptional reliability and durability with up to 20 million mechanical operations and 0.5 million electrical operations at AC-15 rating. The device features screw terminals with capacity ranging from 0.75mm² to 2.5mm² for the coil and 1.25mm² to 2mm² for power circuits, making it suitable for diverse industrial applications. The CTX³ relay offers flexible mounting options including DIN-rail installation on 35mm 'top hat' mounting rails (IEC 60715) or direct plate mounting, enabling optimized space utilization within electrical cabinets. With a rated control supply voltage of 20.4-26.4V AC at both 50Hz and 60Hz frequencies, this relay maintains consistent performance across different power supply standards. The compact design and extendable contact capabilities allow for easy customization through CTX3 mini auxiliary contact blocks, providing scalability for expanding control requirements. Engineered with environmental consciousness and compliance with substance-restriction requirements, the CTX³ relay represents a sustainable choice for tertiary and industrial installations. The device supports manual operation and features an interface capability for integration with automated systems. With a rated operation current of 1.9A at 400V and 1800 operation cycles per hour in AC-3 applications, this relay is engineered for demanding industrial environments requiring reliable circuit control and motor protection.

Key Features

4 Normally Open (4NO) main contacts for reliable circuit control and switching
24V AC low-consumption coil with 20.4-26.4V operating range at 50Hz and 60Hz
Exceptional endurance: 20 million mechanical operations and 0.5 million electrical operations
Flexible mounting on 35mm DIN-rail or direct plate mounting for space optimization
Extendable contacts via CTX3 mini auxiliary contact blocks for customizable configurations
Screw terminals: Power 1.25-2mm², Coil 0.75-2.5mm² for diverse wiring requirements
1800 operation cycles per hour in AC-3 applications for demanding industrial use
Manual operation capability with interface support for system integration
Compliant with substance-restriction requirements and environmentally conscious design
Rated operation current of 1.9A at 400V for reliable motor protection

Technical Specifications

Specification	Value
Product Type	Control Relay
Model	CTX³
Reference Number	416800
EAN Code	3414970407528
Contact Configuration	4NO (4 Normally Open)
Coil Voltage	24V AC
Coil Voltage Range	20.4-26.4V AC
Frequency	50Hz and 60Hz
Mechanical Operations	Up to 20 million cycles
Electrical Operations	0.5 million cycles (AC-15)
Operation Cycles per Hour	1800 (AC-3 applications)
Rated Operation Current	1.9A at 400V
Power Terminal Capacity	1.25mm² to 2mm²
Coil Terminal Capacity	0.75mm² to 2.5mm²
Connection Type	Screw terminals
Mounting Method	DIN-rail (35mm IEC 60715) or Plate mounting
Interface	Yes
LED Indication	No
Manual Operation	Yes
Auxiliary Contacts	Extendable via CTX3 mini blocks
Normally Closed Contacts	0
Normally Open Contacts	4
Delayed Switching Contacts	0
Change-over Contacts	0
Compliance	RoHS Directive, REACH Declaration
Environmental Design	Environmentally conscious process
Application	Tertiary and industrial installations
Manufacturer	Legrand

Order Legrand CTX3 Control Relay 4NO 24V AC Motor Protection | 416800 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
