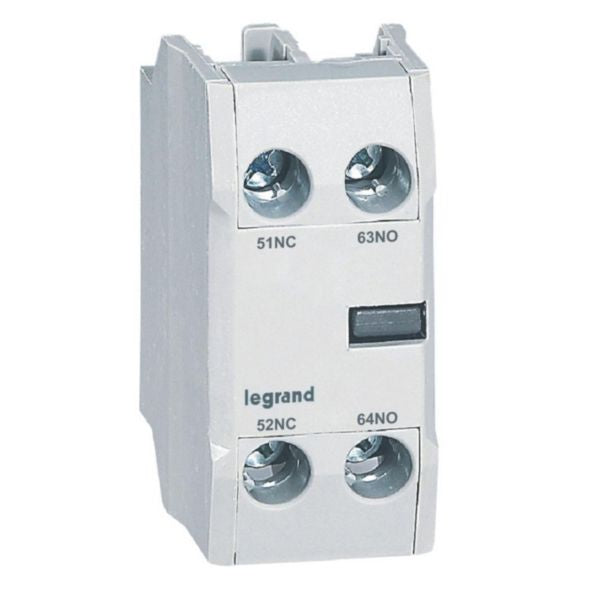

Shop Legrand CTX3 Auxiliary Contact 1NO1NC 16A Front Mounting | 416850 In Iraq Best Prices
Compact CTX³ auxiliary contact block with 1NO+1NC contacts, 16A rated current, front mounting on CTX³ 3P 9A-150A and 4P 40A-135A contactors, screw terminals, IEC 60947-4-1 compliant
The CTX³ Auxiliary Contact 1NO1NC is a compact accessory designed for power contactors, specifically engineered for use with CTX³ 3P models ranging from 9A to 150A and 4P models from 40A to 135A. This auxiliary contact block provides reliable 1NO (normally open) and 1NC (normally closed) contacts with a rated current capacity of 16A, making it ideal for tertiary and industrial installations. The product features mirror-contact NC per IEC 60947-4-1 standard, ensuring compliance with international electrical safety regulations.
This auxiliary contact unit is equipped with screw terminals capable of accommodating wire sizes from 1mm² to 2.5mm², providing flexible installation options for various electrical configurations. The front mounting design allows for easy and secure installation directly onto the contactor, minimizing installation time and complexity. With a minimum switching voltage of 24V DC and a minimum switching current of 10mA, this device is suitable for a wide range of control applications in industrial and tertiary environments.
The product has been designed with environmental consciousness in mind and complies with substance-restriction requirements, making it an eco-friendly choice for modern electrical installations. Its robust construction and adherence to international standards ensure long-term reliability and performance in demanding industrial applications.
Key Features
- Compact auxiliary contact block providing 1NO+1NC configuration with 16A rated current
- Front mounting design for easy installation on CTX³ 3P 9A to 150A and 4P 40A to 135A contactors
- Mirror-contact NC design compliant with IEC 60947-4-1 international standard
- Screw terminals accommodate wire sizes from 1mm² to 2.5mm² for flexible installation
- Minimum switching voltage of 24V DC and minimum switching current of 10mA for reliable operation
- Environmentally conscious design complying with substance-restriction requirements
- Rated operation current of 3A at AC-15 230V for tertiary and industrial applications
Technical Specifications
| Specification |
Value |
| Product Type | Auxiliary Contact Block for Power Contactor |
| Contact Configuration | 1NO + 1NC (1 Normally Open + 1 Normally Closed) |
| Rated Current (Ith) | 16A |
| Rated Operation Current (AC-15 at 230V) | 3A |
| Minimum Switching Voltage | 24V DC |
| Minimum Switching Current | 10mA |
| Terminal Type | Screw Connection |
| Wire Size Capacity | 1mm² to 2.5mm² |
| Mounting Method | Front Fastening/Clip-on |
| Compatible Contactors | CTX³ 3P 9A to 150A and 4P 40A to 135A |
| Contact Type | Mirror-contact NC per IEC 60947-4-1 |
| Standard Compliance | IEC 60947-4-1 |
| Application Type | Tertiary and Industrial Installations |
| Environmental Compliance | RoHS and REACH Compliant |
| Reference Number | 416850 |
| EAN Code | 3414970408389 |
