Compact portable single gas detector with 2-year operational life for CO, H2S, and O2 detection. IP66/IP67 rated, one-button operation, changeable alarms, and advanced safety features for hazardous environments.
The Crowcon Clip Single Gas Detector (SGD) is a robust and easily transportable gas monitoring device specifically engineered for hazardous area detection. Designed for the detection of Carbon Monoxide (CO), Hydrogen Sulphide (H2S), and Oxygen (O2), this compact monitor offers reliable and durable fixed life span monitoring in a maintenance-free package. With a 2-year operational life and over 2900 alarm minutes of battery capacity, the Clip SGD provides continuous protection in the harshest environments.
Featuring one-button operation, the Crowcon Clip SGD is remarkably simple to use, making it ideal for confined spaces and hazardous work environments. The device includes changeable alarm levels to ensure compliance with evolving regulations and company procedures. The integrated docking station with configuration update capability keeps detectors correctly configured and up-to-date without requiring professional service or technician intervention. Its water and dust resistant design (IP66 and IP67 rated) combined with a wide operational temperature range from -30°C to +50°C makes this detector suitable for diverse industrial applications.
The Clip SGD incorporates advanced safety features including visual LED alarms on top, front, and side positions, a 90dB audible alert at 10cm, and vibration alerts to ensure users are immediately notified of hazardous conditions. Event logging capability stores the most recent 30 events for compliance documentation. With UL-913 and CSA certification, ATEX II 1G Ex ia IIC T4 Ga approval, and IECEx compliance, this detector meets rigorous international safety standards and provides peace of mind for professional safety operations.
Key Features
- Water and dust resistant to IP66 and IP67 standards
- Compact and lightweight design for non-intrusive comfortable wearing
- One-button operation for simple and intuitive use
- Changeable alarm levels for regulatory compliance
- 2-year operational life with 2900+ alarm minutes battery capacity
- Visual LED alarms on top, front, and side positions
- 90dB audible alert at 10cm with vibration notification
- Event logging stores 30 most recent events
- Wide temperature range -30°C to +50°C operation
- UL-913 and CSA certified with ATEX II 1G Ex ia IIC T4 Ga approval
- USB IR link for event download and configuration
- Bump test due indication alerts for compliance

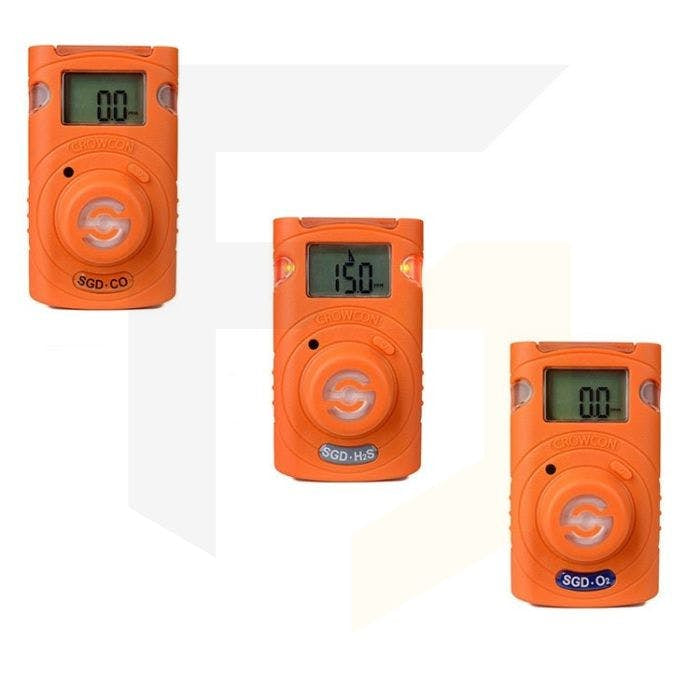

- Available for H2S, CO, or O2 detection
- Docking station compatible for configuration updates
- Maintenance-free operation
Technical Specifications
| Specification |
Value |
| Product Code | CLIP-SGD-B |
| Dimensions | 91 x 54 x 32mm (3.6 x 2.1 x 1.3 inches) |
| Weight | 93g (2.7oz) toxic, 104g (3.7oz) O2 |
| Operational Life | 2 years with 2900+ alarm minutes battery capacity |
| Shelf Life | 6-month shelf life prior to activation |
| Temperature Range | H2S and CO: -30°C to +50°C (-40°F to +122°F), O2: -30°C to +50°C (-30°F to +122°F) |
| Humidity | 15% to 90% non-condensing RH |
| Ingress Protection | IP66 and IP67 |
| Sensor Range | H2S 0-100ppm, CO 0-300ppm, O2 0-30% vol. |
| Alarms | Top, front and side visual LEDs, 90dB audible alert at 10cm, Vibrate |
| Event Logging | Most recent 30 events |
| Self Test | On activation and every 20 hours with continuous automatic battery integrity tests |
| Compliance | EMC Directive 2014/30/EC, FCC CFR 47 Part 15, IECES-003 |
| Certification | UL-913 & CSA-C22.2 No.157, Class 1 Div 1 & 2 Groups A, B, C and D T4, ATEX II 1G Ex ia IIC T4 Ga, IECEx Ex ia IIC T4 Ga |
| Warranty | 2 years from activation |
| Communication | USB IR link for event download and configuration |
