Compact H2S single gas detector with 2-year life, IP66/IP67 water and dust resistance, one-button operation, and changeable alarm levels for hazardous area monitoring.

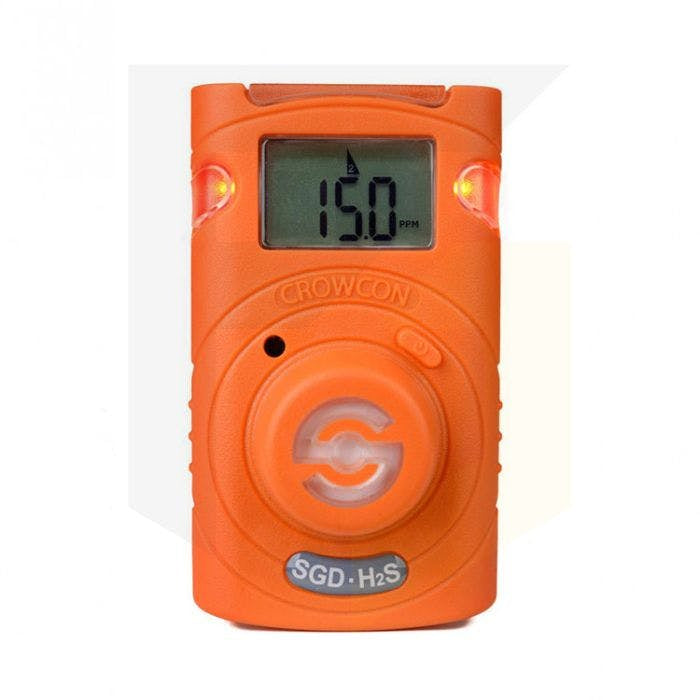

The Crowcon Clip SGD H2S 5/10ppm is a robust and portable single gas detector specifically designed for the detection of hydrogen sulphide (H2S) in hazardous areas and confined spaces. This compact, lightweight monitor offers reliable and durable fixed life span monitoring in a maintenance-free package with a 2-year operational life (exceeding 2900 alarm minutes). The detector features water and dust resistance to IP66 and IP67 standards, making it suitable for harsh and demanding environments. With its one-button operation and non-intrusive design, the Clip SGD is perfect for professionals working in industries where H2S exposure is a significant concern, including oil and gas, wastewater treatment, agriculture, and chemical manufacturing.
Designed with user convenience in mind, the Crowcon Clip SGD features changeable alarm levels to ensure compliance with evolving regulations and company procedures. The device includes a docking station with configuration update capabilities, allowing for easy reconfiguration without requiring service technician intervention. The detector operates across a wide temperature range from -30°C to +50°C (-40°F to +122°F), making it effective in various climatic conditions. Its advanced self-test functionality activates on startup and every 20 hours, with continuous automatic battery integrity testing to ensure reliability.
The Clip SGD provides multiple alarm indicators including top, front, and side visual LEDs, a 90 dB audible alert at 10cm distance, and vibration alerts to ensure users are immediately notified of hazardous gas levels. The device features event logging capability storing the most recent 30 events for compliance documentation. With UL-913 and CSA-C22.2 No.157 certification, along with ATEX II 1G Ex ia IIC T4 Ga and IECEx Ex ia IIC T4 Ga approvals, this detector meets international safety standards. The 2-year warranty from activation and 6-month shelf life prior to activation make this an excellent choice for organizations requiring dependable gas detection solutions.
Key Features
- Water and dust resistant to IP66 and IP67 standards for harsh environments
- Compact and lightweight design - non-intrusive and comfortable to wear
- One-button operation making it simple to use in hazardous areas
- Bump test due indication alerts user when monitor requires compliance testing
- Changeable alarm levels for compliance with evolving regulations
- Multiple alarm indicators: visual LEDs, 90dB audible alert, and vibration
- 2-year operational life with exceeding 2900 alarm minutes
- Wide temperature range operation from -30°C to +50°C
- Event logging with storage of most recent 30 events
- USB IR link for event download and configuration updates
Technical Specifications
| Specification |
Value |
| Product Code | CL-H-5 |
| Gas Type | Hydrogen Sulphide (H2S) |
| Sensor Range | H2S 0-100ppm |
| Alarm Levels | 5ppm (low alarm) / 10ppm (high alarm) |
| Dimensions | 91 x 54 x 32mm (3.6 x 2.1 x 1.3 inches) |
| Weight | 93g (2.7oz) for toxic gas version |
| Operating Temperature | -30°C to +50°C (-40°F to +122°F) |
| Operating Humidity | 15% to 90% non-condensing RH |
| Ingress Protection Rating | IP66 and IP67 |
| Alarm Indicators | Top, front and side visual LEDs, 90 dB audible alert at 10cm, vibrate function |
| Battery Life | 2 years with exceeding 2900 alarm minutes |
| Shelf Life | 6-month shelf life prior to activation |
| Event Logging | Most recent 30 events stored |
| Self Test | On activation and every 20 hours with continuous automatic battery integrity tests |
| Certifications | UL-913, CSA-C22.2 No.157, ATEX II 1G Ex ia IIC T4 Ga, IECEx Ex ia IIC T4 Ga |
| Compliance Standards | EMC Directive 2014/30/EC, FCC CFR 47 Part 15, IECES-003 |
| Warranty | 2 years from activation |
| Communication Interface | USB IR link for event download and configuration |
| Application Areas | Hazardous areas, confined spaces, oil and gas, wastewater treatment, agriculture, chemical manufacturing |
| Maintenance | Maintenance-free with docking station configuration updates |
Order Crowcon Clip SGD H2S Single Gas Detector 5/10ppm at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
