The CISA 11823-80-2 is a left hand inward opening vertical electric rim lock designed for garage doors, automated gates, and swinging gates that need secure electrical release with mechanical key operation. It is suitable for surface mounting on external gates and door applications where reliable fail locked security is required.
This electric lock operates on 12V AC and includes a key override rim cylinder, allowing access by key when required. It also supports exit by internal key cylinder, making it practical for gate and garage installations that need controlled entry from outside and secured operation from inside.

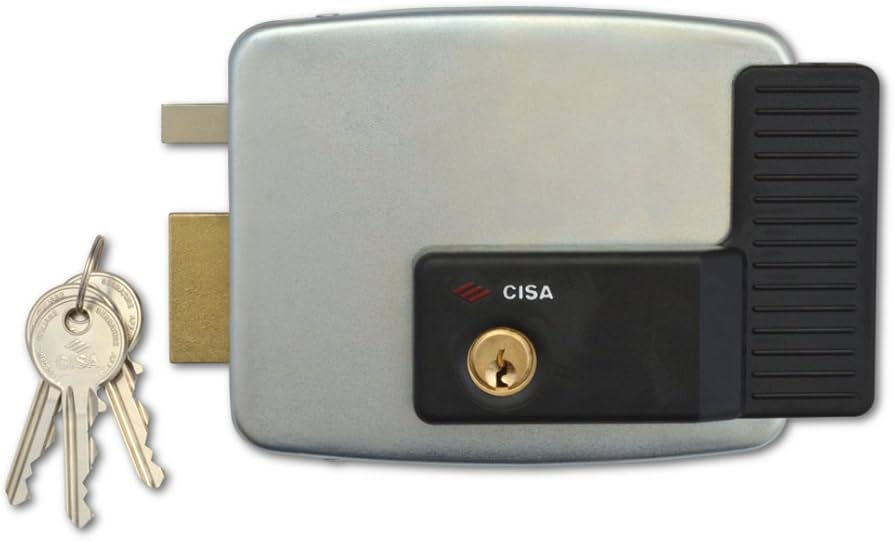

The lock comes in a galvanized finish for better durability in gate applications and is supplied with a fixing plate and 3 keys. With an 80 mm backset and a vertical body size of 130 x 111 x 35 mm, the CISA 11823-80-2 is a dependable option for installers, access control technicians, maintenance teams, and property owners.
Features
- Electric rim lock for garage doors, gates, and swinging gate applications
- Left hand model designed for inward opening installations
- Surface mounted rim fitting for practical gate and door installation
- Fail locked operation keeps the gate locked when power is not applied
- 12V AC operation suitable for common access control systems
- Key override rim cylinder for manual access when needed
- Internal key cylinder exit for controlled inside operation
- Galvanized finish for durable gate use
- Includes fixing plate for installation
- Supplied with 3 keys
- 80 mm backset for compatible gate and door layouts
- Suitable for access control, gate automation, and garage door security
Specifications
| Specification |
Details |
| Brand |
CISA |
| Model |
11823-80-2 |
| SKU |
11823-80-2 |
| Product Type |
Electric rim gate lock |
| Installation Type |
Vertical surface mounted rim lock |
| Handing |
Left hand |
| Opening Direction |
Inward opening |
| Operation |
Fail locked |
| Suitable For |
Garage doors, external gates, swinging gates |
| Voltage |
12V AC |
| Current Consumption |
1.6A |
| Backset |
80 mm |
| Body Dimensions |
130 x 111 x 35 mm |
| Finish |
Galvanized |
| Key Override |
Yes |
| Exit Function |
Internal key cylinder |
| Keys Supplied |
3 keys |
| Fixing Plate |
Included |
| Pack Quantity |
1 piece |
| Barcode |
8015345072744 |
| Manufacturer Reference |
11823-80-2 |
| Approximate Weight |
1.99 kg |
