Description

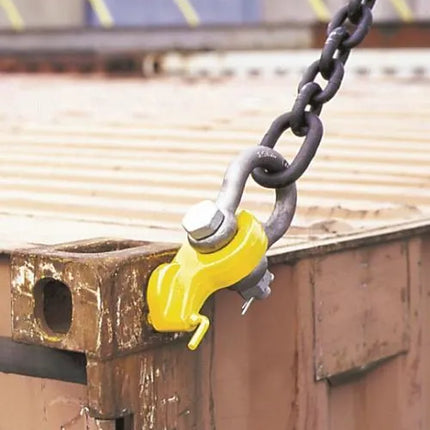

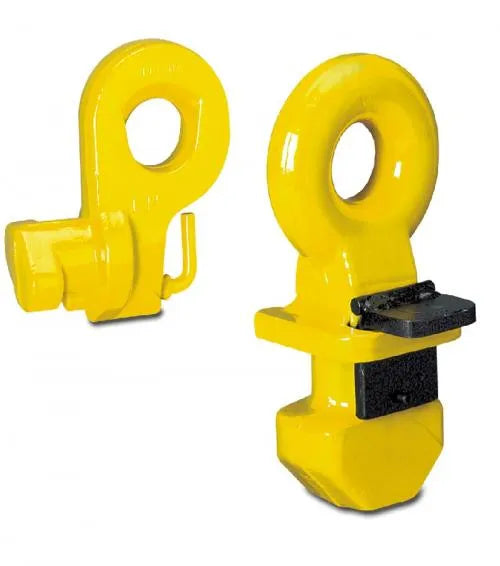

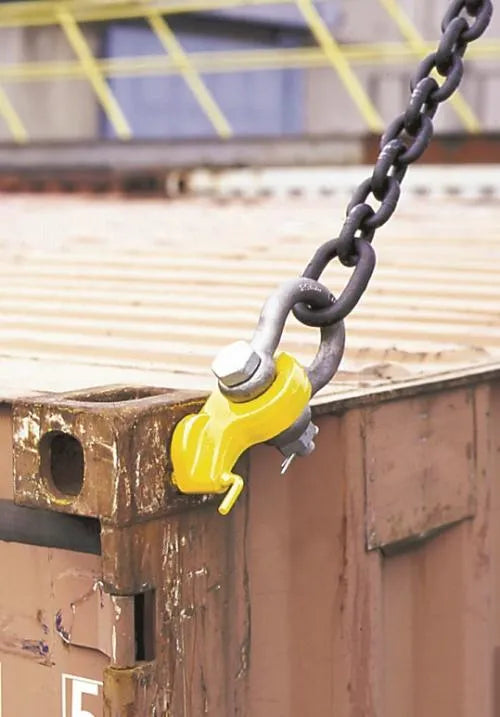

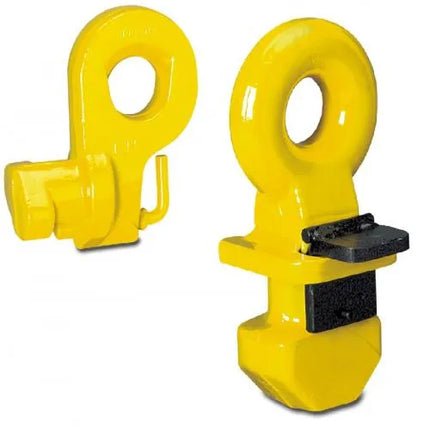

Camlok container lifting lugs offer a secure and efficient method to lift ISO shipping containers using side-mounted CLB lugs (32–50 t) or top-mounted CLT lugs (up to 56 t). Supplied as a set of four, each lug is hand-marked (L/R) and designed for rapid insertion and locking, with a spring-bolt mechanism on CLB models to prevent unintended release. Manufactured in the UK, meeting high safety and quality standards.

🔹 Key Features:

  • Flexible lashing/lifting for containers

  • CLB: side or bottom mount, spring-loaded bolt

  • CLT: top mount, 90° turn locking

  • Supplied as 4-piece sets (L/R pairs)

  • Clear left/right labels

  • Design safety factor 4:1; meets UK/US spec

  • Weight: ~18 kg (CLB), ~28 kg (CLT)

  • Not for 4-leg slings; use with spreader frame and single-leg slings

📊 Technical Specifications

Specification CLB (Side) CLT (Top)
Working Load Limit (WLL) 32 t @ ≤50°; 40 t @ ≤36°; 50 t vertical 56 t vertical
Weight per Lug ~18 kg ~28 kg
Mounting Type Side/bottom ISO corner pockets Top ISO corner pockets
Locking Mechanism Spring-loaded bolt 90° twist to lock
Safety Design Factor 4:1; meets UK/US military specs Same
Origin Forged steel, made in UK Forged steel, made in UK

Read more

Product form

Camlok Container Lifting Lugs – Set of 4 (CLB Side or CLT Top, 32–56 t)

Camlok

2,668,000 IQD

        Description

        Camlok container lifting lugs offer a secure and efficient method to lift ISO shipping containers using side-mounted CLB lugs (32–50 t) or top-mounted CLT lugs (up to 56 t). Supplied as a set of four, each lug is hand-marked (L/R) and designed for rapid insertion and locking, with a spring-bolt mechanism on CLB models to prevent unintended release. Manufactured in the UK, meeting high safety and quality standards.

        🔹 Key Features:

        • Flexible lashing/lifting for containers

        • CLB: side or bottom mount, spring-loaded bolt

        • CLT: top mount, 90° turn locking

        • Supplied as 4-piece sets (L/R pairs)

        • Clear left/right labels

        • Design safety factor 4:1; meets UK/US spec

        • Weight: ~18 kg (CLB), ~28 kg (CLT)

        • Not for 4-leg slings; use with spreader frame and single-leg slings

        📊 Technical Specifications

        Specification CLB (Side) CLT (Top)
        Working Load Limit (WLL) 32 t @ ≤50°; 40 t @ ≤36°; 50 t vertical 56 t vertical
        Weight per Lug ~18 kg ~28 kg
        Mounting Type Side/bottom ISO corner pockets Top ISO corner pockets
        Locking Mechanism Spring-loaded bolt 90° twist to lock
        Safety Design Factor 4:1; meets UK/US military specs Same
        Origin Forged steel, made in UK Forged steel, made in UK
