Professional multi-gas detector with alkaline battery for detecting LEL, O2, H2S, and CO in confined spaces and hazardous areas. Features SureCell technology, rugged concussion-proof design, and comprehensive alarm system.

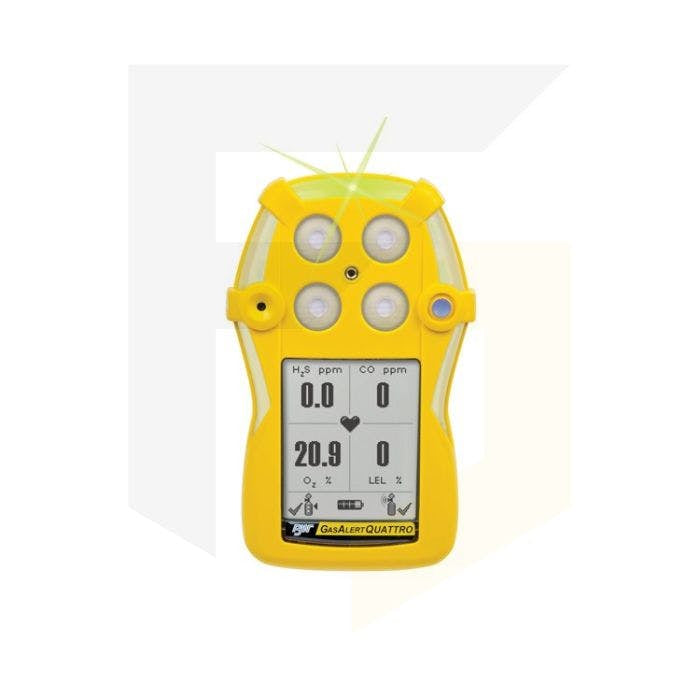

The BW GasAlert Quattro is a professional-grade multi-gas detector designed for reliable detection of four critical gases in industrial environments. This model features an alkaline battery power system and comes equipped with filtered LEL sensors alongside dedicated sensors for oxygen (O2) depletion, hydrogen sulphide (H2S), and carbon monoxide (CO). Ideal for confined space entry and hazardous area monitoring, this detector provides real-time gas concentration data with exceptional accuracy and reliability.

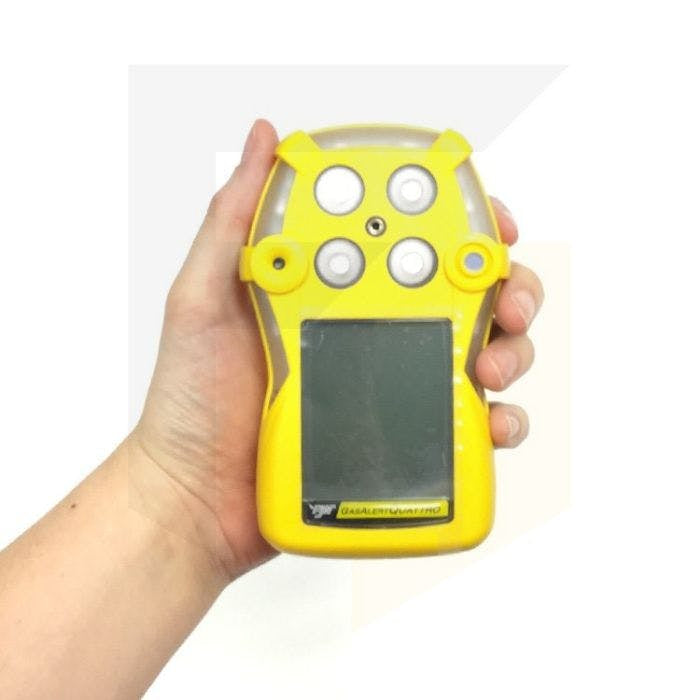

Built with durability in mind, the GasAlert Quattro features an integrated concussion-proof boot that protects the device from impacts and drops common in industrial settings. Despite its rugged construction, the unit remains lightweight and compact at just 338 grams, making it comfortable to wear and carry throughout extended work shifts. The bright yellow housing ensures high visibility on job sites, and the device operates effectively across a wide temperature range from -20°C to +50°C.
Equipped with SureCell sensor technology, this multi-gas detector offers enhanced resistance to common industrial cross-sensitive gases including methanol and ethanol, particularly in the CO and H2S sensors. The unit provides visual, audible (95 dB), and vibrating alarms with multiple alarm levels including Low, High, STEL, TWA, and Over Limit settings. With datalogging and event logging capabilities, comprehensive LCD display information, and full-function self-test capabilities, the GasAlert Quattro delivers professional-grade safety monitoring with minimal training requirements.
Key Features
- Real-time LCD display showing gas concentration levels and operating information for onsite auditing
- Four-gas detection capability: LEL (0-100%), O2 (0-30%), H2S (0-200 ppm), CO (0-1000 ppm)
- SureCell sensor technology with enhanced resistance to cross-sensitive gases like methanol and ethanol
- Integrated concussion-proof boot for impact protection with lightweight compact design (338g)
- Multiple alarm types: visual (six red LEDs), audible (95 dB), and vibrating with Low, High, STEL, TWA, and Over Limit settings
Technical Specifications
| Specification |
Value |
| Sensor Ranges | LEL: 0-100% LEL (0.5% v/v), O2: 0-30%, CO: 0-1000 ppm, H2S: 0-200 ppm |
| Resolution | LEL: 1% (0.1%), O2: 0.1%, CO: 1 ppm, H2S: 0.1 ppm |
| Dimensions | 5.1 x 3.2 x 1.9 inches / 13.0 x 8.1 x 4.7 centimeters |
| Weight | 11.92 ounces / 338 grams |
| Operating Temperature | -4 to +122°F / -20 to +50°C |
| Operating Humidity | 10% - 100% RH (non-condensing) |
| Battery Life | 14 hours at +68 to +122°F / +20 to +50°C |
| Alarm System | Visual (six red LEDs), vibrating, audible (95 dB) with Low, High, STEL, TWA, and Over Limit settings |
| IP Rating | IP66/IP67 |
| Certifications | Class I Div. 1 Gr. A, B, C, D; ATEX: Xg II 1 G Ga Ex ia IIC T4; IECEx: Ga Ex ia IIC T4; BR-Exia IIC T4 |
| EMI/RFI Compliance | Complies with EMC Directive 2004/108/EC |
| Warranty | Full two-year warranty including all sensors |
| Sensor Technology | SureCell sensor technology with enhanced cross-gas immunity |
| Housing Color | Bright yellow with integrated concussion-proof boot |
| Battery Type | Alkaline battery pack with three AA batteries |
Order BW GasAlert Quattro LEL O2 H2S CO Gas Detector Alkaline at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
