Serviceable multi-gas detector with simultaneous detection of LEL, O2, H2S, and CO. Features Bluetooth connectivity, 40-day battery life, IP 66/68 rating, and three-year warranty for professional gas detection.

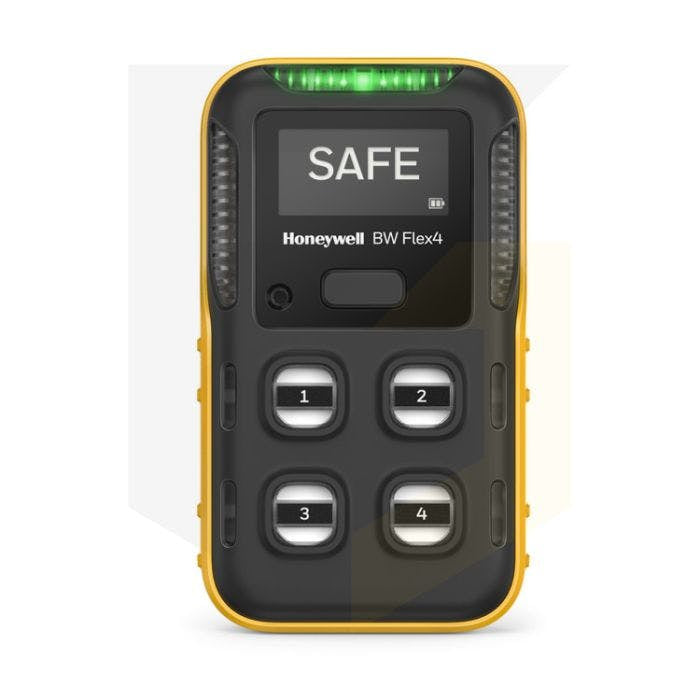

The BW Flex4 is a serviceable and diffusion multi-gas detector capable of simultaneously detecting LEL (Catalytic), Oxygen (O2), Hydrogen Sulphide (H2S), and Carbon Monoxide (CO). This robust and reliable gas detector is engineered to withstand tough environments while maintaining excellent performance and accuracy. The detector features one-button operation for straightforward use and comes equipped with a USB charging cable for convenient charging cycles of approximately 4.5 hours.
With a battery runtime of up to 40 days at 8 hours of daily use, the BW Flex4 minimizes downtime and keeps workers productive. The device performs automatic self-diagnostics on power-up and continues to perform analog sensor diagnostics every 10 minutes, ensuring continuous reliability. It features real-time readings with an Intelliflash compliance light that displays green, amber, or red status indicators for immediate visual feedback.
The BW Flex4 is equipped with advanced connectivity features including Bluetooth Low Energy (BLE) capability, allowing users to connect with Honeywell's Safety Communicator App and Device Configurator App for enhanced monitoring and data management. It supports datalogging of up to 50 alarm events and continuous datalogging for 45 days at 15-second intervals. The detector holds a three-year warranty for sensors and the unit itself, and is certified to ATEX and IEC Ex standards with CSA approval pending.
Key Features
- Simultaneous detection of LEL (Catalytic), O2, H2S, and CO gases
- Bluetooth Low Energy connectivity with Honeywell Safety apps
- One-button operation with simple, straightforward design
- Datalogging capability with 50 alarm events and 45-day continuous logging
- IP 66/68 rated for dust and water resistance in harsh environments
- Intelliflash compliance light with green, amber, and red status indicators
- Automatic self-diagnostics every 10 minutes for sensor and circuitry
- USB charging with 4.5-hour charge time and 40-day battery runtime
- Compatible with IntelliDoX calibration station
- Three-year warranty on sensors and detector unit
Technical Specifications
| Specification |
Value |
| Sensor Type | Catalytic LEL, Electrochemical O2, H2S, and CO |
| LEL Sensor Range | 0 to 100% LEL with 1% LEL resolution |
| Oxygen Range | 0 to 30% Vol with 0.1% Vol resolution |
| H2S Range | 0 to 200ppm with 1ppm resolution (configurable to 0.1ppm) |
| CO Range | 0 to 2000ppm with 1ppm resolution |
| Operating Temperature Range | -40°C to 60°C (-40°F to 140°F) for most sensors; -20°C to 60°C with Catalytic LEL |
| Humidity Range | 5% to 95% RH |
| Dimensions | 108.2 mm x 61.5 mm x 43.2 mm (4.29 in x 2.44 in x 1.7 in) with Alligator Clip |
| Weight | 189 g (6.7 oz) with Catalytic LEL and Alligator Clip |
| Battery Life | 40 days at 8 hours daily use; 15 hours with Catalytic LEL |
| Charging Time | Approximately 4.5 hours via USB |
| Datalogging | 50 alarm events; continuous datalogging up to 45 days at 15-second intervals |
| Alarm Indicators | Visual (6 Main Alarm LEDs and 4 sensor LEDs), Audible (95 dBA at 10cm), Vibrating |
| Connectivity | Bluetooth Low Energy (BLE) with Honeywell Safety Communicator and Device Configurator Apps |
| IP Rating | IP 66/68 |
| Certifications | ATEX, IEC Ex, FCC ID, IC, CSA approval pending |
| Warranty | Three-year warranty for sensors and detector |
| Product Code | CPD-W6X1H1M1-Y-00 |
| Sensor Lifetime | 5 years or more |
| Calibration Compatibility | Compatible with IntelliDoX calibration station |
