Disposable 2-year multi-gas detector for LEL, O2, CO, and H2S with maintenance-free operation, real-time LCD display, and ATEX certification.

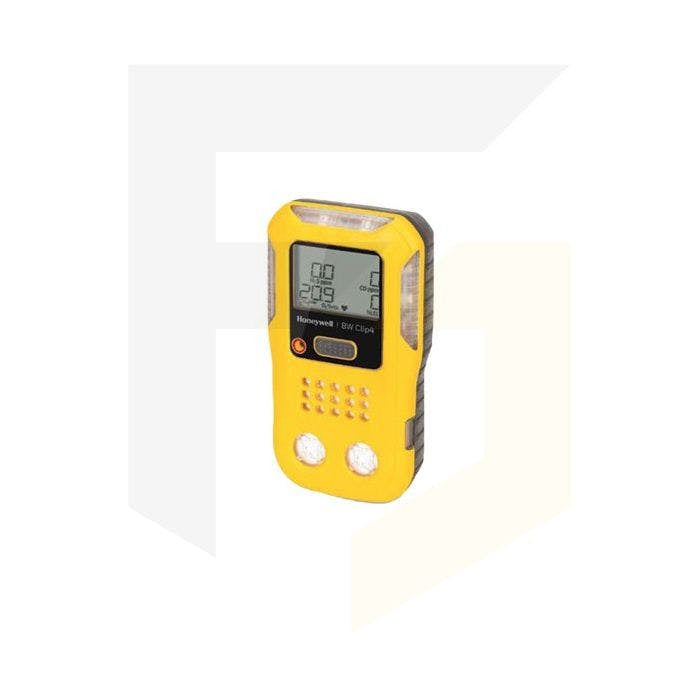

The BW Clip4 is a revolutionary disposable multi-gas detector designed for continuous monitoring of four critical gases: LEL (Lower Explosive Limit), oxygen (O2), carbon monoxide (CO), and hydrogen sulphide (H2S). This maintenance-free detector operates continuously for a full 2-year lifespan without requiring charging, making it an ideal solution for workers in hazardous environments who need reliable, hassle-free gas detection. The Clip4 features a robust construction with a built-in concussion-proof boot and is rated IP68 for durability in challenging industrial conditions.
Once activated, the BW Clip4 provides real-time gas concentration readings on its LCD screen, allowing users to monitor exposure levels instantly. The detector performs automatic self-tests every 24 hours to verify sensor functionality, battery status, circuit integrity, and alarm systems. It features multiple alarm types including visual, vibrating, and audible alerts at 95 dB, with separate thresholds for low, high, TWA (Time-Weighted Average), STEL (Short-Term Exposure Limit), and over-limit conditions. The flashing red non-compliance indicator warns users when bump testing is overdue, ensuring regulatory compliance and worker safety.
The BW Clip4 is compatible with the IntelliDoX docking system for enhanced data management and can log the 70 most recent events for comprehensive exposure tracking. Users can customize settings including STEL periods, calibration span levels, bump test intervals, combustible gas measurements, individual sensor activation, and stealth mode operation. With its lightweight design, one-button operation, and comprehensive safety features, the BW Clip4 is ATEX and IECEx certified, making it suitable for use in explosive atmospheres. The detector comes with a 2-year warranty covering all sensors and the battery.
Key Features
- Maintenance-free disposable design with 2-year continuous operation
- Detects four critical gases: LEL, O2, CO, and H2S with real-time LCD display
- Robust IP68-rated construction with concussion-proof boot for durability
- Multiple alarm types: visual, vibrating, and audible (95 dB) with customizable thresholds
- ATEX and IECEx certified for use in explosive atmospheres
- Automatic 24-hour self-tests for sensor, battery, circuit, and alarm verification
- Compatible with IntelliDoX docking system for data management
- Logs 70 most recent events for comprehensive exposure tracking
- Customizable settings including STEL periods, calibration levels, and sensor activation
- Non-compliance indicator warns when bump testing is overdue
- One-button operation for ease of use
- Lightweight and portable design
- 2-year warranty covering all sensors and battery
Technical Specifications
| Specification |
Value |
| Product Code | BWC4-Y-E |
| Detector Type | Disposable Multi-Gas Detector |
| Gases Detected | LEL, O2, CO, H2S |
| LEL Measuring Range | 0-100% |
| H2S Measuring Range | 0-100 ppm |
| O2 Measuring Range | 0-25% Vol |
| CO Measuring Range | 0-1000 ppm |
| LEL Resolution | 1% LEL |
| H2S Resolution | 1 / 0.1 ppm |
| O2 Resolution | 0.1% vol |
| CO Resolution | 1 ppm |
| Dimensions | 12.0 x 6.8 x 3.2 cm (4.7 x 2.7 x 1.3 inches) |
| Weight | 233g (8.2 oz) |
| Operating Temperature | -20 to +50°C (-4 to +131°F) |
| Humidity Range | 5-95% RH (non-condensing) continuous |
| Alarm Types | Visual, vibrating, audible (95 dB); low, high, TWA, STEL, OL (over limit) |
| Battery Life | 2 years, continuous operation |
| Certifications | Class I, Div 1, Group A, B, C, D; Class I, Zone 0, Group IIC; ATEX: II 1G Ex ia IIC T4 Ga; IECEx: Ex ia IIC T4 Ga; CE Compliant |
| Warranty | 2 years, including sensors and battery |
| Display | LCD Screen with real-time gas concentration readings |
| Self-Test Interval | Every 24 hours |
| Event Logging | 70 most recent events |
| Protection Rating | IP68 |
| Construction | Robust with concussion-proof boot |
| Maintenance | Maintenance-free, no charging required |
| Calibration Recommendation | Every 6 months |
| Docking System Compatibility | IntelliDoX docking system |
Order BW Clip4 Multi Gas Detector LEL O2 CO H2S at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
