Reliable 2-year disposable CO detector with 20/100ppm alarm levels, water-resistant design, and no maintenance requirements. Features visual, audible, and vibrating alarms with automatic event logging.

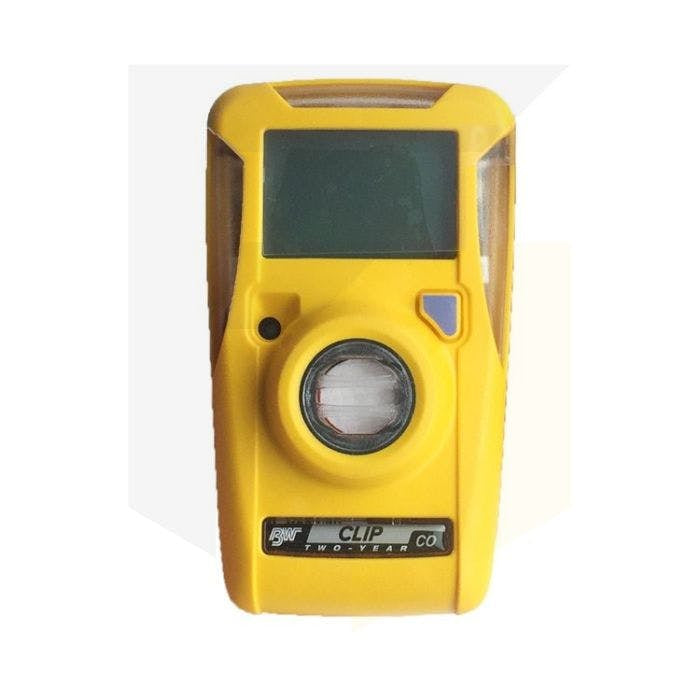

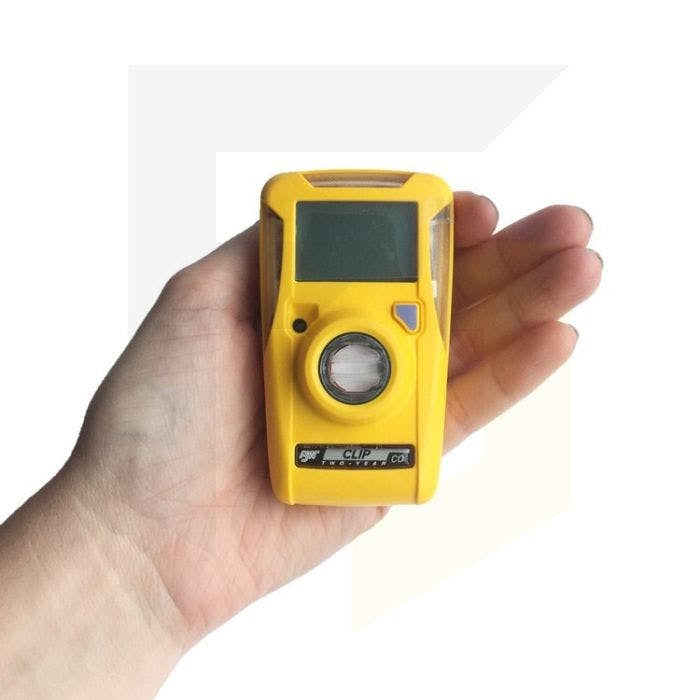

The BW Clip is a reliable and cost-effective single gas detector from BW Technologies designed specifically for Carbon Monoxide (CO) detection with alarm set points of 20/100ppm. This 2-year disposable gas detector comes with a 2-year warranty from activation and requires no calibration, sensor replacement, battery replacement, or battery charging. The device features a highly visible yellow concussion-proof housing with a color-coded label indicating CO detection, making it ideal for compliance and protection in industrial applications and hazardous environments.
This compact and lightweight detector is water-resistant with IP 66/67 ingress protection rating, making it suitable for challenging work environments. The BW Clip automatically logs 35 most recent gas events and bump test results which can be downloaded for record-keeping and compliance documentation. The display shows a countdown of the detector's lifetime in months rather than ppm readings, ensuring users are always aware of the device's remaining operational time. The detector features visual, audible (95dB), and vibrating alarms for low and high alarm conditions.
The BW Clip is compatible with the Intellidox system from BW Technologies and features Surecell's unique dual reservoir sensor design that improves performance and reliability. With easy one-button operation, automatic self-test functions that check operating conditions every 24 hours, and a stainless steel crocodile clip for secure attachment to clothing or equipment, this detector provides dependable CO detection without the maintenance burden of traditional reusable monitors. The device is certified for hazardous locations including Class I, Division 1 and ATEX Zone 0 environments.
Key Features
- 2-year disposable design with no calibration or battery replacement needed
- Water-resistant with IP 66/67 ingress protection for harsh environments
- Visual, audible (95dB), and vibrating alarms for multiple alert modes
- Automatic event logging of 35 most recent gas events and bump test results
- Surecell dual reservoir sensor design for improved performance and reliability
- One-button operation with automatic 24-hour self-test function
- Compatible with Intellidox system from BW Technologies
- Stainless steel crocodile clip for secure attachment
- Highly visible yellow concussion-proof housing
- ATEX and CUL certified for hazardous location use
Technical Specifications
| Specification |
Value |
| Product Type | Single Gas Detector (Carbon Monoxide) |
| Gas Detection | Carbon Monoxide (CO) |
| Alarm Set Points | 20/100 ppm |
| Dimensions | 1.6 x 2.0 x 3.4 inches (4.1 x 5.0 x 8.7 cm) |
| Weight | 3.2 oz (92g) |
| Operating Temperature Range | -22 to +122°F (-30 to +50°C) |
| Humidity Range | 5% - 95% RH (non-condensing) |
| Alarm Types | Visual, Audible (95dB), Vibrating - low and high |
| Battery Life | 2 years typical |
| Ingress Protection Rating | IP 66/67 |
| Self-Test Function | One internal diagnostic test every 24 hours (activated detectors) |
| Warranty | 2 years from activation (3 years with hibernation feature) plus 1 year shelf life |
| Certifications | CUL US (Class I, Div. 1, Gr. A, B, C, D; Class I, Zone 0, Gr. IIC), ATEX (CE Ex 0539 II 1G), IECEx, CE Conformity |
| Event Logging | Automatic logging of 35 most recent gas events and bump test results |
| Display | Countdown of detector lifetime in months |
| Sensor Technology | Surecell dual reservoir electrochemical sensor |
| Attachment Method | Stainless steel alligator clip |
| Housing Material | Concussion-proof yellow plastic |
| Maintenance | No calibration, sensor replacement, or battery charging required |
| Compatibility | Compatible with Intellidox system from BW Technologies |
Order BW Clip CO 20/100 ppm 2 Year Disposable Gas Detector at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
