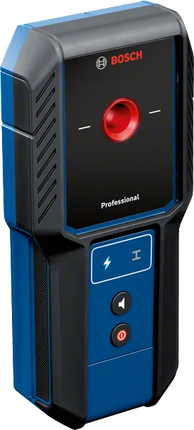

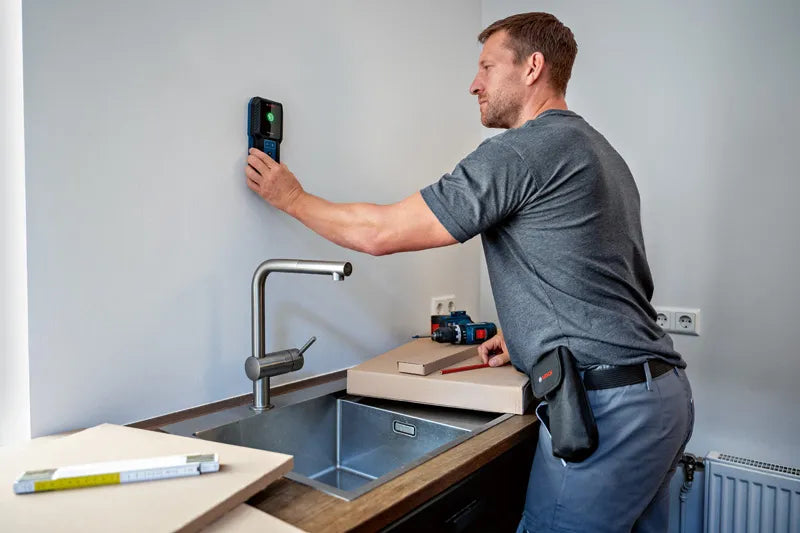

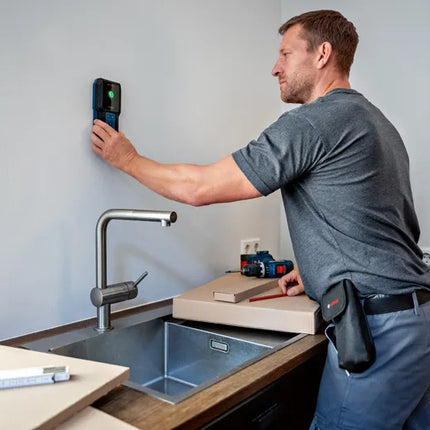

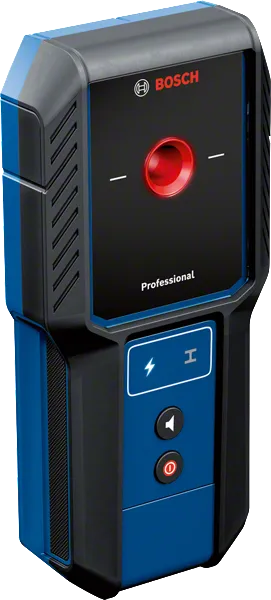

The Bosch GMS 100-23 Professional Detector is a practical and reliable wall scanner designed to help professionals safely locate hidden objects before drilling, cutting, or installation work. Whether working on renovations, electrical installations, plumbing projects, cabinet mounting, or HVAC systems, this detector helps reduce the risk of damaging concealed utilities and structures.
Featuring intuitive one-mode operation, the GMS 100-23 allows users to quickly detect magnetic metals, non-magnetic metals, and live electrical cables hidden behind walls. Detection results are displayed through a color-coded indicator system and marking hole, making it easy to identify the object location and mark drilling points accurately.
Built for demanding construction environments, the detector is equipped with IP54-rated dust and splash-water protection and a shock-absorbing rubber housing. Its compact and lightweight design provides comfortable operation while maintaining durability on busy jobsites.
The Bosch GMS 100-23 identifies whether the detected object is a metal object or a live electrical cable, providing greater confidence and safety during installation and renovation work.
Features
- Detects magnetic and non-magnetic metals hidden in walls

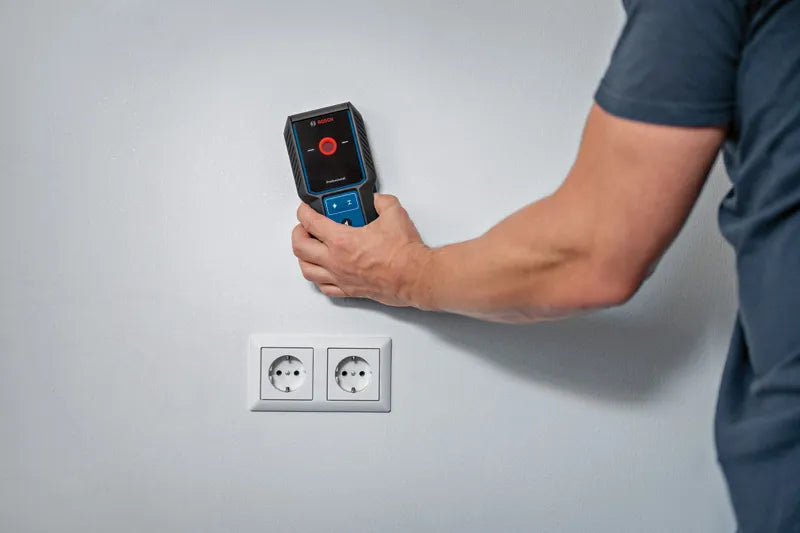

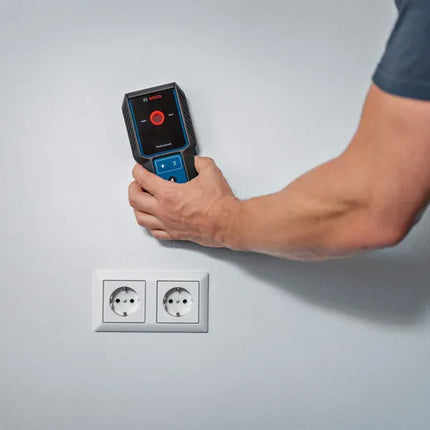

- Locates live electrical cables before drilling
- Maximum detection depth up to 100 mm
- Intuitive one-mode operation for simple use
- Color-coded detection indicator for quick identification
- Integrated marking hole for precise marking
- Material identification function
- IP54-rated dust and splash-water protection
- Shock-absorbing rubber housing for jobsite durability
- Lightweight and ergonomic design
- Suitable for renovation, electrical, plumbing, HVAC, and installation work
- Multiple battery power options available
Specifications
| Specification |
Details |
| Brand |
Bosch Professional |
| Model |
GMS 100-23 |
| Order Number |
0601081800 |
| Product Type |
Detector |
| Maximum Detection Depth |
100 mm |
| Detection Depth Magnetic Metal |
80 mm |
| Detection Depth Non-Magnetic Metal |
100 mm |
| Detection Depth Live Cables |
50 mm |
| Detectable Objects |
Magnetic Metals, Non-Magnetic Metals, Live Cables |
| Material Identification |
Metal, Live Object |
| Protection Rating |
IP54 |
| Power Supply |
2 × 1.5V LR6 AA Batteries |
| Alternative Power Supply |
2 × 1.2V HR6 AA Batteries |
| Alternative Power Supply |
Bosch BA 3.7V 1.0Ah Li-Ion Battery |
| Additional Function |
Marking Hole |
| Weight |
Approx. 0.28 kg |
| Dimensions |
33 × 86 × 186 mm |
| Housing |
Shock-Absorbing Rubber Casing |
