Advanced connected multi-gas detector with up to 5 gas detection, lone worker monitoring, push-to-talk communication, and real-time cloud connectivity for hazardous work environments.

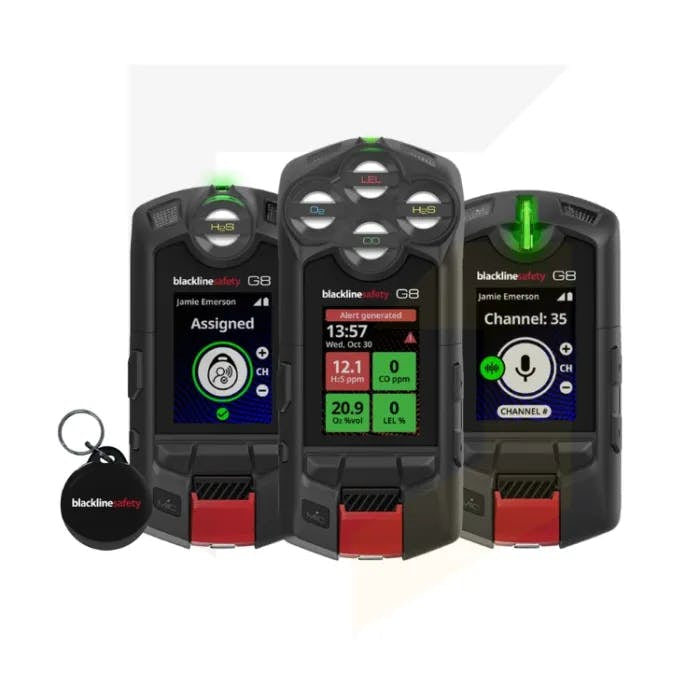

The Blackline Safety G8 is an advanced connected multi-gas detector that revolutionizes personal gas detection by combining up to 5 simultaneous gas detection capabilities, lone worker monitoring, push-to-talk communication, and real-time cloud connectivity in a single intrinsically safe wearable device. As the successor to the Blackline G7c, the G8 features a larger 64-colour backlit display, a powerful 35-lumen flashlight, and innovative NFC TagAssign™ technology for instant device assignment at shift start.
The G8 seamlessly connects to the Blackline Live cloud platform over 4G LTE, providing live gas readings, worker location tracking, and safety alerts in real time. It eliminates the need to carry separate gas detection, lone worker, and radio devices, streamlining worker safety protocols. The detector features built-in push-to-talk radio, emergency voice calling, and text messaging capabilities, enabling workers to communicate effectively without carrying additional two-way radios. Dual-band GNSS/GPS provides location accuracy within one metre, ensuring precise worker tracking.
The G8 is compatible with three cartridge types - single-gas diffusion, multi-gas diffusion, and multi-gas pump - for various work environments including confined space pre-entry work. It is suitable for use across multiple industries including oil and gas, utilities, water and wastewater, fire and hazmat, petrochemical, and renewable energy sectors. The device is protected by more than a dozen patents and offers automated compliance reporting with bump test and calibration records, historical trend data for incident investigation, and 24/7 monitoring capabilities via your own control room, Blackline SOC, or global ARC partners.
Key Features
- Up to 5 simultaneous gas detection with swappable cartridges
- IP67 rated for complete dust and water immersion protection
- Intrinsically safe for use in hazardous areas
- 64-colour backlit display with 35-lumen flashlight
- 4G LTE cloud connectivity with real-time monitoring and alerts
- Built-in push-to-talk radio and emergency voice calling
- NFC TagAssign™ for instant device assignment
- Dual-band GNSS/GPS with one-metre location accuracy
- 18-hour battery life with 4-hour charge time
- Automated compliance reporting with bump test records
Technical Specifications
| Specification |
Value |
| Material | Polycarbonate over-moulded with static dissipative thermoplastic elastomer (TPE) |
| Dimensions (Standard Cartridge) | 122 x 65 x 42 mm (4.8" x 2.56" x 1.65") |
| Weight (Standard Cartridge) | 207 g (7.30 oz) |
| Sensors | Up to 4 sensors detecting up to 5 gases simultaneously with swappable cartridges |
| Gas Detection Types | Single-gas diffusion, multi-gas diffusion, multi-gas pump cartridges |
| IP Rating | IP67 - complete dust and water immersion protection |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -30°C to +60°C (-22°F to +140°F) |
| Battery Type | Rechargeable Li-ion 1350 mAh |
| Battery Life | 18 hours at 20°C in diffusion mode with standard cartridge under normal connectivity |
| Charge Time | 4 hours |
| Display | 2.13" 240 x 320 pixel graphical, 64-colour LCD with front lighting |
| Flashlight | 5000K CCT, 35 lumens |
| Sound Level | ~95 dB @ 30 cm |
| Cellular Connectivity | 4G LTE, 3G UMTS, 2G GSM with multiple bands |
| Location Technology | Multi-constellation GNSS (GPS, Galileo, GLONASS, QZSS, BeiDou) with dual-band L1 and L5 |
| Bluetooth | Complies with Bluetooth Core Specification version 4.2 |
| NFC | Tag Reading at 13.56 MHz |
| Languages Supported | English, French, Spanish, German, Italian, Dutch, Portuguese |
| Certifications | Class I Division 1 Group A, B, C, D T4; Ex ia IIC T4 Ga; ATEX; IECEx; CE/RoHS |
| Warranty | 2 years on base, cartridge and sensors with option to extend to 5 years |
| Compatible Accessories | Blackline Safety G8 Dock for charging and calibration, Remote Speaker Microphone, Location Beacons |
| Humidity Range | 15–90% RH non-condensing |
| Wireless Updates | Over-the-air device configurations and firmware upgrades |
Order Blackline Safety G8 Connected Multi-Gas Detector at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
