Premium all-in-one TV-R-SAT multimedia socket with tool-less installation, minimal signal attenuation, and professional glossy anthracite finish. Features marked terminals, protective shell, and compatibility with both plastic and metal mounting boxes.

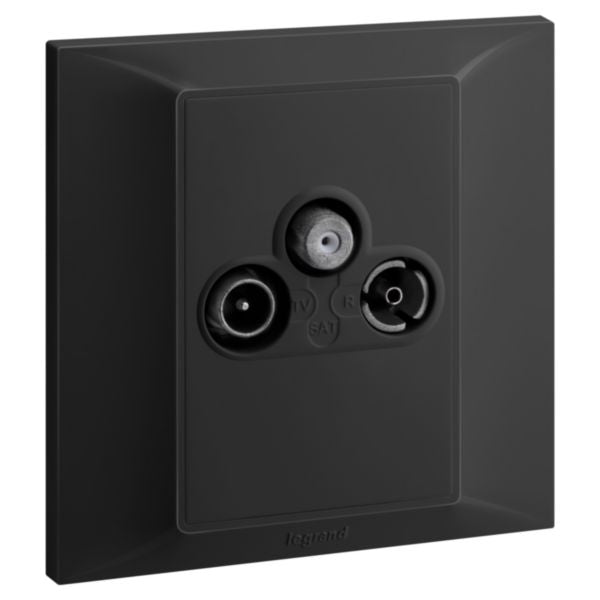

The Belanko S TV-R-SAT socket anthracite is a premium multimedia outlet designed for comprehensive home entertainment connectivity. This all-in-one socket combines television, radio, and satellite connections in a single elegant unit, featuring marked terminals for easy identification and tool-less installation. The product delivers exceptional performance with minimal attenuation loss of less than 1.5 dB, ensuring superior signal quality for all your multimedia applications.
Manufactured by Legrand under the Belanko S range, this flush-mounted socket features a sophisticated glossy finish that complements modern interior designs. The socket is equipped with a TV 9.5mm male connector, radio 9.5mm female connector, and SAT with Type F screw connector, providing versatile connectivity options for various devices. With its protective shell against paint and dust during installation, along with included screws for both plastic and metal boxes, installation is seamless and professional.
The product meets rigorous quality standards with IP20 degree of protection and IK04 impact strength rating, making it suitable for residential and small commercial applications. Operating safely between -5°C and 50°C, this socket is designed for indoor use only and includes halogen-free materials for environmental compliance. The loop-through design allows for daisy-chaining of connections, while its suitability for remote power supply adds to its versatility.
Key Features
- All-in-one TV, Radio, and SAT connectivity in single socket
- Tool-less installation for quick and easy setup
- Marked terminals for simplified identification and connection
- Minimal attenuation loss below 1.5 dB for superior signal quality
- Protective shell against paint and dust during installation
- Glossy anthracite finish for modern aesthetic appeal
- Compatible with both plastic and metal flush-mounted boxes
- Loop-through design for daisy-chain connectivity
- Suitable for remote power supply applications
- Halogen-free materials for environmental compliance
Technical Specifications
| Specification |
Value |
| Product Reference | 617732 |
| EAN Code | 3414971985629 |
| Brand | Legrand |
| Range | Belanko S |
| Socket Type | TV/Radio/SAT (TV-R-SAT) |
| Mounting Method | Flush-mounted |
| Number of Modules | 1 |
| Number of Outlets | 3 |
| TV Connector | 9.5mm Male |
| Radio Connector | 9.5mm Female |
| SAT Connector | Type F Screw |
| Tap Loss at 860 MHz | 1.5 dB |
| Tap Loss at 2150 MHz | 2 dB |
| Through Loss at 860 MHz | 1.5 dB |
| Through Loss at 2150 MHz | 2 dB |
| Colour | Anthracite (Black) |
| Surface Finishing | Glossy |
| Material | Thermoplastic |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 36.5 mm |
| Minimum Built-in Installation Box Depth | 27.5 mm |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Type of Fastening | Mounting with claw |
| Assembly Arrangement | Basic element with full cover plate |
| Suitable for Cable Modem | Yes |
| Suitable for Remote Power Supply | Yes |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Terminal Marking Indication | Yes |
| Recommended Use | Indoor use only |
