Description

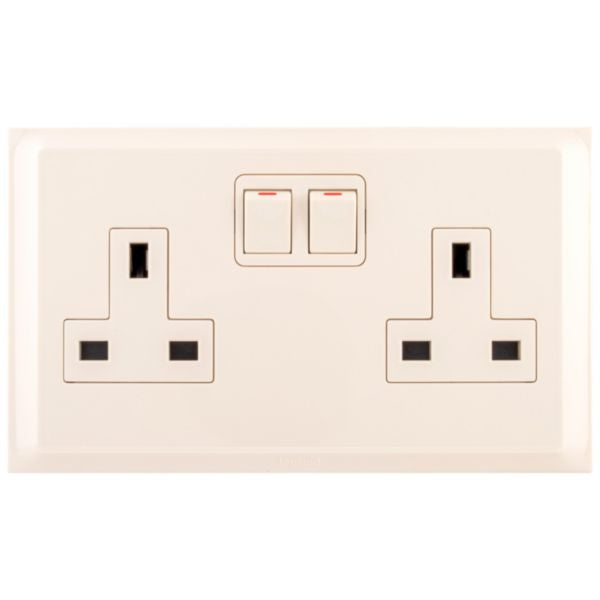

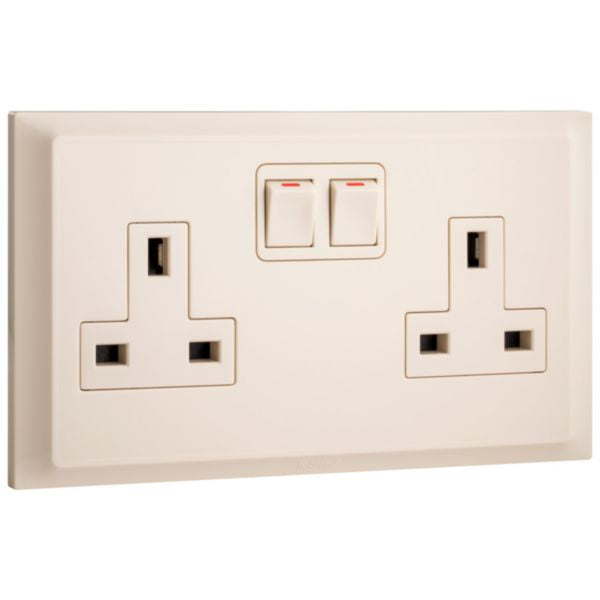

Premium 2-gang 13A British Standard switched socket outlet with red neon indicators, safety shutters, and quick installation. Ideal for residential and commercial applications with enhanced child protection and reliable performance.

The Belanko S 2 gang single pole BS switched socket outlet is a premium electrical accessory designed for residential and commercial applications. This 13A, 250V outlet features advanced safety mechanisms including integrated safety shutters for enhanced child protection and red neon inboard rockers for visual indication. The socket comes with a white BELANKO S plate and is delivered with protective shell against paint and dust during installation, making it ideal for both new builds and renovation projects. This British Standard compliant outlet incorporates screw-type terminals for secured and enhanced contacts with marked terminals for easy identification. The design allows safe disconnection of electrical appliances through its switching functionality. With quick and easy clipping installation, the product is suitable for flush-mounted applications with minimum depth of built-in installation box at 35mm. The thermoplastic construction is halogen-free and features a glossy finish with IP20 degree of protection and IK04 impact strength rating. The Belanko S outlet is optimized for new builds and renovation projects, delivered with screws for both plastic and metal boxes. Its label space and information surface provide additional functionality for identifying connected devices. Operating temperature range is -5 to 50°C, with storage temperature capability from -10 to 70°C, ensuring reliable performance in various environmental conditions.

Key Features

British Standard 2p+E 13A, 250V socket outlet with red neon inboard rockers
Integrated safety shutters for maximum child protection and enhanced security
Screw-type terminals with marked identification for secure and enhanced contacts
Quick and easy clipping installation suitable for flush-mounted applications
Delivered with protective shell against paint and dust during installation phase
Thermoplastic construction with halogen-free material and glossy finish
IP20 degree of protection with IK04 impact strength rating
Compatible with both plastic and metal installation boxes
Label space and information surface for device identification
Switch allows safe disconnection of electrical appliances

Technical Specifications

Specification	Value
Product Type	2 Gang Single Pole British Standard Switched Socket Outlet
Nominal Current	13 A
Nominal Voltage	250 V
Frequency	50-60 Hz
Number of Socket Outlets	2
Number of Switchable Socket Outlets	2
Number of Modules	4
Connection Type	Screwed Terminal
Cable Section Range	1-4 mm²
Material	Thermoplastic, Halogen Free
Surface Finishing	Glossy
Colour	Beige (Ivory)
Device Width	146 mm
Device Height	86 mm
Device Depth	29.5 mm
Built-in Depth	18.4 mm
Minimum Installation Box Depth	35 mm
Degree of Protection (IP)	IP20
Impact Strength (IK)	IK04
Operating Temperature Range	-5 to 50°C
Storage Temperature Range	-10 to 70°C
Mounting Method	Flush-mounted
Type of Fastening	Mounting with Screw
With On/Off Switch	Yes
With Function Lighting	Yes (Red Neon Indicator)
Enhanced Contact Protection	Yes
Safety Shutters	Yes
Terminal Marking	Yes
Label Space	Yes
Voltage Type	AC
Reference Number	617847
EAN Code	3414971689817
