Premium 2-gang British Standard switched socket outlet with 13A capacity, child safety shutters, screw terminals, and quick-clip installation system. Ideal for residential and commercial applications with halogen-free thermoplastic construction.

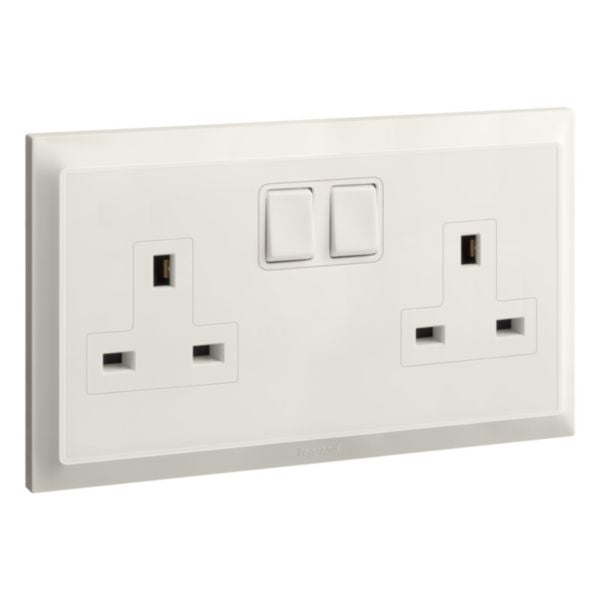

The Belanko S 2 Gang Single Pole BS Switched Socket Outlet is a premium electrical outlet designed for both new builds and renovation projects. This 13A, 250V British Standard socket outlet features advanced safety features including built-in safety shutters to maximize child protection and screw-type terminals for secured and enhanced electrical contacts. The outlet is supplied complete with a white Belanko S plate and protective shell against paint and dust during installation, making it ideal for professional installations.
This switched socket outlet incorporates marked terminals for easy identification and allows safe disconnection of electrical appliances through its integrated switch mechanism. The device features a quick and easy plate clipping system for hassle-free installation, along with pre-supplied screws compatible with both plastic and metal flush and surface boxes. With its optimized design for residential and commercial applications, the Belanko S outlet delivers reliable performance with IP20 protection rating and IK04 impact strength.
The product is manufactured from halogen-free thermoplastic material, ensuring environmental compliance and durability. Operating across 50-60 Hz frequency range with a nominal current of 13A and voltage of 250V, this outlet is suitable for standard residential and small commercial installations. The device dimensions are 146mm width x 86mm height x 29.5mm depth, with a built-in depth of 18.4mm, making it compatible with standard electrical boxes.
Key Features
- 2 gang single pole British Standard switched socket outlet rated 13A, 250V
- Built-in safety shutters for maximum child protection and accident prevention

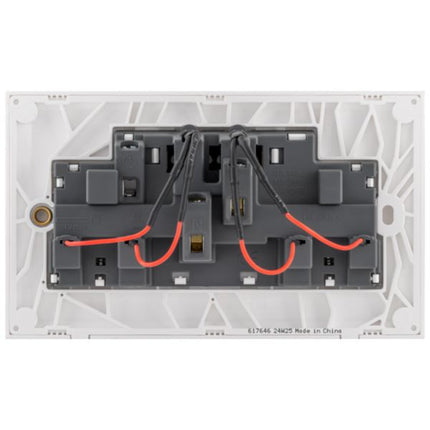

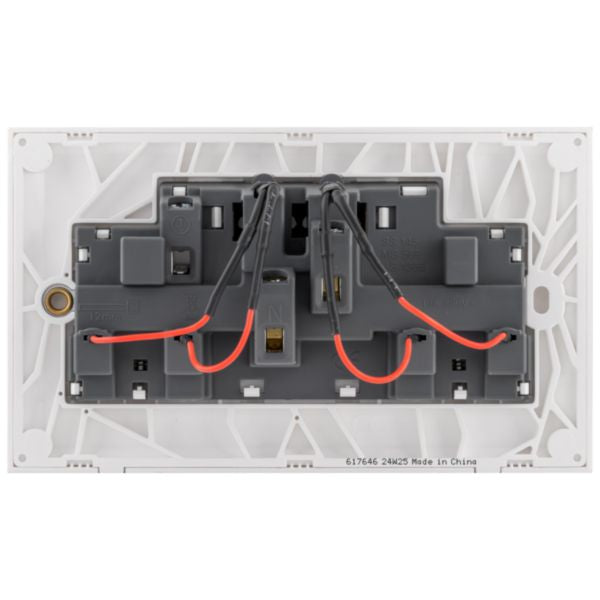

- Screw-type terminals for secured and enhanced electrical contacts
- Marked terminals for easy identification and safe wiring installation
- Quick and easy plate clipping system for fast professional installation
- Delivered with white Belanko S protective plate and dust cover
- Pre-supplied screws compatible with both plastic and metal boxes
- Halogen-free thermoplastic construction for environmental compliance
- IP20 protection rating suitable for indoor residential use
- IK04 impact strength rating for durability
Technical Specifications
| Specification |
Value |
| Product Type | 2 Gang Single Pole Switched Socket Outlet |
| Standard | British Standard (BS) |
| Nominal Current | 13 Amperes |
| Nominal Voltage | 250 Volts |
| Frequency Range | 50-60 Hz |
| Number of Socket Outlets | 2 |
| Number of Switchable Outlets | 2 |
| Protective Contact Type | Flat |
| Connection Type | Screw Terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or Rigid |
| Cable Section Range | 1-4 mm² |
| Device Width | 146 mm |
| Device Height | 86 mm |
| Device Depth | 29.5 mm |
| Built-in Depth | 18.4 mm |
| Minimum Box Depth | 35 mm |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with Screw |
| Material | Halogen-free Thermoplastic |
| Colour | Beige (Ivory) |
| Surface Finishing | Glossy |
| Protection Rating (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Voltage Type | AC (Alternating Current) |
| With On/Off Switch | Yes |
| Enhanced Contact Protection | Yes |
| Safety Shutters | Yes |
| Terminal Marking | Yes |
| Label Space Available | Yes |
| Hinged Lid | No |
| Lockable | No |
| Power Delivery | No |
| Smart Home Compatible | No (Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant) |
| Reference Number | 617846 |
| EAN Code | 3414971689787 |
