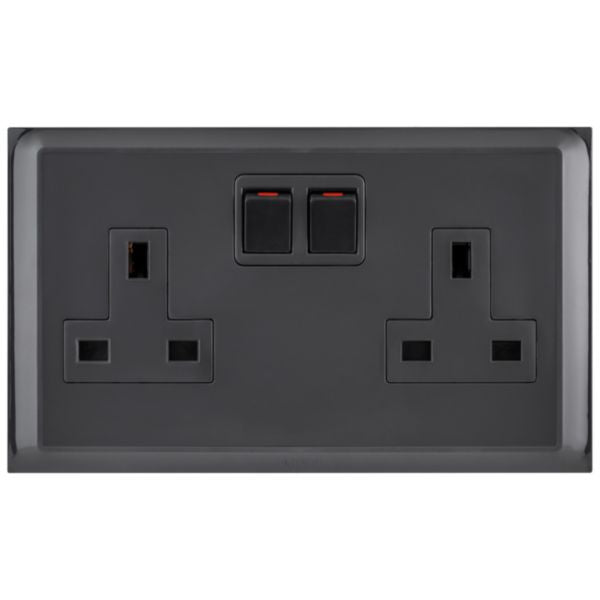

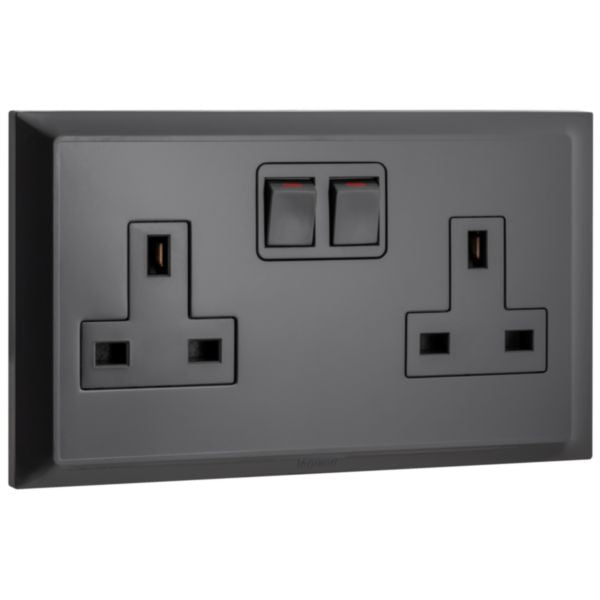

Premium 2 gang British Standard switched socket outlet with 13A capacity, safety shutters, and screw-type terminals for secure electrical connections in residential and commercial applications.
The Belanko S 2 gang single pole BS switched socket outlet is a premium electrical solution designed for both new builds and renovation projects. This 13A, 250V outlet features British Standard compliance and comes equipped with a protective white BELANKO S plate. The socket incorporates screw-type terminals that ensure secure and enhanced electrical contacts, making it ideal for safe and reliable power distribution in residential and commercial applications. The switched design allows for safe disconnection of electrical appliances, providing users with complete control over their power supply.
This outlet is specifically engineered for indoor use and comes with comprehensive safety features including fitted safety shutters that maximize child protection. The quick and easy plate clipping system ensures straightforward installation, while the device is delivered with screws compatible with both plastic and metal flush and surface boxes. With marked terminals for easy identification and a robust thermoplastic construction, this socket outlet delivers durability and reliability. The product features an IP20 protection rating and IK04 impact strength rating, making it suitable for standard residential environments.
The Belanko S range represents an optimized solution for modern electrical installations, combining functionality with aesthetic appeal. The anthracite color finish provides a contemporary look that complements any interior design. With dimensions of 146mm width, 86mm height, and 29.5mm depth, it fits standard flush-mounted installation boxes with a minimum depth of 35mm. The device operates efficiently across 50-60 Hz frequency ranges and maintains performance in temperatures ranging from -5°C to 50°C, ensuring reliable operation throughout the year.
Key Features
- 2 gang single pole British Standard switched socket outlet with 13A, 250V rating
- Safety shutters for maximum child protection and enhanced safety
- Screw-type terminals with marked identification for secure and easy connections
- Quick and easy plate clipping system for straightforward installation
- Includes protective white BELANKO S plate and installation screws for all box types
- Thermoplastic halogen-free construction for durability and environmental safety
- IP20 protection rating with IK04 impact strength for standard residential use
- Compact dimensions: 146mm width x 86mm height x 29.5mm depth
- Operating temperature range: -5°C to 50°C for reliable year-round performance
- Compatible with both 50-60 Hz frequency ranges for universal compatibility
Technical Specifications
| Specification |
Value |
| Model Type | British Standard 2 Gang Single Pole Switched Socket Outlet |
| Rated Current | 13 Amperes (13A) |
| Rated Voltage | 250 Volts (250V) |
| Frequency Range | 50-60 Hz |
| Number of Socket Outlets | 2 |
| Number of Switchable Outlets | 2 |
| Connection Type | Screwed Terminal |
| Terminal Capacity | 1-4 mm² (flexible or rigid cable) |
| Protective Contact | Flat |
| Enhanced Contact Protection | Yes |
| Safety Features | Fitted safety shutters for child protection |
| Material | Thermoplastic (Halogen-free) |
| Color | Anthracite (Black) |
| Surface Finishing | Glossy |
| Device Width | 146 mm |
| Device Height | 86 mm |
| Device Depth | 29.5 mm |
| Built-in Depth | 18.4 mm |
| Minimum Installation Box Depth | 35 mm |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| Assembly Arrangement | Basic element with full cover plate |
| Number of Modules | 4 |
| With On/Off Switch | Yes |
| Label Space Available | Yes |
| Voltage Type | AC (Alternating Current) |
| Power Delivery | No |
| Smart Home Compatible | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Reference Number | 617746 |
| EAN Code | 3414971687349 |
