Premium 2-gang British Standard double pole switched socket rated 13A at 250V with enhanced child protection, screw terminals, and quick-clip installation system for residential and commercial use.

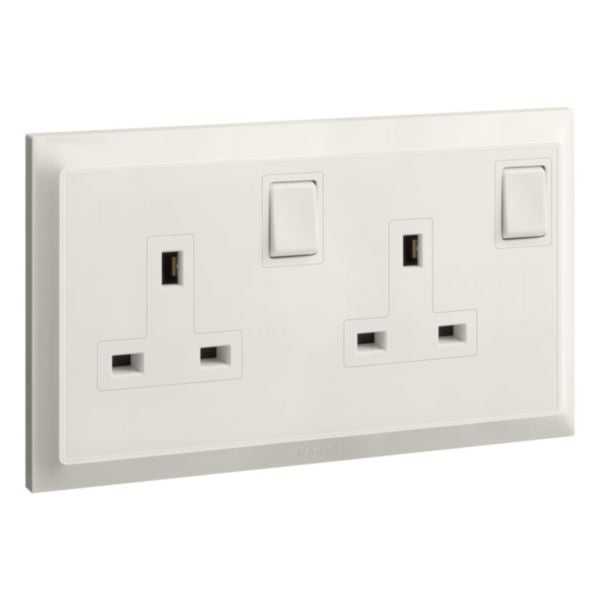

The Belanko S 2 Gang BS Double Pole Switched Socket Sameboard in Ivory is a premium wiring device designed for residential and commercial applications. This British Standard compliant socket features a 13A rated capacity at 250V, making it suitable for a wide range of electrical appliances. The unit incorporates a sophisticated design with dual switched outlets, allowing for safe disconnection of electrical devices through its integrated switch mechanism. Each socket outlet is independently switchable, providing users with convenient control over their electrical devices. The product is manufactured from high-quality thermoplastic material with a glossy finish, ensuring durability and aesthetic appeal in any interior setting.
This socket sameboard is engineered with enhanced contact protection and safety shutters to maximize child protection, making it an ideal choice for families and child-sensitive environments. The screw-type terminals provide secured and enhanced electrical contacts, with marked terminals for easy identification during installation. The device is equipped with a quick and easy plate clipping system, facilitating straightforward installation in both flush and surface-mounted applications. With a compact design featuring dimensions of 146mm width by 86mm height and 30.5mm depth, this socket fits seamlessly into standard UK electrical installation boxes with a minimum built-in installation depth of 35mm.
The Belanko S range represents an optimized solution for new builds and renovation projects, combining functionality with contemporary design. It comes delivered with a protective shell against paint and dust during the installation phase, along with screws suitable for both plastic and metal boxes. The product operates efficiently across 50-60 Hz frequency ranges and maintains optimal performance within temperature ranges of -5 to 50°C during operation. With an IP20 degree of protection and IK04 impact strength rating, this socket delivers reliable performance and protection against dust and accidental contact with live parts.
Key Features
- 2 independently switchable socket outlets with integrated switch mechanism for safe appliance disconnection
- Enhanced contact protection with safety shutters to maximize child protection and prevent accidental contact
- Screw-type terminals with marked identification for secured electrical connections and easy installation
- Quick and easy plate clipping system enabling fast flush and surface-mounted installation
- Delivered with protective shell against paint and dust, plus screws for both plastic and metal boxes
- British Standard compliant design rated 13A at 250V for reliable performance across 50-60 Hz frequency
- Compact dimensions (146x86x30.5mm) fitting standard UK electrical installation boxes
- High-quality thermoplastic material with glossy finish for durability and contemporary aesthetics
- IP20 degree of protection and IK04 impact strength rating for reliable protection
- Operating temperature range -5 to 50°C ensuring consistent performance in various environments
Technical Specifications
| Specification |
Value |
| Product Name | Belanko S 2 Gang BS Double Pole Switched Socket Sameboard |
| Reference Number | 617848 |
| EAN Code | 3414971689848 |
| Standard | British Standard (BS) |
| Rated Current | 13 Amperes |
| Rated Voltage | 250 Volts AC |
| Frequency Range | 50-60 Hz |
| Number of Socket Outlets | 2 |
| Switchable Outlets | 2 (independently switchable) |
| Number of Modules | 4 |
| Concurrently Switching Neutral Conductor | Yes |
| Protective Contact Type | Flat |
| Connection Type | Screw Terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or Rigid |
| Cable Section | 1-4 mm² |
| Enhanced Contact Protection | Yes |
| Safety Shutters | Yes |
| Terminal Marking | Yes |
| Material | Thermoplastic |
| Material Quality | High-grade Thermoplastic |
| Halogen Free | Yes |
| Surface Finishing | Glossy |
| Color | Beige (Ivory) |
| Metallic Color | No |
| Transparent | No |
| Device Width | 146 mm |
| Device Height | 86 mm |
| Device Depth | 30.5 mm |
| Built-in Depth | 19.5 mm |
| Minimum Installation Box Depth | 35 mm |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with Screw |
| Assembly Arrangement | Basic Element with Full Cover Plate |
| Plate Clipping System | Quick & Easy |
| Degree of Protection (IP) | IP20 |
| Degree of Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5 to +50°C |
| Storage Temperature Range | -10 to +70°C |
| Voltage Type | Alternating Current (AC) |
| Power Delivery | No |
| Prewired | No |
| With On/Off Switch | Yes |
| With Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| Insulated Mounting | No |
| Function Lighting | No |
| Orientation Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Miniature Fuse | No |
| Special Power Supply | None |
| USB Ports | None (0 USB-A, 0 USB-C) |
| Smart Home Compatibility | Not Compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Wi-Fi Signal Repeater | No |
| Built-in Bluetooth Speaker | No |
| Connected Object | No |
| IFTTT Support | No |
| Antimicrobial Treatment | No |
| Label Space/Information Surface | Yes |
| Complementary Luminous Signal | No |
| Use Recommendation | Recommended for inside use only |
| Installation Type | Flush mounting with screw fastening |
| Suitable for IP Degree | IP20 |
| Cable Support | Not applicable |
