Premium 13A switched socket outlet with red neon indicator, anthracite finish, and enhanced child protection. Features screw-type terminals, safety shutters, and British Standard compliance for modern residential and commercial installations.

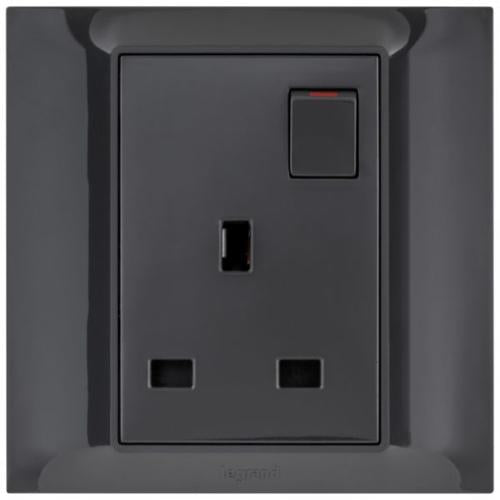

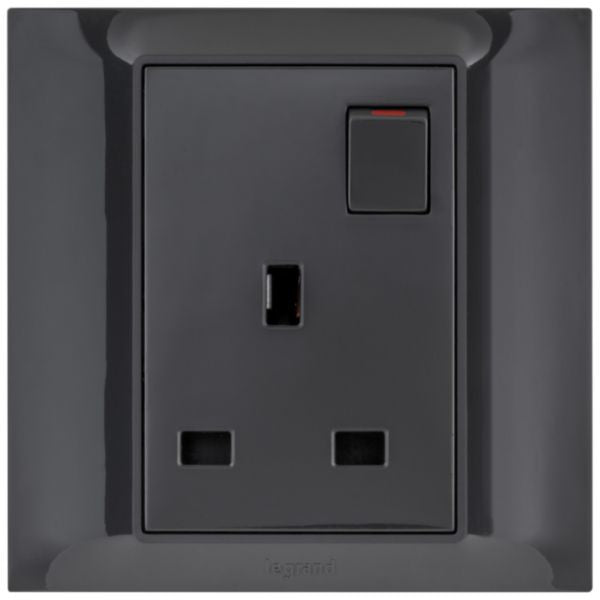

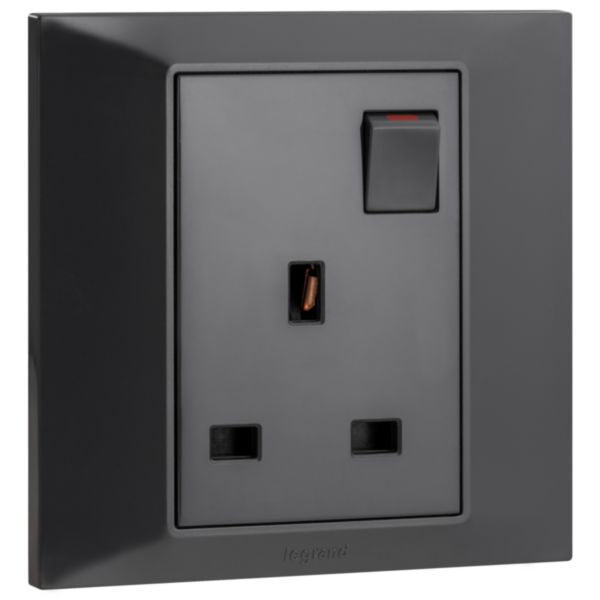

The Belanko S 1 gang single pole BS switched socket outlet is a premium electrical accessory designed for modern residential and commercial installations. This 13A, 250V socket outlet features a red neon indicator light and anthracite finish that complements contemporary interior designs. The product combines functionality with safety, incorporating enhanced contact protection and safety shutters to maximize child protection. With screw-type terminals for secured and enhanced contacts, marked terminals for easy identification, and a switch that allows safe disconnection of electrical appliances, this outlet is ideal for new builds and renovation projects. The unit is delivered with its protective shell against paint and dust during the installation phase, ensuring pristine condition upon installation. The Belanko S range is optimized for both new construction and renovation applications, featuring quick and easy clipping installation that reduces installation time and complexity.
This switched socket outlet meets British Standard specifications and is suitable for flush-mounted installation with a minimum built-in installation box depth of 35mm. The device measures 86mm x 86mm x 30.6mm, with a built-in depth of 19.2mm, making it compatible with standard electrical boxes. Operating across 50-60 Hz frequency range and rated for -5 to 50°C operating temperatures, this socket outlet provides reliable performance in various environmental conditions. The thermoplastic construction is halogen-free, ensuring safety and environmental compliance. Each unit is delivered with screws for both flush and surface boxes in plastic and metal configurations, providing complete installation flexibility.
The Belanko S switched socket outlet represents Legrand's commitment to quality and innovation in electrical distribution. With its IP20 degree of protection and IK04 impact strength rating, it offers durability suitable for typical residential and light commercial applications. The terminal marking indication feature simplifies electrical connections, while the 1-4mm² terminal capacity accommodates standard residential wiring. The red neon indicator light provides visual confirmation of power availability, enhancing user safety and convenience. This product is ideal for kitchens, living areas, and any location where switched socket outlets are required for convenient appliance control.
Key Features
- British Standard 2p+E configuration with 13A, 250V rating for reliable power distribution
- Red neon indicator light for visual confirmation of power availability and enhanced user safety
- Enhanced contact protection and safety shutters to maximize child protection
- Screw-type terminals with marked identification for secured, enhanced contacts and easy electrical connections
- Quick and easy clipping installation with protective shell against paint and dust during installation phase
- Halogen-free thermoplastic construction ensuring environmental compliance and safety
- IP20 degree of protection and IK04 impact strength rating for durability in residential applications
- Compatible with both plastic and metal flush and surface mounting boxes
- Terminal marking indication feature simplifying electrical connections
- Operating temperature range -5 to 50°C with 50-60 Hz frequency compatibility
Technical Specifications
| Specification |
Value |
| Standard | British Standard (BS) |
| Rated Current | 13 Amperes (A) |
| Rated Voltage | 250 Volts (V) |
| Frequency | 50-60 Hz |
| Socket Configuration | 2p+E (2 poles + Earth) |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 |
| Connection Type | Screw-type terminals |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or rigid cable |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 30.6 mm |
| Built-in Depth | 19.2 mm |
| Minimum Installation Box Depth | 35 mm |
| Mounting Method | Flush-mounted |
| Fastening Type | Screw mounting |
| Material | Thermoplastic |
| Colour | Anthracite (Black) |
| Surface Finishing | Glossy |
| Halogen Free | Yes |
| IP Rating (Degree of Protection) | IP20 |
| IK Rating (Impact Strength) | IK04 |
| Operating Temperature Range | -5 to 50°C |
| Storage Temperature Range | -10 to 70°C |
| With On/Off Switch | Yes |
| Switch Function | Single pole switch for safe disconnection |
| Indicator Light | Red neon indicator |
| Safety Features | Enhanced contact protection, safety shutters for child protection |
| Terminal Marking | Yes - marked for easy identification |
| Label Space | Yes |
| Protective Contact | Flat |
| Concurrently Switching Neutral | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| With Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| Insulated Mounting | No |
| Smart Home Compatible | No - Apple HomeKit, Amazon Alexa, and Google Assistant not supported |
| Wi-Fi Signal Repeater | No |
| Built-in Bluetooth Speaker | No |
| Connected Object | No |
| Power Delivery | No |
| USB Ports | No USB-A or USB-C ports |
| Reference Number | 617742 |
| EAN Code | 3414971687226 |
| Product Range | Belanko S |
| Manufacturer | Legrand |
| Voltage Type | AC (Alternating Current) |
| Installation Type | Recommended for inside use only |
| Included Accessories | White Belanko S plate, protective shell, screws for plastic and metal boxes |
