Premium 15A British Standard switched socket outlet with safety shutters, neon indicator, and screw terminals for secure installations in residential and commercial applications.

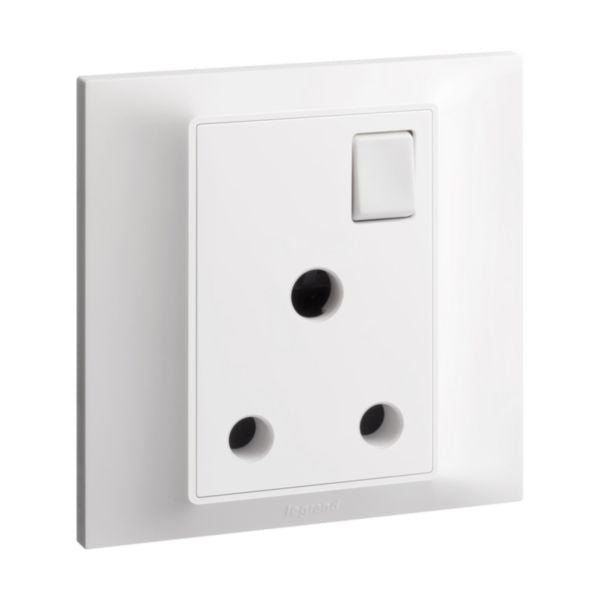

The Belanko S 1 Gang Single Pole BS Switched Socket Outlet is a premium electrical accessory designed for both new builds and renovation projects. This British Standard compliant socket outlet features a nominal current rating of 15A at 250V, making it suitable for a wide range of household and commercial applications. The outlet is equipped with screw-type terminals that provide enhanced contact reliability and durability, ensuring safe and secure electrical connections. The marked terminals facilitate easy identification during installation, reducing installation time and potential errors.
This switched socket outlet incorporates advanced safety features including safety shutters to maximize child protection and an on/off switch that allows safe disconnection of electrical appliances. The device comes delivered with a protective shell against paint and dust during the installation phase, preserving the product's aesthetic appearance. The Belanko S range is optimized for new builds and ideal for renovation projects, offering quick and easy plate clipping system for hassle-free installation. The outlet is supplied with screws compatible with both plastic and metal flush and surface boxes, providing versatile installation options.
The product is constructed from halogen-free thermoplastic material, ensuring environmental compliance and safety. With dimensions of 86mm width, 86mm height, and 36.5mm depth, it fits standard electrical boxes with a minimum built-in installation box depth of 35mm. The device operates at 50-60 Hz frequency and maintains functionality across operating temperatures from -5°C to 50°C. The IP20 protection rating and IK04 impact strength rating ensure reliable performance in standard indoor environments. Reference number 617652, EAN 3414971685062.
Key Features
- British Standard 15A 250V switched socket outlet with safety shutters for child protection
- Screw-type terminals with marked identification for enhanced contact reliability and easy installation
- Neon indicator light for visual confirmation of power status and safe appliance disconnection
- Quick and easy plate clipping system with protective shell against paint and dust during installation
- Halogen-free thermoplastic construction suitable for new builds and renovation projects
Technical Specifications
| Specification |
Value |
| Standard | British Standard (BS) |
| Nominal Current | 15A |
| Nominal Voltage | 250V |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 1 |
| Connection Type | Screw Terminal |
| Material | Halogen-free Thermoplastic |
| Colour | White (RAL 9003) |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 36.5 mm |
| Minimum Built-in Installation Box Depth | 35 mm |
| Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or Rigid |
| Mounting Method | Flush-mounted |
| With On/Off Switch | Yes |
| With Function Lighting | Yes (Neon Indicator) |
| Safety Shutters | Yes |
| Number of Modules | 2 |
| Reference Number | 617652 |
| EAN Code | 3414971685062 |
