Premium 13A British Standard switched socket outlet with safety shutters, screw terminals, and anthracite finish for secure residential and commercial electrical installations.

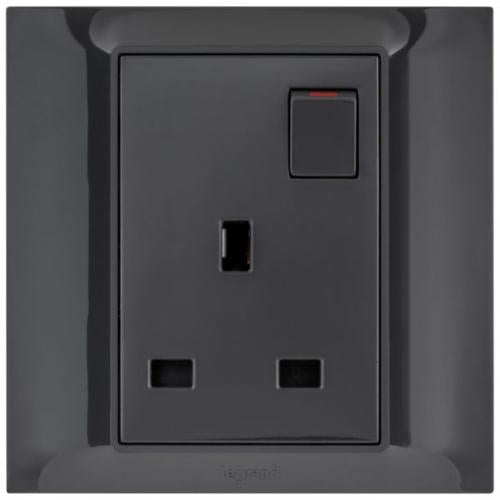

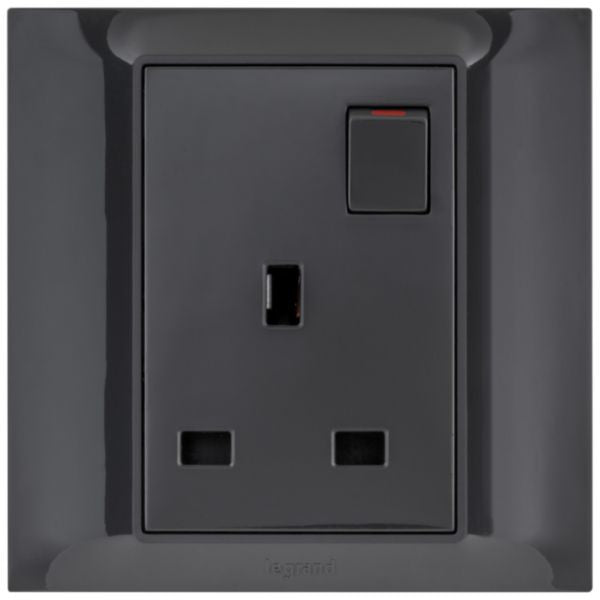

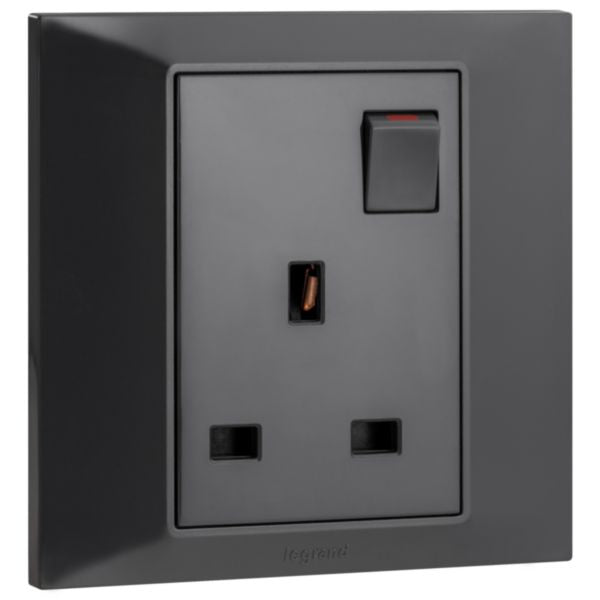

The Belanko S 1 gang single pole BS switched socket outlet is a premium electrical installation component designed for British Standard applications. With a nominal current rating of 13A at 250V, this socket outlet provides reliable power distribution for residential and commercial installations. The anthracite finish delivers a modern aesthetic that complements contemporary interior design schemes. Featuring screw-type terminals with marked connections for enhanced safety and easy identification, this socket ensures secure electrical contact and simplified installation procedures.
This switched socket outlet incorporates advanced safety features including integrated safety shutters to maximize child protection and prevent accidental contact with live terminals. The quick and easy plate clipping system facilitates rapid installation, while the protective shell guards against paint and dust contamination during the construction phase. The device is supplied with mounting screws compatible with both plastic and metal flush and surface boxes, making it versatile for various installation scenarios. With an operating temperature range of -5°C to 50°C and storage capability up to 70°C, this outlet maintains consistent performance across diverse environmental conditions.
The Belanko S range represents an optimized solution for new builds and renovation projects, combining functionality with aesthetic appeal. The 2-module design accommodates standard British electrical installations, while the halogen-free thermoplastic construction ensures environmental compliance. Terminal capacity ranges from 1-4mm² for flexible or rigid cables, providing flexibility for different wiring configurations. This product is recommended for indoor use only and achieves IP20 protection rating with IK04 impact strength, ensuring durability in typical residential and commercial environments.
Key Features
- 13A rated capacity at 250V AC for reliable power distribution
- Integrated safety shutters for maximum child protection
- Screw-type terminals with marked connections for easy identification and secure contact
- Quick and easy plate clipping system for rapid installation
- Protective shell against paint and dust during construction phase
- Halogen-free thermoplastic construction for environmental compliance
- Compatible with both plastic and metal flush and surface mounting boxes
- On/off switch for safe disconnection of electrical appliances
- IP20 protection rating with IK04 impact strength
- Operating temperature range -5°C to 50°C for diverse environments
Technical Specifications
| Specification |
Value |
| Product Model | Belanko S British Standard |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Modules | 2 |
| Number of Socket Outlets | 1 |
| Number of Switchable Outlets | 1 |
| Connection Type | Screwed Terminal |
| Protective Contact Type | Flat |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 28.2 mm |
| Built-in Depth | 16.8 mm |
| Minimum Installation Box Depth | 35 mm |
| Material | Thermoplastic |
| Colour | Anthracite Black |
| Halogen Free | Yes |
| Surface Finishing | Glossy |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with Screw |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or Rigid |
| Cable Section | 1-4 mm² |
| IP Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Voltage Type | AC |
| With On/Off Switch | Yes |
| Enhanced Contact Protection | Yes |
| Terminal Marking | Yes |
| Label Space | Yes |
| Neutral Conductor Switching | No |
| Phase Separation | No |
| Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| SKU | 617741 |
| EAN | 3414971687196 |
