Premium multistandard switched socket outlet with 250V rating, safety shutters, and screw-type terminals for enhanced reliability and child protection

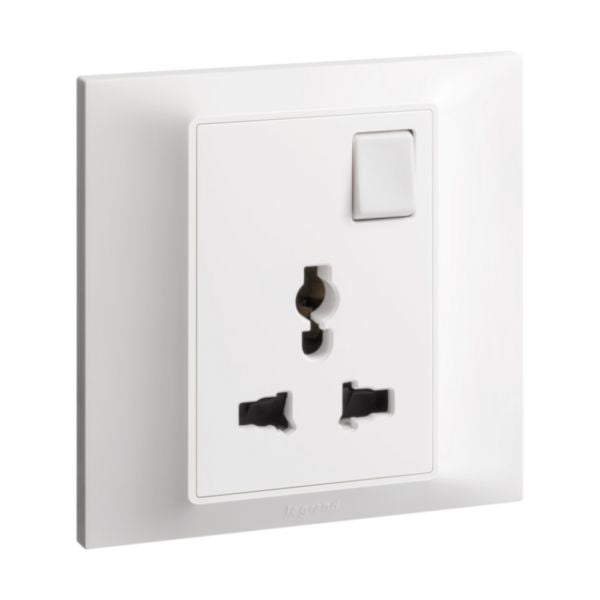

The Belanko S 1 gang multistandard switched socket outlet in white is a premium electrical wiring device designed for modern homes and commercial installations. This innovative socket outlet features multistandard compatibility at 250V, allowing it to accommodate various types of plugs including round, flat, and other international plug standards. The unit comes complete with a white Belanko S cover plate and is engineered with screw-type terminals that provide enhanced contact reliability and durability. The integrated on/off switch allows for safe disconnection of electrical appliances, offering users convenient control over their connected devices.
This socket outlet is specifically designed for flush-mounted installation with a minimum box depth of 35mm, making it ideal for both new construction projects and renovation work. The product features marked terminals for easy identification during installation, ensuring quick and accurate wiring. Safety is paramount with this device, as it includes safety shutters to maximize child protection, preventing accidental contact with live components. The Belanko S range is delivered with a protective shell against paint and dust during the installation phase, and includes all necessary screws for both plastic and metal mounting boxes.
With its sleek white finish (RAL 9003), this multistandard socket outlet combines aesthetic appeal with functional excellence. The device operates at a nominal current of 16A and maintains an IP20 protection rating with IK04 impact strength rating, making it suitable for standard indoor residential and commercial environments. The quick and easy plate clipping system ensures professional installation, while the optimized design makes it an ideal choice for renovation projects seeking modern electrical solutions.
Key Features
- Multistandard socket compatibility accommodates various international plug types at 250V
- Integrated on/off switch allows safe disconnection of electrical appliances
- Safety shutters provide maximum child protection against accidental contact
- Screw-type terminals with marked identification for reliable and easy installation
- Quick and easy plate clipping system enables fast professional installation
- Delivered with protective shell against paint and dust during installation
- Includes mounting screws for both plastic and metal flush-mounted boxes
- Sleek white finish (RAL 9003) complements modern interior designs
Technical Specifications
| Specification |
Value |
| Product Type | Multistandard Switched Socket Outlet |
| Nominal Voltage | 250V AC |
| Nominal Current | 16A |
| Frequency Range | 50-60 Hz |
| Number of Socket Outlets | 1 gang |
| Number of Active Contacts | 2 round + 2 flat |
| Connection Type | Screw-type terminals |
| Cable Section Range | 1-4 mm² |
| Material | Thermoplastic |
| Colour | White (RAL 9003) |
| Device Dimensions | 86mm W x 86mm H x 41.2mm D |
| Built-in Depth | 29.7mm |
| Minimum Box Depth | 35mm |
| Mounting Method | Flush-mounted with screw fastening |
| Protection Rating (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| With On/Off Switch | Yes |
| Safety Shutters | Yes, for child protection |
| Halogen Free | Yes |
| Label Space Available | Yes |
| Terminal Marking | Yes |
| Reference Number | 617667 |
| EAN Code | 3414971685390 |
