Premium multistandard switched socket outlet with child safety shutters, screw terminals, and quick installation system. Ideal for residential and commercial applications with 16A/250V rating and halogen-free construction.

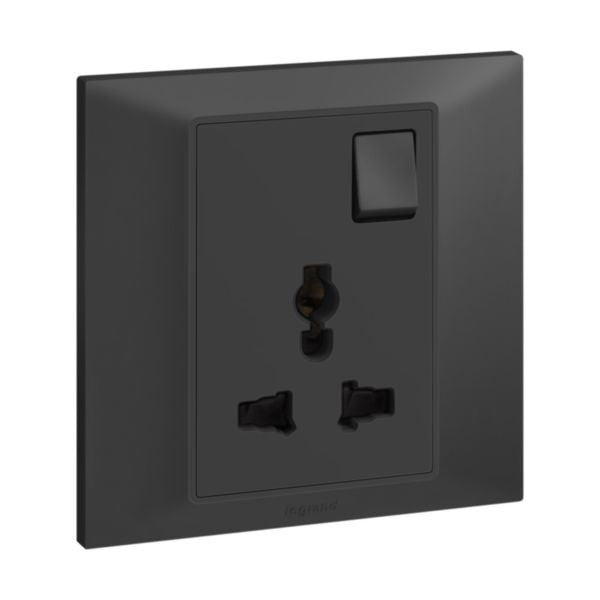

The Belanko S 1 gang multistandard switched socket outlet in anthracite is a premium electrical installation device designed for modern residential and commercial applications. This versatile socket outlet accommodates multiple standard plug types including round, flat, and other international configurations, making it ideal for international environments and renovation projects. The device features an integrated on/off switch that allows safe disconnection of electrical appliances without accessing the main circuit breaker, providing enhanced convenience and safety for everyday use.
Equipped with advanced safety features, this socket outlet includes protective shutters to maximize child protection and prevent accidental contact with live conductors. The screw-type terminals ensure enhanced contact quality and durability, while marked terminals facilitate easy identification during installation. The product comes pre-delivered with a protective shell against paint and dust during the installation phase, preserving its pristine condition. The quick and easy plate clipping system enables rapid installation, making it suitable for both new builds and renovation projects.
Manufactured with halogen-free thermoplastic material, this Belanko S outlet meets modern environmental standards and offers excellent impact resistance (IK04). With a nominal rating of 16A at 250V, it operates across standard frequencies (50-60 Hz) and is suitable for IP20 protection environments. The compact flush-mounted design with dimensions of 86mm x 86mm x 41.2mm fits standard installation boxes with a minimum depth of 35mm. This product is delivered with comprehensive installation screws compatible with both plastic and metal boxes, ensuring versatile installation capabilities.
Key Features
- Multistandard socket accommodates round, flat, and international plug types
- Integrated on/off switch for safe appliance disconnection without main circuit breaker access
- Advanced safety shutters for maximum child protection against accidental contact
- Screw-type terminals with enhanced contact quality and marked terminal identification
- Quick and easy plate clipping system enabling rapid installation in new builds and renovations
- Halogen-free thermoplastic material meeting modern environmental standards
- Impact resistance rating IK04 suitable for residential and commercial environments
- Pre-delivered with protective shell against paint and dust during installation
- Includes installation screws compatible with both plastic and metal mounting boxes
- Compact flush-mounted design fitting standard installation boxes with 35mm minimum depth
Technical Specifications
| Specification |
Value |
| Model | Multi-standard socket with switch |
| Number of Socket Outlets | 1 |
| Number of Active Contacts (Round) | 2 |
| Number of Active Contacts (Flat) | 2 |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Voltage Type | AC |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Type | Flexible or rigid |
| Material | Halogen-free thermoplastic |
| Color | Black (Anthracite) |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 41.2 mm |
| Built-in Depth | 29.7 mm |
| Minimum Installation Box Depth | 35 mm |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| With On/Off Switch | Yes |
| With Safety Shutters | Yes |
| Enhanced Contact Protection | Yes |
| Terminal Marking | Yes |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Number of Modules | 2 |
| Assembly Arrangement | Basic element with full cover plate |
| Protective Contact | Other |
| Concurrent Neutral Switching | No |
| USB Ports | None |
| Luminous Signal | No |
| Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| Smart Home Compatible | No (Apple HomeKit, Amazon Alexa, Google Assistant not supported) |
| Reference Number | 617767 |
| EAN Code | 3414971687868 |
