Shop Legrand Belanko S 1-Gang Internal Control Unit Hotel Room Anthracite | 617714 In Iraq Best Prices
Professional hotel room control unit with 16A/230V capacity, screw terminals, and marked connections for reliable guest room access management

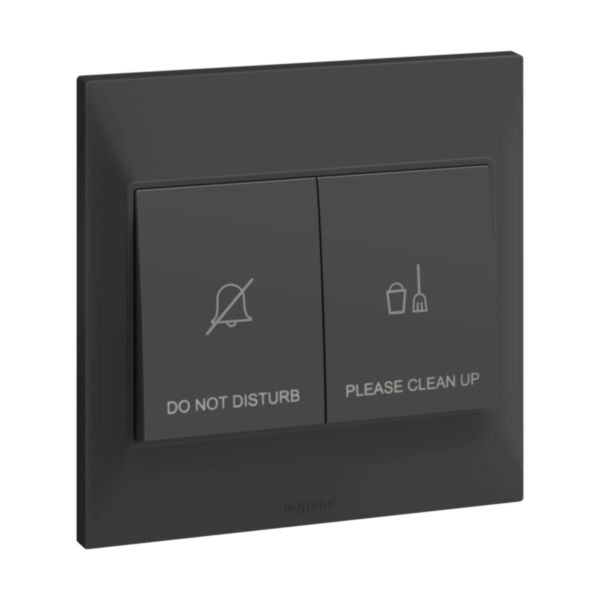

The Belanko S 1 gang internal control unit is a specialized hotel room solution designed for managing room access and functionality from within guest rooms. This anthracite-colored switch unit operates at 16A, 230V and features screw-type terminals for enhanced contact reliability and durability. The product comes complete with a white Belanko S plate and is delivered with marked terminals for easy identification during installation and maintenance. The unit is specifically engineered for convenient access control, allowing guests to restrict or allow access to their room with ease, making it an essential component of modern hotel infrastructure.
This flush-mounted device is optimized for both new builds and renovation projects, offering a homogeneous hotel aesthetic that enhances the overall guest experience. The Belanko S series is delivered with its protective shell against paint and dust during the installation phase, ensuring pristine condition upon delivery. With screws included for both plastic and metal flush and surface boxes, installation is straightforward and efficient. The thermoplastic material construction is halogen-free, meeting modern safety and environmental standards. The device features labeled terminals for quick identification, rocker/button operation, and is suitable for IP20 protection and IK04 impact strength ratings.
The unit measures 86mm width by 86mm height with a 33.6mm depth, requiring a minimum built-in installation box depth of 35mm. It operates reliably across a temperature range of -5 to 50°C during operation and -10 to 70°C during storage. The screw terminals accommodate cable sections from 1-4mm², supporting both flexible and rigid cable connections. This product represents the ideal choice for hospitality applications requiring reliable, professional-grade room control solutions.
Key Features
- 16A, 230V rated capacity for reliable operation in hotel environments
- Screw-type terminals for enhanced contact reliability and durability
- Marked terminals for easy identification during installation and maintenance
- Delivered with protective shell against paint and dust during installation phase
- Includes screws for both plastic and metal flush and surface boxes
- Halogen-free thermoplastic material meeting modern safety standards
- Homogeneous hotel aesthetic with white Belanko S plate included
- Convenient room access control function for guest comfort
- IP20 protection rating suitable for indoor use
- IK04 impact strength rating for durability
Technical Specifications
| Specification |
Value |
| Product Reference | 617714 |
| EAN Code | 3414971686502 |
| Rated Capacity | 16A, 230V AC |
| Series | Belanko S |
| Wiring System | Series switch |
| Method of Operation | Rocker/button |
| Assembly Arrangement | Basic element with full cover plate |
| Mounting Method | Flush-mounted |
| Type of Fastening | Screw mounting |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Finishing | Glossy |
| Colour | Black (Anthracite) |
| Colour of Switch Operator | Black |
| Label Space Available | Yes |
| Connection Type | Screwed terminal |
| Terminal Marking | Yes |
| Terminals Capacity | 1-4 mm² |
| Cable Nature | Flexible or rigid |
| Cable Section | 1-4 mm² |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 33.6 mm |
| Built-in Depth | 20.5 mm |
| Minimum Box Depth | 35 mm |
| IP Rating | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5 to 50°C |
| Storage Temperature Range | -10 to 70°C |
| Voltage Type | AC |
| Mandatory Neutral | Yes |
| Monitoring Contact | No |
| Lighting | No |
| Push Button Switch | No |
| Antimicrobial Treatment | No |
| HomeKit Compatible | No |
| Google Assistant Compatible | No |
| Amazon Alexa Compatible | No |
| IFTTT Support | No |
| Recommended Use | Indoor use only |
| Application | Hotel room access control |
