Premium German standard socket outlet with child safety shutters, 16A capacity, screw terminals, and quick installation system for modern residential applications.

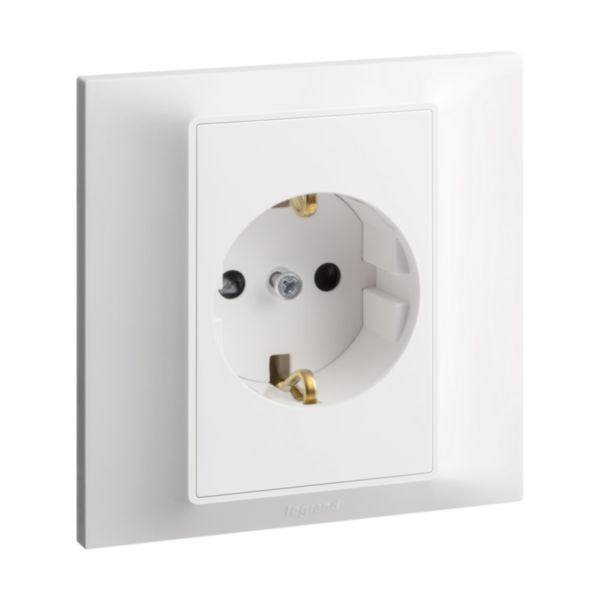

The Belanko S 1 Gang German Standard Socket Outlet with Shutter is a premium electrical installation component designed for modern residential and commercial applications. This socket outlet features the CEE 7/3 (Type F) German standard configuration with a nominal current rating of 16A at 250V, making it suitable for a wide range of electrical appliances. The product is delivered with a white protective plate and includes safety shutters to maximize child protection, ensuring secure operation in family environments. The socket features screw-type terminals with marked terminal identification for enhanced contact quality and easier installation, providing reliable electrical connections that maintain their integrity over extended use periods.
Designed with installation convenience in mind, the Belanko S socket outlet comes with a protective shell against paint and dust during the installation phase, and includes mounting screws compatible with both plastic and metal flush-mounted boxes. The quick and easy plate clipping system allows for rapid installation without requiring specialized tools. This product is part of the optimized Belanko S range, which is ideal for both new construction projects and comprehensive renovation work. With its thermoplastic material construction, halogen-free composition, and IP20 protection rating, this socket outlet meets contemporary safety and environmental standards for residential electrical installations.
The Belanko S socket outlet combines functionality with aesthetic appeal, featuring a glossy white finish (RAL 9003) that complements any modern interior design. Operating within a temperature range of -5 to 50°C, it maintains consistent performance across various climate conditions. The device includes label space for terminal identification and is suitable for flush-mounted installation with a minimum built-in installation box depth of 35mm. With its IK04 impact strength rating and robust construction, this socket outlet provides long-term durability and reliability for demanding residential and commercial applications.
Key Features
- CEE 7/3 (Type F) German standard configuration for 2P+E compatibility
- Safety shutters for maximum child protection and enhanced security
- Screw-type terminals with marked identification for reliable connections
- Quick and easy plate clipping system for rapid installation
- Halogen-free thermoplastic material meeting environmental standards
- Includes protective shell against paint and dust during installation
- Compatible with both plastic and metal flush-mounted boxes
- IP20 protection rating suitable for indoor residential use
- IK04 impact strength rating for durability
- Operating temperature range of -5 to 50°C for consistent performance
Technical Specifications
| Specification |
Value |
| Model | Socket outlet with protective contact CEE 7/3 (Type F) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 1 |
| Number of Active Contacts (Round) | 2 |
| Number of Modules | 2 |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Section | 1-4 mm² flexible or rigid |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Finishing | Glossy |
| Colour | White |
| RAL Number | 9003 (similar) |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 39.7 mm |
| Built-in Depth | 30.7 mm |
| Minimum Installation Box Depth | 35 mm |
| Protection Degree (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5 to 50°C |
| Storage Temperature Range | -10 to 70°C |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| With Enhanced Contact Protection | Yes |
| With Safety Shutters | Yes |
| Label Space | Yes |
| Voltage Type | AC |
| Reference Number | 617656 |
| EAN Code | 3414971685185 |
