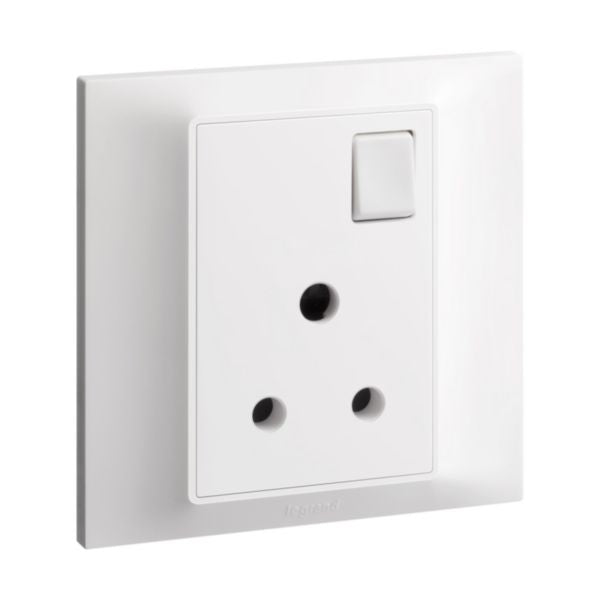

Belanko S 1 Gang BS Switched Socket Outlet rated 5A at 250V features screw terminals, safety shutters for child protection, and is ideal for indoor residential and commercial applications with quick and easy plate clipping installation.
The Belanko S 1 Gang BS Switched Socket Outlet 5A in White is a premium electrical wiring device designed to meet British Standard specifications. This switched socket outlet features a 5A rated capacity at 250V, making it ideal for connecting electrical appliances safely and efficiently. The unit comes equipped with screw-type terminals that provide enhanced contact reliability and are clearly marked for easy identification during installation. The switch allows for safe disconnection of electrical appliances, offering users complete control over power supply to connected devices.
This socket outlet is specifically designed for indoor use and incorporates multiple safety features to protect users and connected equipment. The device includes safety shutters to maximize child protection, preventing accidental contact with live electrical contacts. It comes delivered with a protective shell against paint and dust during the installation phase, ensuring the product remains in pristine condition until it is ready for use. The Belanko S range is optimized for both new builds and renovation projects, making it a versatile choice for residential and commercial applications.
The socket outlet is supplied with screws compatible with both flush and surface boxes in plastic and metal configurations. With dimensions of 86mm width by 86mm height and 30mm depth, it fits standard UK electrical boxes. The device operates across 50-60 Hz frequency ranges and features an IP20 protection rating with IK04 impact resistance. Terminal capacity accommodates cable sections from 1-4mm², supporting both flexible and rigid cable connections. This product represents an excellent balance of safety, reliability, and ease of installation for modern electrical installations.
Key Features
- British Standard compliant 5A 250V switched socket outlet with safety-enhanced design
- Screw-type terminals with marked identification for secure and easy installation
- Safety shutters for maximum child protection against accidental electrical contact
- Quick and easy plate clipping system enabling rapid installation and removal
- Delivered with protective shell against paint and dust during installation phase
- Compatible with both flush and surface mounting boxes in plastic and metal
- Operating frequency range 50-60 Hz with IP20 protection and IK04 impact resistance
- Halogen-free thermoplastic material construction for environmental safety
- Supports flexible and rigid cable connections from 1-4mm² cross-section
- Optimized for new builds and renovation projects with versatile application range
Technical Specifications
| Specification |
Value |
| Product Type | 1 Gang Switched Socket Outlet with Safety Shutters |
| Standard Compliance | British Standard (BS) |
| Nominal Current Rating | 5 Amperes (A) |
| Nominal Voltage | 250 Volts AC |
| Operating Frequency | 50-60 Hz |
| Number of Socket Outlets | 1 switchable outlet |
| Connection Type | Screw-type terminals with marked identification |
| Cable Capacity | 1-4 mm² flexible or rigid cable |
| Material Composition | Halogen-free thermoplastic |
| Colour | White (RAL 9003) |
| Device Dimensions | Width: 86mm, Height: 86mm, Depth: 30mm |
| Built-in Depth | 18.4 mm |
| Installation Box Depth | Minimum 35 mm |
| Mounting Method | Flush-mounted with screw fastening |
| IP Protection Rating | IP20 |
| Impact Resistance Rating | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Switch Function | On/off switch with safe disconnection capability |
| Safety Features | Safety shutters for child protection, enhanced contact protection |
| Protective Contact | Round protective contact included |
| Number of Modules | 2 modules (module system) |
| Assembly Type | Basic element with full cover plate |
| Surface Finish | Glossy untreated plastic |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Reference Number | 617654 |
| EAN Code | 3414971685123 |
