Shop Legrand Belanko S 1-Gang 32A Double Pole Switch with LED White | 617629 In Iraq Best Prices
Premium 32A double pole switch with integrated LED indicator, glossy white finish, and tool-less installation for modern residential and commercial applications

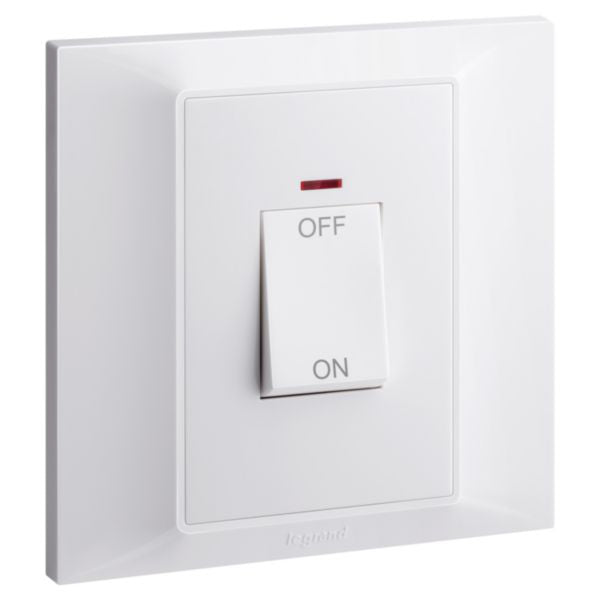

The Belanko S 1 gang 1 way 32A double pole switch with LED in white is a premium wiring device designed for modern residential and commercial applications. This high-capacity switch features a robust 32A rated current capacity, making it ideal for heavy-duty electrical loads such as cookers, water heaters, and other high-power appliances. The switch incorporates an integrated LED indicator that provides visual confirmation of the circuit status, enhancing safety and convenience in daily use.
Crafted with precision engineering, this Belanko S switch features screw-type terminals for enhanced electrical contacts and marked terminals for easy identification during installation. The glossy white finish provides an aesthetic appeal that complements modern interior designs while maintaining durability. The product is delivered with a protective shell against paint and dust during the installation phase, ensuring the switch remains in pristine condition until it is fully installed.
This double pole switch is designed for flush-mounted installation in both plastic and metal boxes, with a built-in depth of just 21mm. It comes equipped with screws compatible with both types of boxes, making it versatile for new builds and renovation projects. The switch operates at 250V AC with flexible or rigid cable connections ranging from 6-10mm², and features tool-less installation capabilities for faster setup. The IK04 impact strength rating ensures reliable performance in various environments, while the IP20 protection degree makes it suitable for indoor use.
Key Features
- 32A rated current capacity for heavy-duty electrical loads
- Integrated LED indicator for circuit status confirmation
- Screw-type terminals for enhanced electrical contacts
- Marked terminals for easy identification during installation
- Tool-less installation capability for faster setup
- Compatible with both plastic and metal flush-mounted boxes
- Protective shell against paint and dust during installation
- Glossy white finish with modern aesthetic appeal
- IK04 impact strength rating for durability
- IP20 protection degree suitable for indoor use
Technical Specifications
| Specification |
Value |
| Rated Current | 32 A |
| Nominal Voltage | 250 V AC |
| Wiring System | Switch 2-pole |
| Method of Operation | Rocker lever |
| Number of Modules | 1 |
| Mounting Method | Flush-mounted |
| Material | Thermoplastic |
| Colour | White (RAL 9003) |
| Surface Finishing | Glossy |
| Device Width | 86 mm |
| Device Height | 86 mm |
| Device Depth | 34 mm |
| Built-in Depth | 21 mm |
| Minimum Box Depth | 35 mm |
| Terminal Type | Screwed terminal |
| Cable Capacity | 6-10 mm² |
| Cable Type | Flexible or rigid |
| Lighting | Yes (LED) |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature | -5 to 50°C |
| Storage Temperature | -10 to 70°C |
| Halogen Free | No |
| Type of Fastening | Screw mounting |
| Mandatory Neutral | Yes |
Order Legrand Belanko S 1-Gang 32A Double Pole Switch with LED White | 617629 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
