2NO2NC auxiliary contact unit for CTX3 mini contactors with front mounting, 3A rated current, screw terminals, and IEC 60947-4-1 compliance

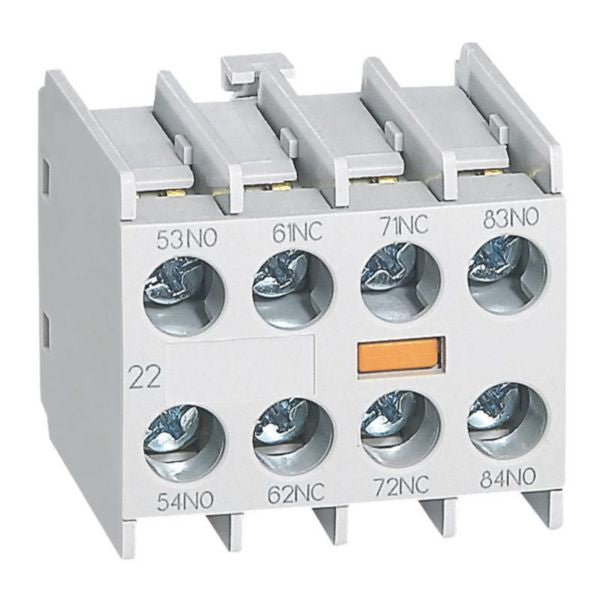

The Auxiliary Contact 2NO2NC for CTX3 mini and control relays is a precision-engineered electrical component designed for tertiary and industrial installations. This auxiliary contact unit features 2 normally open (NO) contacts and 2 normally closed (NC) contacts with a rated operational current of 3A at AC-15, 230V. The device is specially constructed to meet IEC 60947-4-1 standards, ensuring reliable performance in demanding electrical environments. The NC auxiliary contact meets the definition of mirror contact according to industry standards, providing consistent and dependable switching operations.
This front-mounted auxiliary contact is engineered for seamless integration with CTX3 mini contactors and control relays. It features screw terminals with a capacity of 2 x 1.5mm² to 2mm², ensuring secure and reliable electrical connections. The minimum switching voltage is 24V DC with a minimum switching current of 10mA, making it suitable for a wide range of control circuit applications. The clip-on mounting method allows for quick and easy installation on the front of the contactor, reducing installation time and ensuring proper alignment.
Designed with environmental consciousness in mind, this product complies with all substance-restriction requirements and RoHS directives. It has been manufactured to the highest standards of quality and reliability, making it an ideal choice for industrial motor control applications, tertiary installations, and complex control systems where precision and dependability are paramount. The auxiliary contact unit is backed by comprehensive technical documentation and support resources.
Key Features
- 2 Normally Open (NO) and 2 Normally Closed (NC) contacts for versatile switching applications
- Mirror contact design meeting IEC 60947-4-1 standard for reliable switching performance
- Rated operational current of 3A at AC-15, 230V for industrial control applications
- Screw terminals with 2 x 1.5mm² to 2mm² capacity for secure electrical connections
- Front-mounted clip-on design for quick and easy installation on CTX3 mini contactors
- Minimum switching voltage of 24V DC with 10mA minimum switching current
- RoHS compliant and environmentally conscious manufacturing process
- Suitable for tertiary and industrial installations with complex control requirements
Technical Specifications
| Specification |
Value |
| Contact Configuration | 2NO + 2NC (2 Normally Open + 2 Normally Closed) |
| Rated Operation Current | 3A at AC-15, 230V |
| Contact Current Rating | 10A (Ith) |
| Minimum Switching Voltage | 24V DC |
| Minimum Switching Current | 10mA |
| Terminal Type | Screw connection |
| Terminal Capacity | 2 x 1.5mm² to 2mm² |
| Mounting Method | Front fastening / Clip-on |
| Model Type | Clip-on for CTX3 mini and control relays |
| Compatibility | CTX3 mini contactors and control relays |
| Standards Compliance | IEC 60947-4-1, RoHS, REACH |
| Reference Number | 417155 |
| EAN Code | 3414970404817 |
| Manufacturer | Legrand |
| Contact Type | Mirror contact (NC) as per IEC 60947-4-1 |
