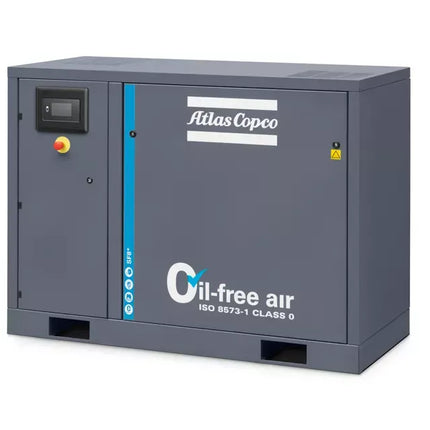

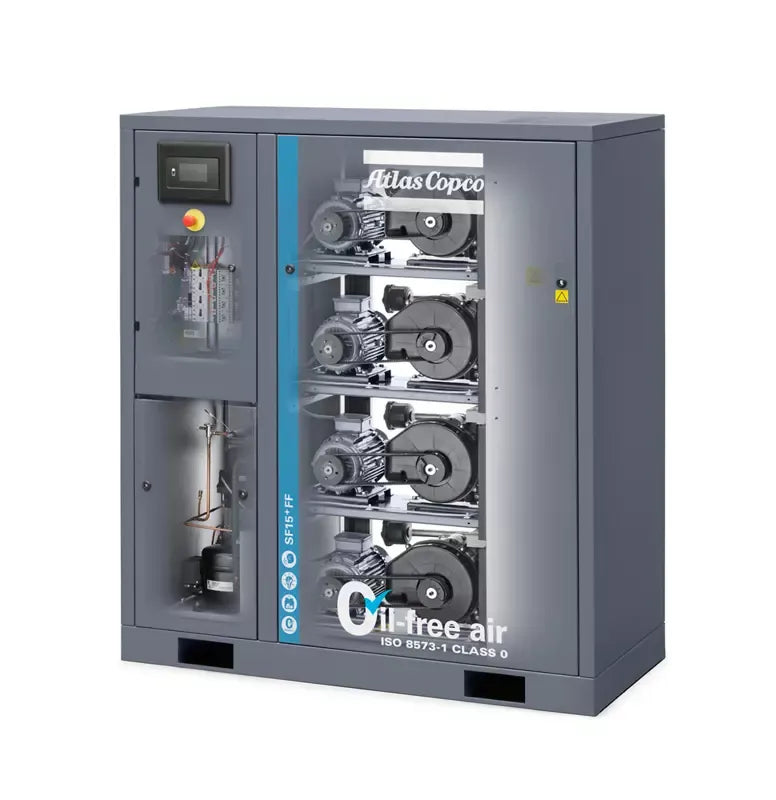

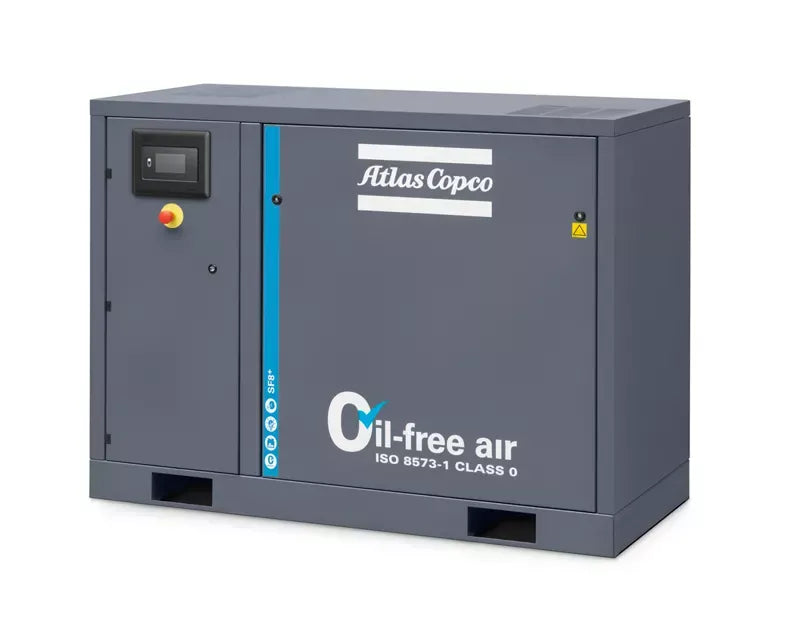

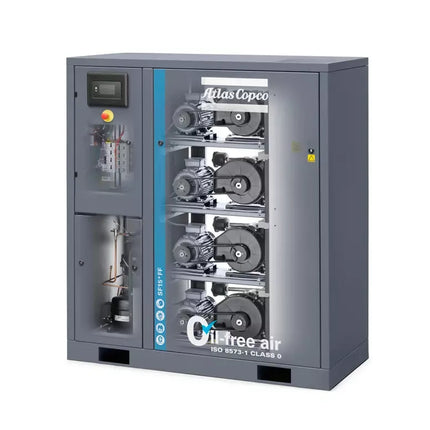

The Atlas Copco SF and SF+ series oil-free scroll compressors are engineered for applications requiring quiet, clean, and efficient air solutions. Utilizing advanced scroll technology, these compressors are ideal for industries such as medical, dental, pharmaceutical, electronics, and food where air purity is non-negotiable.
The SF series offers base-level functionality while the SF+ includes an integrated controller for enhanced monitoring and efficiency. Both versions are designed for near-silent operation with sound levels as low as 53 dB(A), making them perfect for installation close to the point of use.
Thanks to their oil-free design, there’s zero risk of oil contamination, ensuring compliance with ISO 8573-1 CLASS 0 standards. These compressors are compact, low maintenance, and offer a smart solution for any operation that needs continuous, clean air with minimal disruption.
Features:
-
100% oil-free scroll technology – ISO 8573-1 CLASS 0
-
Quiet operation with noise levels as low as 53 dB(A)
-
SF+: Integrated Elektronikon® controller for advanced control
-
Minimal vibration – suitable for sensitive environments
-
Compact and floor-standing design
-
Low maintenance and long service intervals
-
Energy-efficient operation with high reliability
Specifications Table:
| Specification |
Value |
| Technology |
Oil-free scroll |
| Power Range |
1.5 to 22 kW (2 to 30 hp) |
| Max Pressure |
Up to 10 bar (145 psi) |
| Free Air Delivery |
Varies per model (up to 2.5 m³/min) |
| Noise Level |
As low as 53 dB(A) |
| Controller (SF+) |
Elektronikon® |
| Cooling System |
Air-cooled |
| Certifications |
ISO 8573-1 CLASS 0 |
| Mounting |
Floor-standing |
