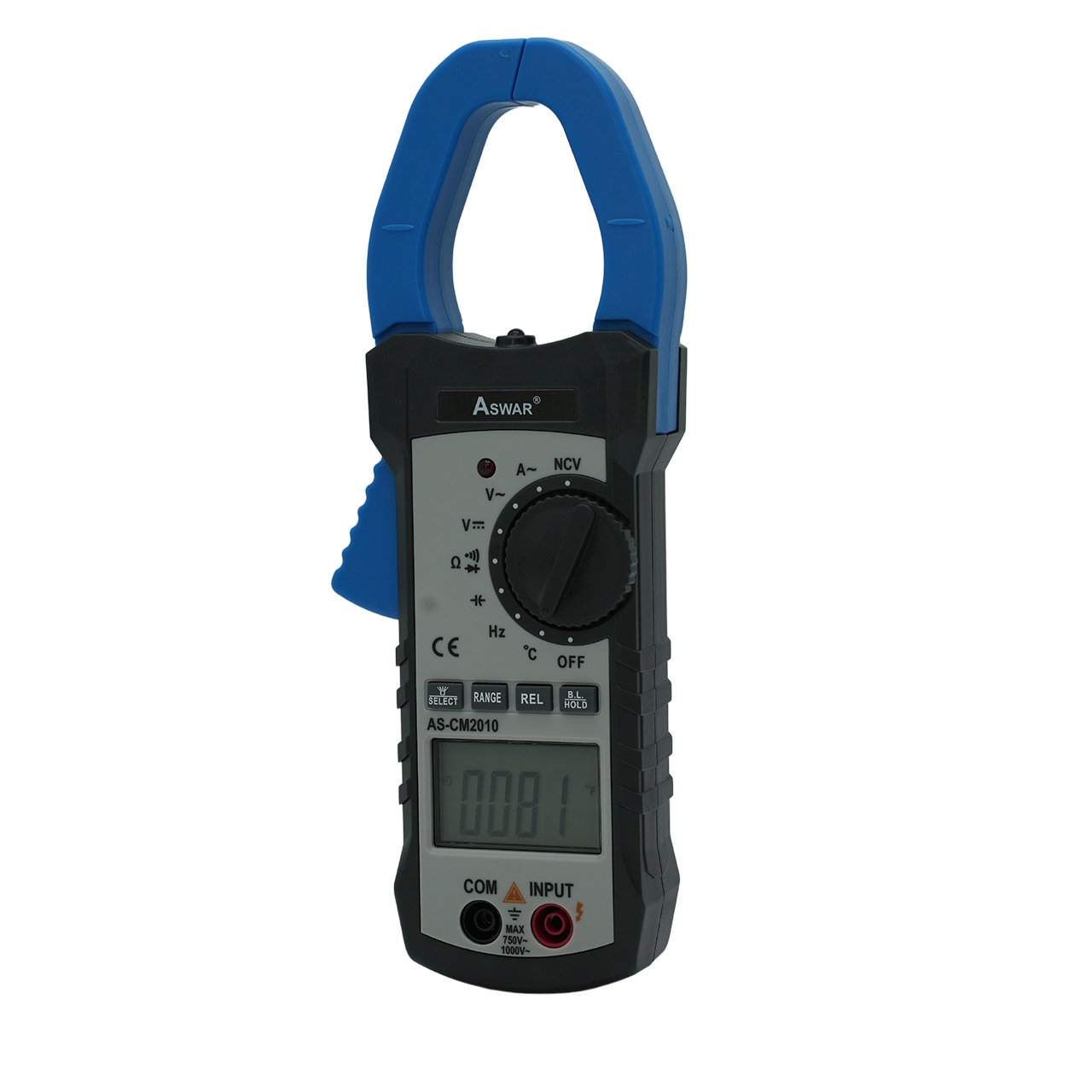

The ASWAR AS-CM2010 is a professional digital clamp meter designed for electricians, technicians, maintenance teams, and electrical troubleshooting. It measures AC current up to 1000A using the clamp jaw, allowing current measurements without disconnecting the electrical circuit.
The meter supports AC voltage up to 750V and DC voltage up to 1000V, along with resistance, capacitance, temperature, and frequency measurements. True RMS technology improves measurement accuracy with varying electrical loads, while the NCV detector helps identify live voltage without direct contact.
For easier daily use, the AS-CM2010 includes Auto Range, Data Hold, continuity and diode testing, LCD backlight, LED indicator, automatic power off, and low battery indication. Full range protection adds extra safety during electrical testing.
Its 30 mm jaw opening makes it practical for common electrical cables, while the compact handheld design is suitable for field work, electrical installations, HVAC servicing, workshops, and maintenance applications.
Features
- Measures AC current up to 1000A
- AC voltage measurement up to 750V
- DC voltage measurement up to 1000V
- True RMS measurement
- NCV non contact voltage detection
- Temperature measurement
- Frequency measurement
- Capacitance measurement
- Resistance measurement
- Continuity test
- Diode test
- Auto Range
- Data Hold
- LCD backlight
- LED indicator
- Auto power off
- Low battery indicator
- Full range protection
- Maximum jaw opening 30 mm
Specifications
| Specification |
Details |
| Brand |
ASWAR |
| Model |
AS-CM2010 |
| Product Type |
Digital Clamp Meter |
| AC Current |
Up to 1000A |
| AC Voltage |
Up to 750V |
| DC Voltage |
Up to 1000V |
| Resistance |
Up to 60 MΩ |
| Capacitance |
6 nF to 60 mF |
| Temperature |
Minus 40 to 750 C |
| Frequency |
6 Hz to 60 MHz |
| True RMS |
Yes |
| NCV Detector |
Yes |
| Continuity Test |
Yes |
| Diode Test |
Yes |
| Auto Range |
Yes |
| Data Hold |
Yes |
| LCD Backlight |
Yes |
| LED Indicator |
Yes |
| Auto Power Off |
Yes |
| Low Battery Indicator |
Yes |
| Full Range Protection |
Yes |
| Max Jaw Opening |
30 mm |
| Display Size |
2 Inch |
| Dimensions |
240 x 90 x 40 mm |
| Net Weight |
360 g |
