Shop Legrand Arteor USB Type-C Power Delivery 20W Single Port White | 571696 In Iraq Best Prices
Compact 1-module USB Type-C power delivery charging solution with 20W fast charging capability, ideal for smartphones and tablets. Features energy-efficient design with 0.05W standby consumption and IEC 62684:2018 compliance.

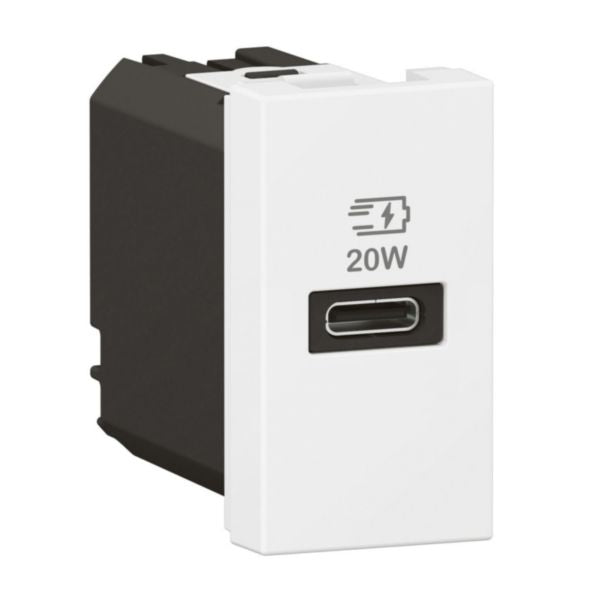

The Arteor™ 1 Module USB Single Port Type C Power Delivery 20W in White is a compact, high-performance charging solution designed for modern portable devices. This innovative module delivers fast charging capability with 20W power delivery output, supporting optimal charging speeds for smartphones, tablets, and power banks. The device features a single USB Type-C port with 3A maximum output current, operating at 100-240V AC with 50-60Hz frequency compatibility, making it suitable for global use.
This flush-mounted charging module is engineered for indoor residential and commercial applications, offering quick and easy installation through screwed terminal connections. The compact 1-module design provides space-efficient integration into your electrical infrastructure while maintaining professional aesthetics with its clean white finish (RAL 9003). With a standby power consumption of just 0.05W, this device is energy-efficient and environmentally conscious. The module conforms to IEC 62684:2018 standards and features halogen-free construction, ensuring safety and compliance with modern electrical regulations.
The Arteor USB Type-C module is ideal for fast charging of contemporary mobile devices with power delivery support. Its intelligent design includes terminal marking indication for easy identification and proper installation. The device operates reliably between 5-40°C, with storage capability from -20 to 70°C, ensuring durability in various environmental conditions. Built with IK04 impact resistance rating, this module offers reliable performance for years of dependable use in homes and commercial spaces.
Key Features
- USB Type-C single port with 3A maximum output current for fast charging
- 20W Power Delivery support for optimal charging of modern mobile devices
- Compact 1-module design for space-efficient installation
- Ultra-low standby power consumption of 0.05W for energy efficiency
- IEC 62684:2018 compliant with halogen-free construction
- Flush-mounted installation with screwed terminal connections
- Global voltage compatibility 100-240V AC, 50-60Hz frequency
- IK04 impact resistance rating for durability
- Terminal marking indication for easy identification
- Operating temperature range 5-40°C with storage capability -20 to 70°C
Technical Specifications
| Specification |
Value |
| Product Type | USB Type-C Power Delivery Module |
| Model | Arteor™ 1 Module USB Single Port Type C |
| Reference Number | 571696 |
| EAN Code | 3414972242653 |
| Number of Modules | 1 module |
| USB Ports Configuration | 1 USB Type-C port, 0 USB-A ports |
| Output Power | 20W Power Delivery |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage Range | 5-12V DC |
| Input Voltage Range | 100-240V AC |
| Frequency Range | 50-60 Hz |
| Power Consumption | 0.048W (operating), 0.05W (standby) |
| Supply Current | 0.5A |
| Connection Type | Screwed terminal |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Section | 1.5-2.5 mm² (flexible or rigid) |
| Mounting Method | Flush-mounted |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Colour | White |
| RAL Number | RAL 9003 |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20 to 70°C |
| Voltage Type | AC |
| Power Delivery Support | Yes |
| Wireless Capability | No |
| Antimicrobial Treatment | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Stress Test Conformity (1000V) | No |
| Standards Compliance | IEC 62684:2018 |
| Intended Use | Indoor use only |
| Application | Charging smartphones, tablets, power banks with fast charge feature |
