Shop Legrand Arteor USB Type-C Power Delivery Charger 20W Single Port Magnesium | 571697 In Iraq Best Prices
Premium 1-module USB Type-C Power Delivery outlet with 20W fast charging, IEC 62684:2018 compliant, low 0.05W standby consumption, ideal for modern homes and offices

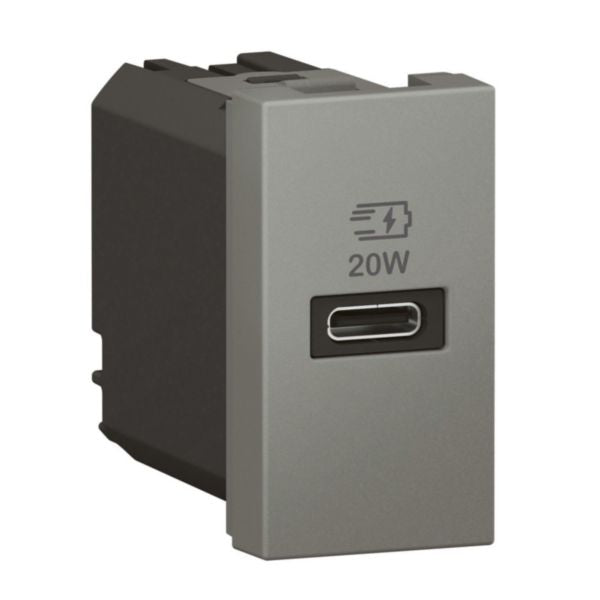

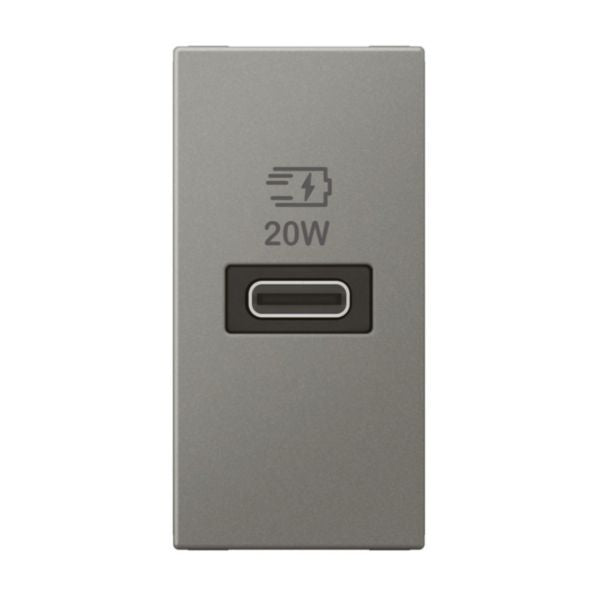

The Arteor™ 1 module USB single port type C Power delivery 20W in Magnesium finish is a premium charging solution designed for modern portable devices. This compact flush-mounted outlet features fast-charge technology with Power Delivery capability, enabling rapid charging of smartphones, tablets, and power banks. The device operates on standard AC voltage (100-240V, 50-60Hz) and delivers up to 3A at 5-12V output, making it ideal for simultaneous charging of multiple high-power devices.
This innovative wiring device combines Legrand's renowned quality with cutting-edge charging technology. The single module design provides space-efficient installation in residential and commercial settings, with a sleek magnesium finish that complements modern interior aesthetics. The product is IEC 62684:2018 compliant, ensuring compatibility with international charging standards and safety requirements. With an exceptionally low standby power consumption of just 0.05W, this USB outlet is energy-efficient and environmentally responsible.
The Arteor USB Type-C outlet features quick and easy connection through screwed terminals, supporting flexible or rigid cables from 1.5-2.5mm². It is suitable for IP40 protection degree and IK04 impact strength, making it durable for various indoor environments. The device includes a mandatory neutral terminal with clear terminal marking indication for safe installation. Perfect for kitchens, living rooms, offices, and any space requiring convenient high-speed charging access.
Key Features
- USB Type-C single port with 3A maximum output current for fast charging
- Power Delivery technology supporting 5-12V output for optimal device charging
- Compact 1-module design for space-efficient flush-mounted installation
- Ultra-low 0.05W standby power consumption for energy efficiency
- IEC 62684:2018 compliant with international safety and compatibility standards
- Magnesium finish with sleek modern aesthetic design
- Quick and easy screwed terminal connection for flexible or rigid cables
- IP40 protection degree and IK04 impact strength for durability
- Operating temperature range 5-40°C for reliable performance
- Halogen-free construction for environmental safety
Technical Specifications
| Specification |
Value |
| Product Name | Arteor™ 1 Module USB Single Port Type C Power Delivery 20W |
| Reference Number | 571697 |
| EAN Code | 3414972242707 |
| Number of USB Modules | 1 module |
| USB Port Type | USB Type-C single port |
| USB-A Ports | 0 |
| USB-C Ports | 1 |
| Power Delivery | Yes, 20W |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage Range | 5-12V |
| Input Voltage Range | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption | 0.048W (Standby: 0.05W) |
| Supply Current | 0.5-0.5A |
| Connection Type | Screwed terminal |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Section | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Mounting Method | Flush-mounted |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Colour | Magnesium (Aluminium) |
| IP Protection Degree | IP40 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Stress Test Conformity (1000V) | No |
| International Standard Compliance | IEC 62684:2018 |
| Installation Type | For indoor use only |
| Brand | Legrand |
| Product Range | Arteor (International) |
| Category | Wiring devices - Power outlets, USB outlets, data outlets |
