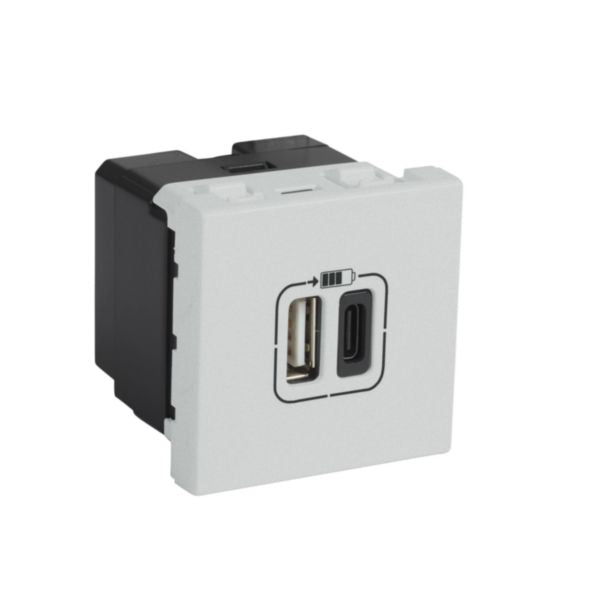

Shop Legrand Arteor USB Type-A + Type-C Charging Socket 3A 15W Soft Aluminium | 570077 In Iraq Best Prices
Dual USB charging socket with Type-A and Type-C ports, 3A/15W output, soft aluminum finish, universal 100-240V compatibility, and flush-mount installation for modern homes and offices.
The Arteor USB charging socket combines modern design with practical functionality, featuring both USB Type-A and USB Type-C ports for comprehensive device charging capabilities. This dual-port socket delivers 3A at 15W output power, converting standard 230V AC mains to 5V DC for safe and efficient charging of portable devices. The socket is equipped with rocker plates and requires support frames for installation, making it suitable for flush-mounted applications in residential and commercial settings.
Designed with the Arteor aesthetic in a soft aluminum finish, this 2-module socket integrates seamlessly into contemporary interior designs. The device operates across a wide voltage range of 100-240V and 50-60Hz frequency, making it universally compatible with global electrical standards. With standby consumption minimized and USB Type-C compliance to IEC 62684-2011-01 standards, this socket provides reliable charging without requiring external power adapters.
The socket features secure screw terminal connections accommodating flexible or rigid cables from 1.5-2.5mm², ensuring robust installation. Its compact dimensions (45mm width and height, 42mm depth) fit standard electrical boxes with minimum 40mm built-in depth. The device achieves IP40 degree of protection and IK04 impact strength, making it suitable for various indoor environments. Halogen-free construction ensures environmental compliance and safety standards.
Key Features
- Dual USB ports: One USB Type-A and one USB Type-C for versatile device charging
- High-power output: 3A maximum current at 15W power delivery for fast charging
- Universal voltage compatibility: Operates on 100-240V AC, 50-60Hz frequency
- Soft aluminum finish: Modern Arteor aesthetic design that complements contemporary interiors
- Safe conversion: Converts 230V AC mains to regulated 5V DC output
- Flush-mount installation: Requires support frames and rocker plates for seamless integration
- IEC 62684-2011-01 compliance: USB Type-C charging socket meets international standards
- Compact design: 45mm x 45mm x 42mm dimensions fit standard electrical boxes
- Secure connections: Screw terminals accommodate 1.5-2.5mm² flexible or rigid cables
- Environmental compliance: Halogen-free construction for safety and sustainability
- Protection ratings: IP40 protection degree and IK04 impact strength
- Minimal standby consumption: Energy-efficient operation with reduced idle power draw
Technical Specifications
| Specification |
Value |
| Product Reference | 570077 |
| EAN Code | 3414971851627 |
| Brand | Legrand |
| Product Line | Arteor |
| Number of Modules | 2 modules |
| USB Type-A Ports | 1 port |
| USB Type-C Ports | 1 port |
| Input Voltage | 100-240V AC |
| Input Frequency | 50-60 Hz |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3A) |
| Power Output | 15W |
| Power Consumption | 0.066W |
| Supply Current | 0.5A |
| Connection Type | Screw terminals |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Installation Method | Flush-mounted |
| Mounting Type | Requires support frames and rocker plates |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42 mm |
| Minimum Built-in Depth | 40 mm |
| Built-in Depth | 33 mm |
| Colour | Soft Aluminium |
| IP Rating | IP40 |
| IK Rating | IK04 |
| Operating Temperature | 5-40°C |
| Storage Temperature | -20-70°C |
| Voltage Type | AC |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Number of Terminals | 2 |
| USB Compliance | IEC 62684-2011-01 |
| Standby Consumption | Minimal |
