Shop Legrand Arteor USB Type-A + Type-C Charging Socket 3A 15W Magnesium | 572577 In Iraq Best Prices
Dual-port USB charging socket with Type-A and Type-C connectors, delivering 3A/15W power output in elegant magnesium finish. Ideal for modern residential and commercial applications requiring safe, efficient device charging.

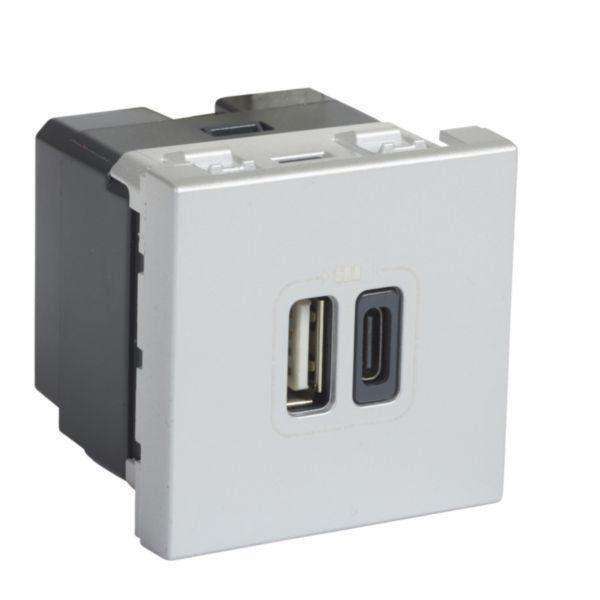

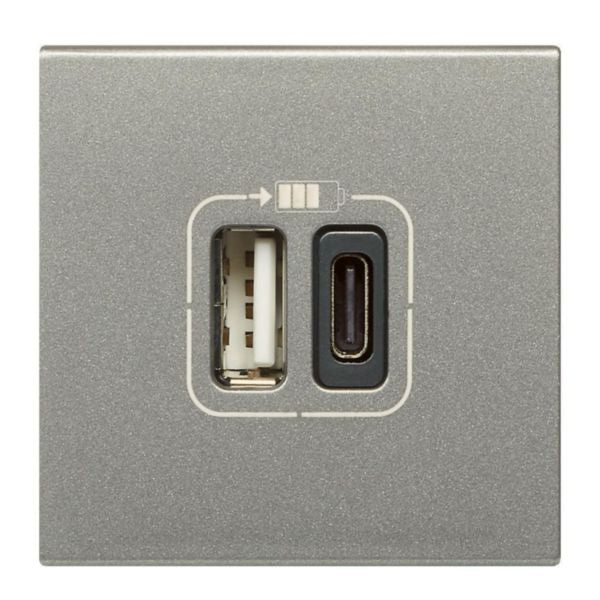

The Arteor USB charging socket combines modern design with practical functionality, featuring both USB Type-A and USB Type-C ports in a single elegant unit. This dual-port charging solution delivers 3A at 15W output power, converting standard 230V AC supply to 5V DC for safe device charging. The socket is equipped with a magnesium finish that provides a premium aesthetic while maintaining durability and corrosion resistance. Designed for flush-mounted installation, this 2-module socket integrates seamlessly into standard electrical boxes and wall installations.
This charging socket meets international safety standards including IEC 62684-2011-01, ensuring reliable and safe charging for portable devices without requiring a mobile charger. The device features screwed terminal connections rated for 1.5-2.5mm² cable sections, compatible with both flexible and rigid cables. With a compact 45mm x 45mm x 42mm form factor and low standby consumption, it represents an energy-efficient solution for modern homes and commercial spaces. The magnesium housing provides both aesthetic appeal and protection against impact with an IK04 rating.
The Arteor socket is part of Legrand's comprehensive wiring devices range, offering compatibility with support frames and decorative plates for customized installation. Operating across 100-240V at 50-60Hz frequency, this universal voltage socket serves diverse global applications. The IP40 protection rating ensures adequate protection against dust and moisture in typical indoor environments, making it suitable for residential and small commercial installations.
Key Features
- Dual USB ports: 1 USB Type-A and 1 USB Type-C for universal device compatibility
- High-power output: 3A maximum current at 15W delivering efficient fast charging capability
- Premium magnesium finish: Durable, corrosion-resistant housing with elegant aesthetic appeal
- International safety certified: Complies with IEC 62684-2011-01 standards for safe charging
- Universal voltage support: Operates on 100-240V AC at 50-60Hz for global applications
- Compact flush-mount design: 2-module system integrates seamlessly into standard electrical boxes
- Low energy consumption: Minimal standby power draw for efficient operation
- Impact resistant: IK04 protection rating against mechanical stress and damage
- IP40 dust and moisture protection: Suitable for typical indoor residential and commercial environments
- Flexible installation: Compatible with support frames and decorative plates for customization
Technical Specifications
| Specification |
Value |
| Product Name | Arteor USB Charging Socket |
| SKU/Reference | 572577 |
| EAN Code | 3414971007277 |
| Number of Modules | 2 modules |
| USB Ports Configuration | 1 USB Type-A + 1 USB Type-C |
| Input Voltage | 100-240V AC |
| Input Frequency | 50-60Hz |
| Output Voltage | 5V DC |
| Maximum Output Current | 3A (3000mA) |
| Power Output | 15W |
| Power Consumption | 0.066W |
| Connection Type | Screwed terminal |
| Terminal Capacity | 1.5-2.5mm² |
| Cable Type Compatibility | Flexible or rigid cables |
| Number of Terminals | 2 |
| Mounting Method | Flush-mounted |
| Mounting Box Depth | Minimum 40mm |
| Built-in Installation Depth | 33mm |
| Device Width | 45mm |
| Device Height | 45mm |
| Device Depth | 42mm |
| Color/Finish | Magnesium (Aluminium) |
| IP Protection Rating | IP40 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery Support | No |
| USB Output Power Rating | 15W |
| Supply Current Range | 0.5-0.5A |
| Mandatory Neutral Required | Yes |
| Terminal Marking Indication | Yes |
| Stress Test Conformity (1000V) | No |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Safety Standard | IEC 62684-2011-01 |
| Standby Consumption | Minimal |
| Brand | Legrand |
| Product Line | Arteor |
