Arteor 1-module USB socket with dual USB-C ports delivering 3A/15W charging power. Compact design with soft aluminum finish, low standby consumption, and IEC 62684:2018 compliance for optimal portable device charging.

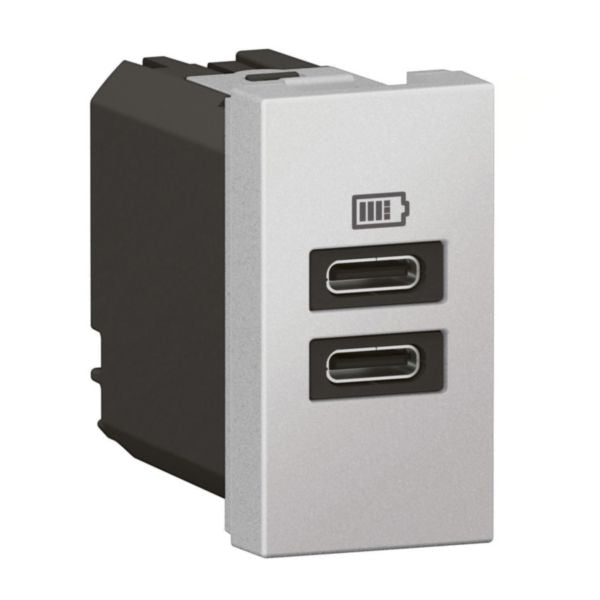

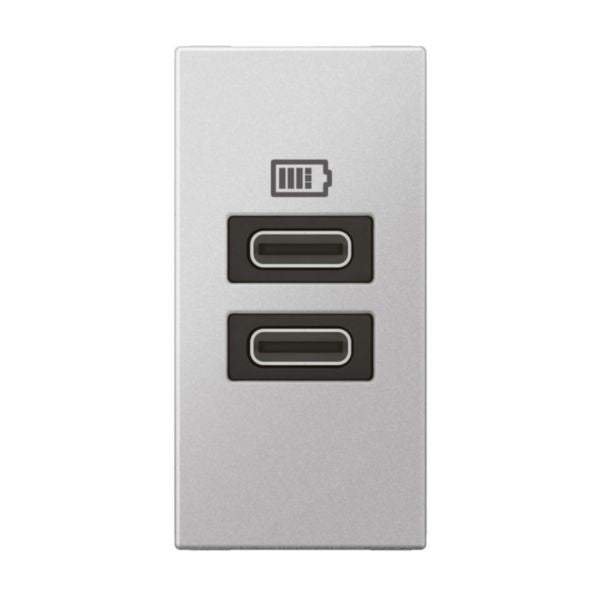

The Arteor™ 1 module USB socket with two USB Type-C ports delivers optimal charging performance for portable devices with 3A output and 15W power delivery. This compact single-module design maximizes space efficiency in modern installations while maintaining professional aesthetics with its soft aluminum finish in RAL 7040. The device features advanced energy management with exceptionally low standby power consumption of just 0.1W, making it an environmentally conscious choice for residential and commercial applications. Compliant with IEC 62684:2018 international standards, this flush-mounted socket ensures reliable and safe charging for smartphones, tablets, and portable power banks.
The USB socket incorporates dual USB-C ports that support simultaneous charging of multiple devices, eliminating the need for multiple adapters. With an operating voltage range of 100-240V and 50-60Hz frequency compatibility, it functions seamlessly across global electrical standards. The device maintains optimal performance within an operating temperature range of 5-40°C and features a robust construction with IP40 protection rating and IK04 impact resistance, suitable for indoor use. Installation is quick and straightforward with screwed terminal connections accommodating cable sections of 1.5-2.5mm², and the device integrates perfectly with Arteor range wiring systems.
Manufactured by Legrand, a global leader in electrical and digital building infrastructure, this USB charging module represents the perfect balance between functionality, safety, and modern design. The halogen-free construction demonstrates environmental responsibility, while the antimicrobial treatment option and wireless-free design ensure durability and reliability. Reference number 571695 with EAN 3414972243261 provides easy identification and procurement.
Key Features
- Dual USB Type-C ports for simultaneous charging of multiple portable devices
- 3A output current with 15W power delivery for fast and efficient charging
- Ultra-low standby power consumption of 0.1W for energy efficiency
- Compact single-module design maximizing space efficiency in modern installations
- IEC 62684:2018 compliant with global voltage compatibility 100-240V, 50-60Hz
- IP40 protection rating and IK04 impact resistance for reliable indoor performance
- Soft aluminum finish in RAL 7040 for professional aesthetic appeal
- Quick and easy flush-mounted installation with screwed terminal connections
- Halogen-free construction demonstrating environmental responsibility
- Operating temperature range 5-40°C with reliable performance stability
Technical Specifications
| Specification |
Value |
| Product Type | USB Charging Socket Module |
| Number of Modules | 1 module |
| USB Port Configuration | 2x USB Type-C ports, 0x USB-A ports |
| Operating Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage | 5V DC |
| Power Output | 15W |
| Standby Power Consumption | 0.1W |
| Active Power Consumption | 0.083W |
| Connection Type | Screwed terminal |
| Mounting Method | Flush-mounted |
| Color | Soft Aluminum |
| RAL Number | 7040 |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Protection Degree (IP Rating) | IP40 |
| Impact Strength (IK Rating) | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery Support | No |
| Supply Current Range | 0.5A |
| Mandatory Neutral | Yes |
| Terminal Marking | Yes |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Section | 1.5-2.5 mm² |
| Cable Nature | Flexible or rigid |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Compliance Standard | IEC 62684:2018 |
| Reference Number | 571695 |
| EAN Code | 3414972243261 |
| Manufacturer | Legrand |
| Product Range | Arteor™ |
