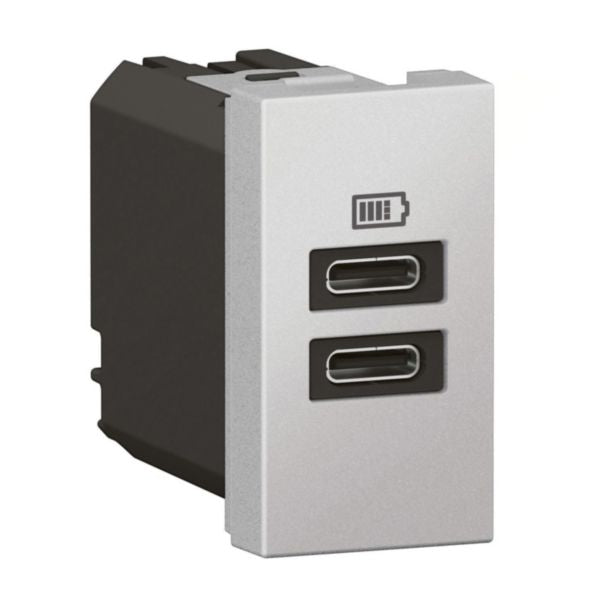

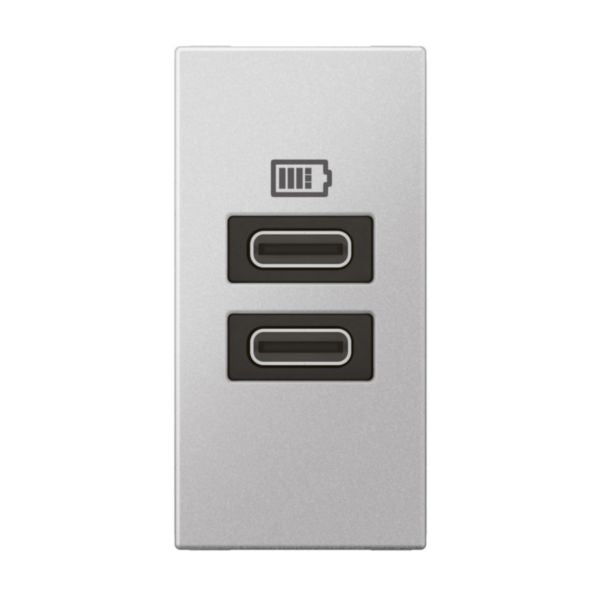

Shop Legrand Arteor USB Dual Port Type-C + Type-C 3A 15W Soft Aluminum | 571695 In Iraq Best Prices
Compact 1-module USB dual Type-C charging outlet with 3A 15W power delivery, soft aluminum finish, IEC 62684:2018 compliant, ideal for smartphones and tablets.
The Arteor 1 module USB two ports C+C 3A 15W in Soft Aluminum is a premium charging solution designed for modern portable devices. This compact flush-mounted module features dual USB Type-C ports capable of delivering 3A at 15W output power, making it ideal for simultaneously charging smartphones, tablets, and power banks. The device operates on standard AC voltage (100-240V, 50-60Hz) and maintains exceptional energy efficiency with a standby power consumption of just 0.1W, ensuring minimal energy waste when not in active use.
Designed with the Arteor international wiring system, this module combines functionality with elegant aesthetics in a soft aluminum finish (RAL 7040). The product conforms to IEC 62684:2018 standards, guaranteeing compatibility and safety for all connected devices. With its quick and easy connection through screwed terminals (1.5-2.5 mm²), installation is straightforward for both residential and commercial applications. The module is suitable for indoor use only and features an IP40 degree of protection with IK04 impact resistance, making it durable for everyday environments.
This innovative charging module represents the perfect balance between modern technology and practical design. The halogen-free construction ensures environmental safety, while the compact 1-module format provides space-saving benefits in any installation. Whether upgrading existing installations or creating new smart home solutions, the Arteor USB dual port module delivers reliable, fast charging capabilities with professional-grade quality and performance.
Key Features
- Dual USB Type-C ports for simultaneous charging of multiple devices
- 3A maximum output current with 15W power delivery capability
- Ultra-low standby power consumption of only 0.1W for energy efficiency
- IEC 62684:2018 compliant ensuring universal device compatibility
- Compact 1-module design maximizing space efficiency in installations
- Halogen-free construction for environmental safety
- IP40 degree of protection with IK04 impact resistance
- Soft aluminum finish (RAL 7040) for elegant aesthetic appeal
- Quick and easy screwed terminal connection (1.5-2.5 mm²)
- Operates on universal AC voltage (100-240V, 50-60Hz)
Technical Specifications
| Specification |
Value |
| Product Series | Arteor (International) |
| Module Configuration | 1 Module |
| USB Port Type | 2x USB Type-C |
| Maximum Output Current | 3000 mA (3A) |
| Output Power | 15W |
| Output Voltage | 5V DC |
| Operating Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption | 0.083W (Operating), 0.1W (Standby) |
| Connection Type | Screwed Terminal |
| Terminal Capacity | 1.5-2.5 mm² |
| Mounting Method | Flush-mounted |
| Device Dimensions | Width: 22.5mm, Height: 45mm, Depth: 41mm |
| Built-in Depth | 32.5mm |
| Minimum Installation Box Depth | 40mm |
| Color | Soft Aluminum |
| RAL Number | 7040 |
| Degree of Protection | IP40 |
| Impact Strength | IK04 |
| Operating Temperature | 5-40°C |
| Storage Temperature | -20-70°C |
| Voltage Type | AC (Alternating Current) |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Number of Terminals | 2 |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Stress Test Conformity (1000V) | No |
| Cable Nature | Flexible or Rigid |
| Standards Compliance | IEC 62684:2018 |
| Reference Number | 571695 |
| EAN Code | 3414972243261 |
| Manufacturer | Legrand |
