Shop Legrand Arteor USB Dual Port Type-C + Type-C 3A 15W Champagne | 571694 In Iraq Best Prices
Premium dual USB-C charging socket with 3A output and 15W power delivery. Compact 1-module design with low standby consumption (0.1W) and IEC 62684:2018 compliance for smartphones, tablets, and powerbanks.

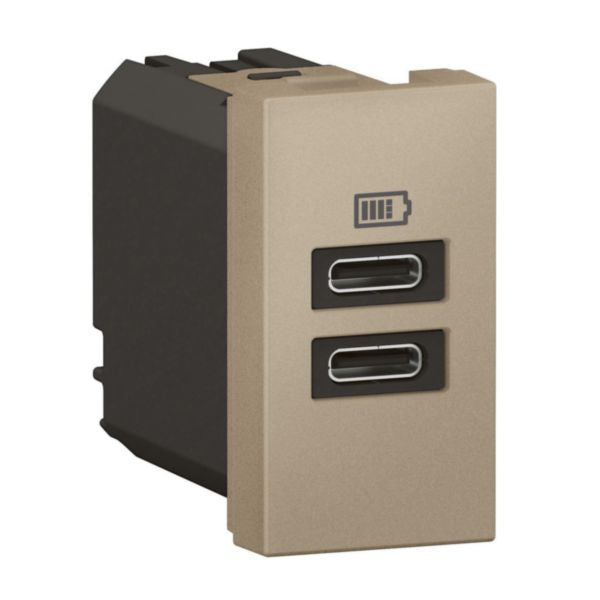

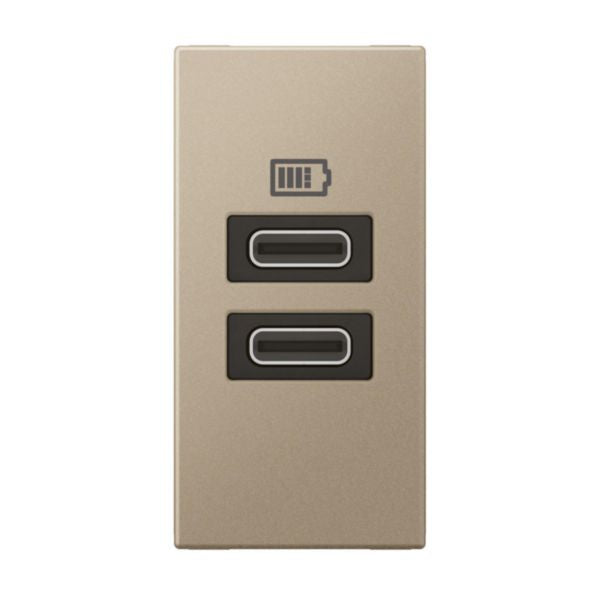

The Arteor™ 1 module USB two ports C+C 3A 15W in Champagne is a premium charging solution designed for modern portable devices. This compact flush-mounted socket features dual USB-C ports with 3A output capacity and 15W power delivery, making it ideal for simultaneously charging smartphones, tablets, and powerbanks. The device operates on standard AC voltage (100-240V, 50-60Hz) and is fully compliant with IEC 62684:2018 standards for USB charging interoperability.
Designed with convenience and space efficiency in mind, this 1-module unit offers quick and easy installation with screwed terminal connections suitable for flexible or rigid cables (1.5-2.5 mm²). The champagne color finish complements the Arteor design range, providing a sophisticated aesthetic for residential and commercial applications. With an exceptionally low standby power consumption of just 0.1W, this USB socket module demonstrates energy efficiency while maintaining reliable performance.
The device is engineered for indoor use only and features an IP40 degree of protection with IK04 impact strength rating. Built-in depth of 32.5mm accommodates standard installation boxes with minimum depth of 40mm. Terminal marking indication and halogen-free construction ensure safety and environmental compliance. Perfect for modern homes, offices, and hospitality environments where convenient device charging is essential.
Key Features
- Dual USB-C ports for simultaneous charging of multiple devices
- 3A output current with 15W power delivery capability
- Ultra-low standby power consumption of 0.1W for energy efficiency
- Compact 1-module design for space-saving installation
- IEC 62684:2018 compliant for universal USB charging compatibility
- Quick and easy flush-mounted installation with screwed terminals
- IP40 protection degree with IK04 impact strength rating
- Operating voltage range 100-240V AC, 50-60Hz universal compatibility
- Halogen-free construction for environmental safety
- Champagne color finish matching Arteor design range
Technical Specifications
| Specification |
Value |
| Product Type | USB Socket Module - Dual Port C+C |
| Number of Modules | 1 module |
| USB Port Configuration | 2 x USB-C ports (Type-C) |
| Operating Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage | 5V DC |
| Power Output | 15W |
| Power Consumption (Active) | 0.083W |
| Standby Power Consumption | 0.1W |
| Supply Current | 0.5A |
| Connection Type | Screwed terminal |
| Cable Compatibility | Flexible or rigid, 1.5-2.5 mm² cross-section |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Mounting Method | Flush-mounted |
| Device Dimensions (Width) | 22.5 mm |
| Device Dimensions (Height) | 45 mm |
| Device Dimensions (Depth) | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Degree of Protection (IP) | IP40 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Color | Champagne |
| Voltage Type | AC |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Terminal Marking | Yes |
| Mandatory Neutral | Yes |
| Conformity Standards | IEC 62684:2018 |
| Reference Number | 571694 |
| EAN Code | 3414972243193 |
Order Legrand Arteor USB Dual Port Type-C + Type-C 3A 15W Champagne | 571694 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
