Premium Arteor USB charging socket with dual USB-A and USB-C ports delivering 15W power for optimal device charging. Features compact 1-module design, ultra-low 0.1W standby consumption, and IEC 62684:2018 compliance for residential and commercial applications.

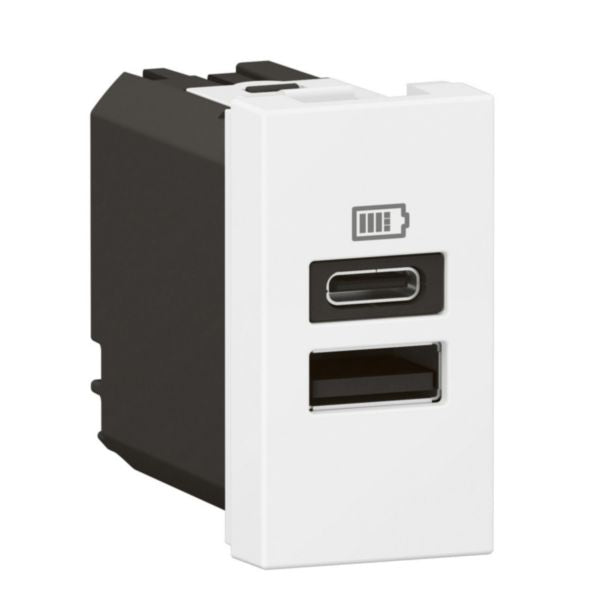

The Arteor 1 module USB socket with two ports (USB-A and USB-C) delivers optimal charging performance for portable devices with a maximum output of 3A at 15W power. This compact single-module design maximizes space efficiency while maintaining premium quality standards. The device features an exceptionally low standby power consumption of just 0.1W, making it energy-efficient for continuous installations. Compliant with IEC 62684:2018 international standards, this USB charging module is supplied without a cord and designed for flush-mounted installation in standard electrical boxes.
The white-colored socket (RAL 9003) features dual USB ports that accommodate both traditional USB-A devices and modern USB-C enabled smartphones, tablets, and power banks. With a rated operating voltage of 100-240V and frequency range of 50-60Hz, this universal voltage device is suitable for global applications. The terminal marking indication ensures proper installation, while the screwed terminal connection type provides secure and reliable electrical contact. The device dimensions of 22.5mm width, 45mm height, and 41mm depth make it compatible with standard European flush-mounted installation boxes requiring a minimum depth of 40mm.
Designed specifically for indoor use, the Arteor USB module meets rigorous safety and performance standards with IK04 impact resistance and IP40 degree of protection. The halogen-free construction ensures environmental compliance and safety in case of fire. Quick and easy connection procedures make installation straightforward for electricians and end-users alike. This professional-grade charging solution is perfect for residential, commercial, and hospitality applications where convenient device charging is essential.
Key Features
- Dual USB ports (USB-A and USB-C) for universal device compatibility
- 15W maximum output power with 3A current capacity for fast charging
- Ultra-low 0.1W standby power consumption for energy efficiency
- Compact 1-module design maximizes space efficiency in electrical installations
- IEC 62684:2018 compliance ensures international safety and performance standards
- Universal 100-240V input voltage suitable for global applications
- IP40 degree of protection and IK04 impact resistance for durability
- Halogen-free construction for environmental and fire safety compliance
- Quick and easy connection with screwed terminal for secure installation
- Suitable for indoor use in residential, commercial, and hospitality settings
Technical Specifications
| Specification |
Value |
| Product Model | Arteor 1 Module USB Socket |
| Reference Number | 571688 |
| EAN Code | 3414972242998 |
| Number of Modules | 1 |
| USB Ports Configuration | 1x USB-A + 1x USB-C |
| Operating Voltage | 100-240V AC |
| Frequency Range | 50-60 Hz |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage | 5V DC |
| USB Output Power | 15W |
| Standby Power Consumption | 0.1W |
| Operating Power Consumption | 0.091W |
| Connection Type | Screwed Terminal |
| Terminal Capacity | 1.5-2.5 mm² |
| Number of Terminals | 2 |
| Mounting Method | Flush-mounted |
| Color | White (RAL 9003) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Box Depth | 40 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Stress Test Conformity (1000V) | No |
| Cable Nature for Connection | Flexible or Rigid |
| Cable Section | 1.5-2.5 mm² |
| Supply Current Range | 0.5-0.5A |
| International Standard Compliance | IEC 62684:2018 |
| Installation Type | Indoor Use Only |
| Product Range | Arteor (International) |
