Shop Legrand Arteor USB Dual Port Type-A + Type-C 3A 15W Magnesium | 571689 In Iraq Best Prices
Compact 1-module USB charging outlet with dual ports (A+C), 3A/15W output, magnesium finish, IEC 62684:2018 compliant, ideal for smartphones and tablets

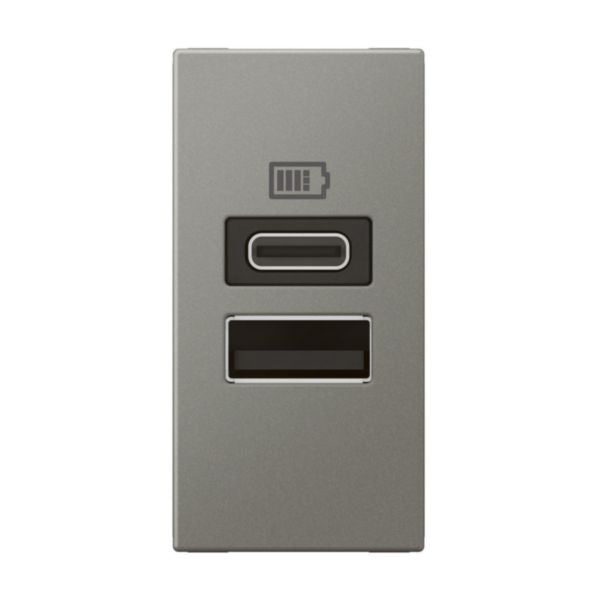

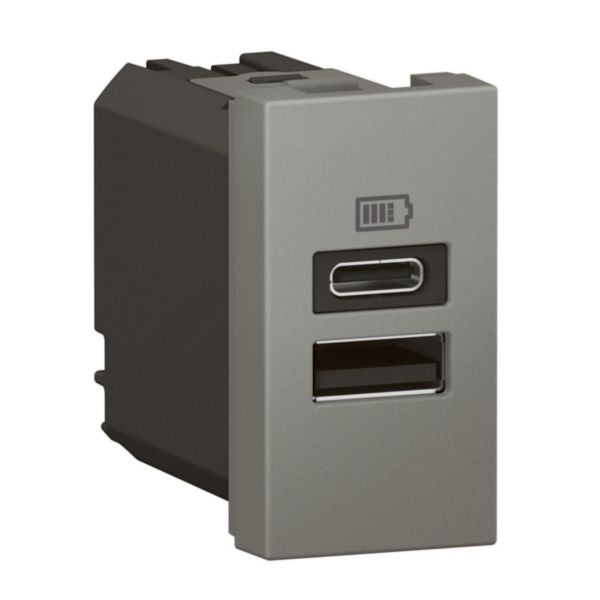

The Arteor™ 1 module USB two ports A+C outlet is a premium charging solution designed for modern portable devices. This compact single-module outlet features one USB-A port and one USB-C port, delivering 3A at 15W output power for optimal charging of smartphones, tablets, and power banks. With its sleek magnesium finish and space-saving design, this flush-mounted outlet integrates seamlessly into any residential or commercial interior setting.
This USB charging module is engineered to meet international standards including IEC 62684:2018 compliance, ensuring safe and reliable charging for all compatible devices. The outlet features advanced power management with ultra-low standby power consumption of just 0.1W, helping reduce energy waste when not in active use. The device operates on standard AC voltage (100-240V, 50-60Hz) and is supplied without a cord for flexible installation options.
The Arteor™ USB outlet is ideal for quick and easy installation with its screwed terminal connection system and flush-mounted configuration. Its durable construction, rated for IP40 protection and IK04 impact strength, ensures long-lasting performance in indoor environments. The magnesium color variant adds a contemporary aesthetic touch while maintaining excellent electrical safety features including halogen-free materials and proper terminal marking for secure connections.
Key Features
- Dual USB ports (1x USB-A and 1x USB-C) for simultaneous device charging
- 3A output current with 15W power delivery for optimal device charging
- Ultra-low standby power consumption of 0.1W for energy efficiency
- IEC 62684:2018 compliant for safe and reliable charging performance
- Compact 1-module design for space-saving flush-mounted installation
- Magnesium finish with contemporary aesthetic design
- IP40 protection rating and IK04 impact strength for durability
- Quick and easy installation with screwed terminal connection
- Halogen-free materials for environmental safety
- Suitable for charging smartphones, tablets, and power banks
Technical Specifications
| Specification |
Value |
| Product Name | Arteor™ 1 Module USB Two Ports A+C |
| SKU/Reference | 571689 |
| EAN Code | 3414972243049 |
| Brand | Legrand |
| Number of Modules | 1 |
| USB Ports Configuration | 1x USB-A + 1x USB-C |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage | 5V |
| USB Output Power | 15W |
| Operating Voltage Range | 100-240V AC |
| Frequency Range | 50-60 Hz |
| Power Consumption | 0.091W (Normal), 0.1W (Standby) |
| Supply Current | 0.5A |
| Connection Type | Screwed Terminal |
| Mounting Method | Flush-mounted |
| Color | Magnesium (Aluminium) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Protection Rating (IP) | IP40 |
| Impact Strength Rating (IK) | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC (Alternating Current) |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Section | 1.5-2.5 mm² |
| Cable Type | Flexible or Rigid |
| Terminal Marking | Yes |
| Halogen Free | Yes |
| Stress Test Conformity (1000V) | No |
| Compliance Standards | IEC 62684:2018 |
| Recommended Use | Indoor use only |
| Installation Type | Quick and easy connection |
| Suitable Applications | Charging smartphones, tablets, power banks |
Order Legrand Arteor USB Dual Port Type-A + Type-C 3A 15W Magnesium | 571689 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
