Shop Legrand Arteor USB Two Ports A+C 3A 15W Champagne Module | 571690 In Iraq Best Prices
Compact 1-module USB charging socket with dual USB-A and USB-C ports delivering 3A at 15W. Features quick connection, minimal standby power consumption, and compliance with IEC 62684:2018 standards. Perfect for smartphones, tablets, and power banks.

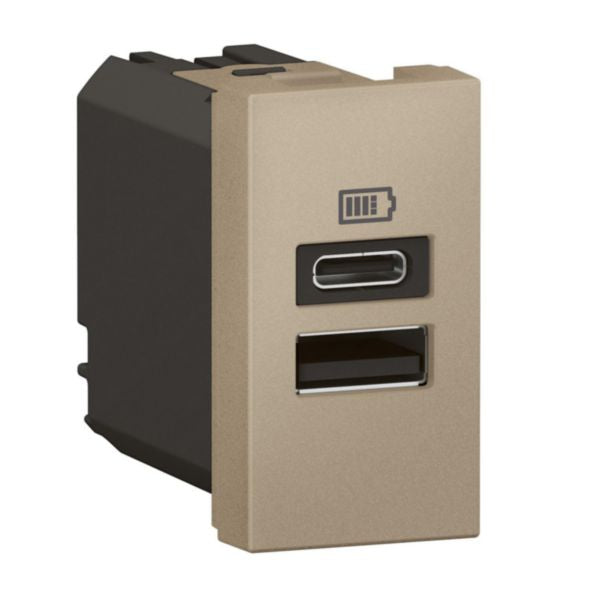

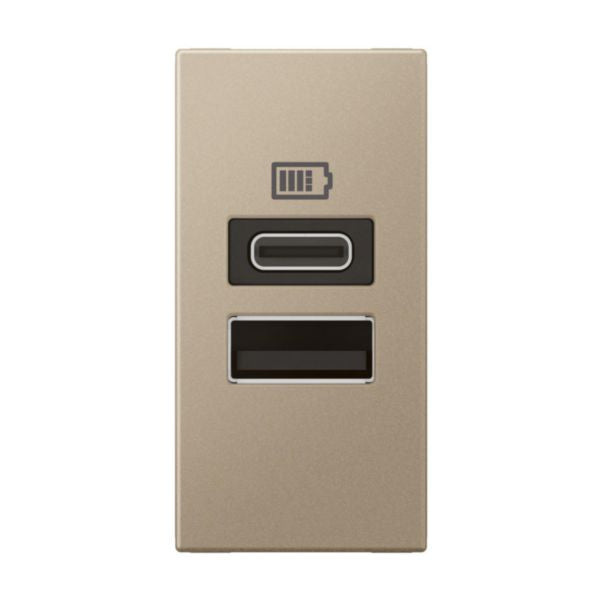

The Arteor™ 1 module USB socket with two ports (USB-A and USB-C) is a modern charging solution designed for contemporary homes and offices. This compact module delivers 3A at 15W output power, making it ideal for simultaneously charging smartphones, tablets, and power banks. The device features quick and easy connection with screwed terminals, ensuring secure installation in flush-mounted boxes. With a sleek champagne finish, it seamlessly integrates into any interior design while maintaining professional aesthetics.
This USB charging module is engineered for optimal performance and safety, complying with IEC 62684:2018 standards. The device operates on standard AC voltage (100-240V, 50-60Hz) and includes intelligent power management with minimal standby consumption of just 0.1W, reducing energy waste. The compact 1-module format provides space-saving benefits while delivering powerful charging capabilities for multiple devices simultaneously. Its IP40 protection rating and IK04 impact strength make it suitable for typical indoor residential and commercial environments.
The Arteor USB module is supplied without cord and features halogen-free materials, making it an environmentally responsible choice. Installation is straightforward with terminal marking indicators and flexible cable compatibility (1.5-2.5mm² section). The operating temperature range of 5-40°C ensures reliable performance in most indoor settings. This product represents the perfect balance between functionality, design, and energy efficiency for modern electrical installations.
Key Features
- Dual USB ports (USB-A and USB-C) for simultaneous charging of multiple devices
- Compact 1-module design for space-saving installation
- 3A output at 15W power delivery for fast charging capabilities
- Low standby power consumption of only 0.1W for energy efficiency
- IEC 62684:2018 compliant with halogen-free materials
- IP40 protection rating suitable for indoor residential and commercial use
- Quick and easy screw terminal connection with flexible cable compatibility
- Champagne finish for modern aesthetic appeal and interior integration
Technical Specifications
| Specification |
Value |
| Product Type | USB Charging Module Socket |
| Number of Modules | 1 module |
| USB Ports Configuration | 1x USB-A + 1x USB-C |
| Output Current | 3000 mA (3A) maximum |
| Output Power | 15W |
| Output Voltage | 5V |
| Input Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption (Standby) | 0.091W (0.1W) |
| Connection Type | Screwed terminal |
| Mounting Method | Flush-mounted |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Box Depth | 40 mm |
| Protection Rating | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature | 5-40°C |
| Storage Temperature | -20-70°C |
| Colour | Champagne |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Section | 1.5-2.5 mm² |
| Number of Terminals | 2 |
| Halogen Free | Yes |
| Wireless Capability | No |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Supply Current | 0.5A |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Standards Compliance | IEC 62684:2018 |
| SKU/Reference | 571690 |
| EAN Code | 3414972243025 |
| Supplied With | Without cord |
