Shop Legrand Arteor USB Dual Port Type-A + Type-A 3A 15W Champagne | 571686 In Iraq Best Prices
Compact 1-module USB socket with dual A+A ports delivering 3A/15W for efficient charging of smartphones, tablets, and portable devices with low standby consumption and IEC 62684:2018 compliance.

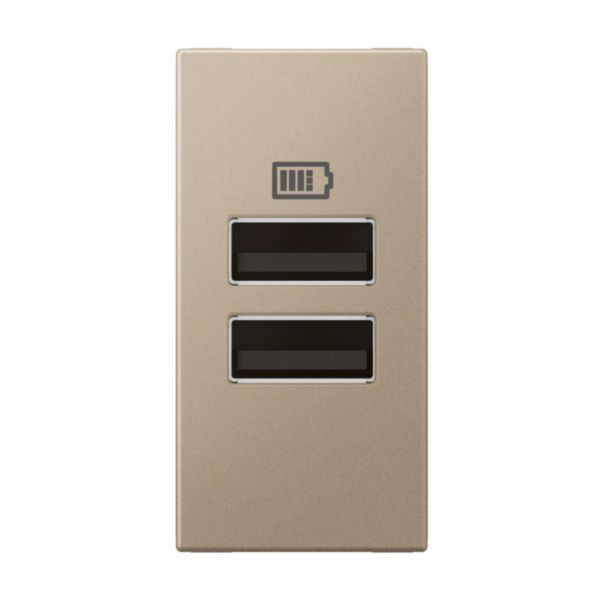

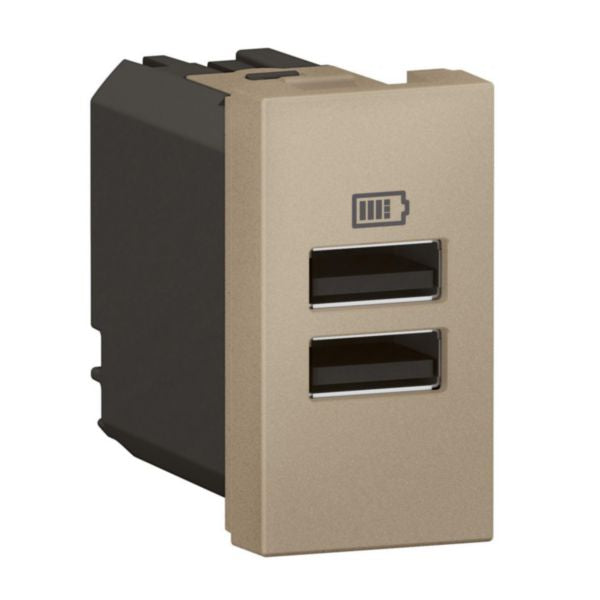

The Arteor™ 1 module USB socket with two A+A ports delivers reliable and efficient charging for portable devices with a maximum output of 3A and 15W power capacity. This compact single-module design is engineered for optimal space efficiency in modern home and building installations, making it ideal for charging smartphones, tablets, and power banks simultaneously. The device features low standby power consumption of just 0.1W, ensuring energy efficiency when not in active use, and is fully compliant with the IEC 62684:2018 standard for universal charging compatibility.
Designed specifically for indoor use, this flush-mounted USB socket integrates seamlessly into the Arteor™ wiring device range with its elegant champagne finish. The socket operates on standard 100-240V AC power with 50-60Hz frequency compatibility, making it suitable for global installations. Its robust construction includes IK04 impact resistance and IP40 degree of protection, ensuring durability in typical indoor environments. The screwed terminal connection type allows for flexible or rigid cable integration with cross-sections ranging from 1.5 to 2.5 mm², providing secure and professional installation.
With quick and easy connection capabilities and terminal marking indication for simplified installation, this USB charging module represents the perfect solution for contemporary electrical installations requiring convenient device charging functionality. The Arteor™ collection offers aesthetic appeal combined with practical performance, making this module an essential addition to modern home automation and building control systems.
Key Features
- Dual USB A+A ports for simultaneous charging of two devices
- Compact 1-module design for space-efficient installation
- Low standby power consumption of 0.1W for energy efficiency
- IEC 62684:2018 compliant for universal charging compatibility
- Quick and easy connection with terminal marking indication
- IP40 degree of protection and IK04 impact resistance
- Operates on 100-240V AC with 50-60Hz frequency compatibility
- Flexible or rigid cable integration with 1.5-2.5 mm² capacity
- Elegant champagne finish matching Arteor™ design aesthetic
- Suitable for charging smartphones, tablets, and power banks
Technical Specifications
| Specification |
Value |
| Brand | Legrand Arteor™ |
| Model | USB Two Ports A+A |
| Reference Number | 571686 |
| EAN Code | 3414972242851 |
| Number of Modules | 1 module |
| USB Ports Configuration | 2 x USB-A ports |
| Maximum Output Current | 3000 mA (3A) |
| Output Power | 15W |
| Output Voltage | 5V |
| Operating Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption | 0.083W (operating), 0.1W (standby) |
| Mounting Method | Flush-mounted |
| Connection Type | Screwed terminal |
| Device Dimensions | Width 22.5mm x Height 45mm x Depth 41mm |
| Built-in Depth | 32.5mm |
| Minimum Installation Box Depth | 40mm |
| Cable Section Capacity | 1.5-2.5 mm² |
| Number of Terminals | 2 |
| Terminal Capacity | 1.5-2.5 mm² |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature | 5-40°C |
| Storage Temperature | -20-70°C |
| Voltage Type | AC |
| Power Delivery | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Terminal Marking Indication | Yes |
| Mandatory Neutral | Yes |
| Cable Nature | Flexible or rigid |
| Color | Champagne |
| Standards Compliance | IEC 62684:2018 |
| Suitable for Degree of Protection | IP40 |
