Shop Legrand Arteor USB Socket 1 Module Dual Port A+A 3A 15W Magnesium | 571685 In Iraq Best Prices
Premium 1-module USB socket with dual USB-A ports, 3A output, 15W power delivery, and elegant Magnesium finish for efficient charging of multiple devices in modern spaces

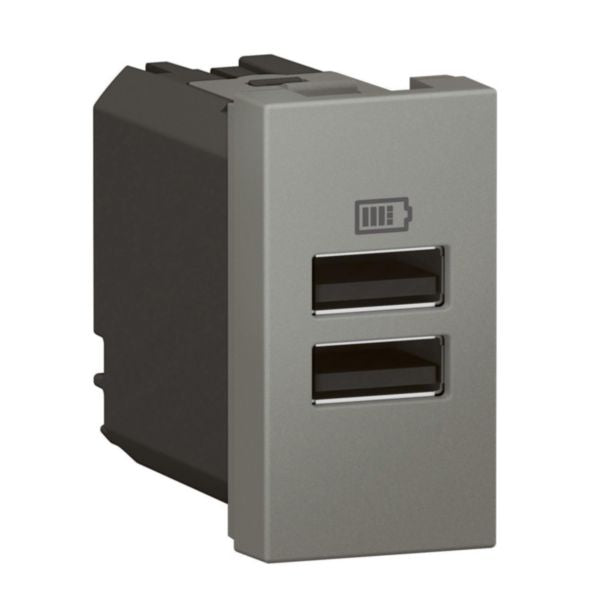

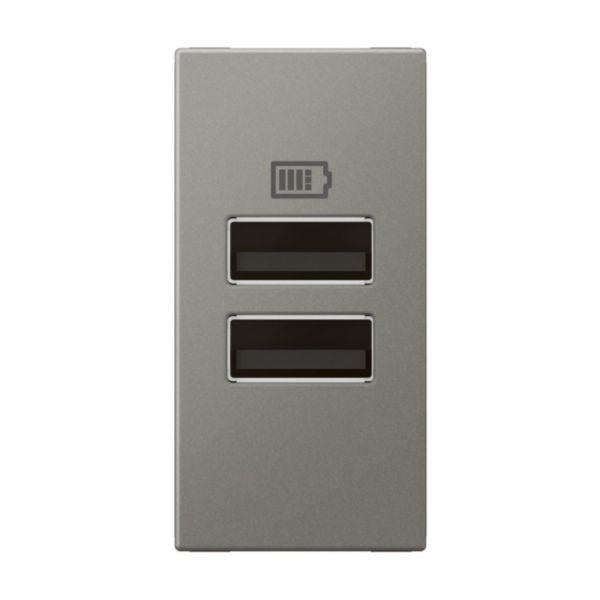

The Arteor USB socket is a premium 1-module charging solution designed for seamless integration into modern homes and commercial spaces. Featuring dual USB-A ports with a combined output of 3A and 15W power delivery, this socket enables simultaneous charging of multiple portable devices including smartphones, tablets, and power banks. The compact 1-module design maximizes space efficiency while maintaining the elegant Magnesium finish that complements contemporary interior aesthetics.
This USB charging socket combines functionality with reliability, featuring a standby power consumption of just 0.1W to minimize energy waste. Built to strict IEC 62684:2018 standards, it ensures safe and efficient charging for all compatible devices. The socket operates on standard AC voltage (100-240V, 50-60Hz) and provides consistent 5V output, making it universally compatible with standard USB-A powered devices.
Installation is quick and straightforward with screwed terminal connections suitable for 1.5-2.5mm² cable sections. The IP40 protection rating and IK04 impact resistance ensure durability in typical indoor environments. Halogen-free construction aligns with modern environmental standards, while the flush-mounted installation method provides a clean, integrated appearance. Perfect for residential applications, offices, and commercial spaces requiring convenient device charging capabilities.
Key Features
- Dual USB-A ports for simultaneous charging of two devices
- 3A maximum output current with 15W total power delivery
- Low standby power consumption of only 0.1W
- Compact 1-module design for space-efficient installation
- IEC 62684:2018 certified for safe and reliable charging
- Halogen-free construction meeting modern environmental standards
- IP40 protection rating suitable for indoor use
- IK04 impact resistance for durability
- Quick and easy screwed terminal connection
- Elegant Magnesium finish complementing contemporary interiors
Technical Specifications
| Specification |
Value |
| Product Type | USB Socket Module |
| Number of Modules | 1 module |
| USB Ports Configuration | 2x USB-A ports |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage | 5V DC |
| Power Output | 15W |
| Operating Voltage | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption (Standby) | 0.1W |
| Power Consumption (Operating) | 0.083W |
| Connection Type | Screwed terminal |
| Cable Capacity | 1.5-2.5 mm² |
| Mounting Method | Flush-mounted |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 41 mm |
| Built-in Depth | 32.5 mm |
| Minimum Installation Box Depth | 40 mm |
| Color/Finish | Magnesium |
| Protection Rating (IP) | IP40 |
| Impact Resistance Rating (IK) | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Number of Terminals | 2 |
| Voltage Type | AC |
| Power Delivery Support | No |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Standards Compliance | IEC 62684:2018 |
| Reference Number | 571685 |
| EAN Code | 3414972242875 |
| Suitable Use | Indoor use only |
| Application | Charging smartphones, tablets, power banks |
Order Legrand Arteor USB Socket 1 Module Dual Port A+A 3A 15W Magnesium | 571685 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
