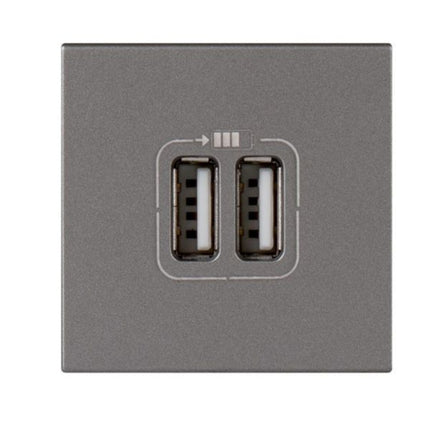

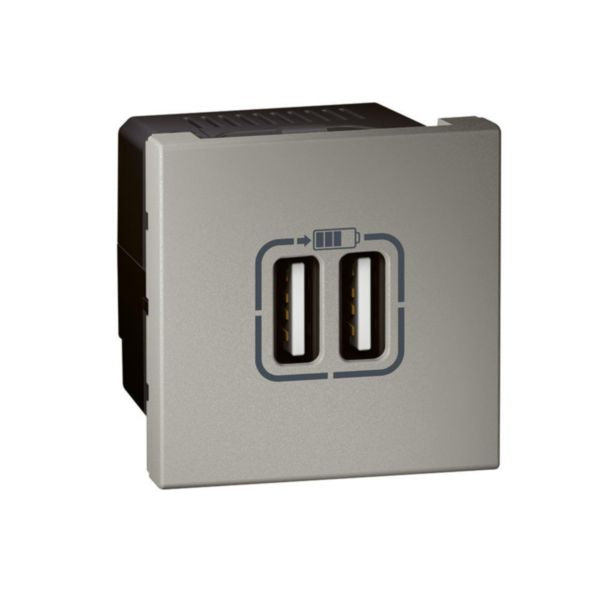

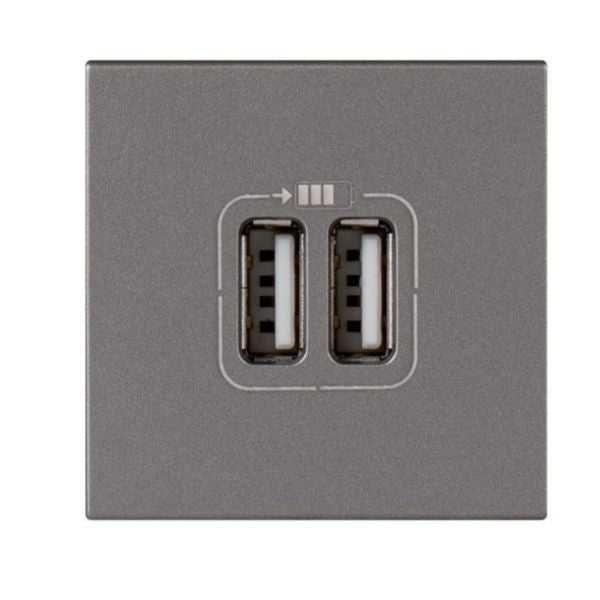

Shop Legrand Arteor USB Power Supply Double USB Sockets 5V 1500mA 2 Module Magnesium | 572578 In Iraq Best Prices
Fast-charging USB power supply with dual USB sockets delivering 5V/2400mA output for simultaneous device charging. Features energy-efficient design, international compliance, and elegant magnesium finish.
The Arteor™ USB Power Supply features double USB sockets designed for fast charging of portable devices including smartphones, tablets, MP3/MP4 players, and other USB-compatible electronics. This innovative charging solution delivers 5V output with 2400 mA capacity (1500 mA until July 1, 2016), enabling simultaneous charging of two devices at optimal speeds. The device conforms to IEC 62684-2011-01 international standards and features a sophisticated passive mode consumption of just 0.1W, making it energy-efficient for continuous installation.
The Arteor USB socket module system comprises 2 modules housed in an elegant magnesium finish with aluminum coloring (RAL 7040). It features a square version design supplied with rocker plates that integrate seamlessly with support frames and decorative plates. The device measures 45mm width and height with a 42mm depth, requiring a minimum built-in installation box depth of 40mm. Connection is achieved through reliable 2.5mm² screw terminals, supporting cable sections from 1.5-2.5mm². The unit operates across standard international voltages (100-240V AC, 50-60Hz) and maintains optimal performance within the 5-40°C operating temperature range.
This USB power supply is certified for IP40 degree of protection and IK04 impact strength rating, ensuring durability in residential and commercial environments. The halogen-free construction meets environmental compliance standards including RoHS Directive and REACH Declaration requirements. The device can be installed in receptacles for floor sockets, offering flexible installation options. With its combination of fast charging capability, energy efficiency, international compliance, and elegant design, the Arteor USB Power Supply represents an essential modern wiring device for any contemporary electrical installation.
Key Features
- Double USB sockets for simultaneous charging of two portable devices
- Fast charging capability with 2400 mA output (1500 mA legacy support)
- Energy-efficient with only 0.1W passive mode consumption
- International voltage compatibility 100-240V AC, 50-60Hz
- IEC 62684-2011-01 compliant for USB charging standards
- IP40 protection and IK04 impact strength rating
- Halogen-free construction meeting RoHS and REACH standards
- Elegant magnesium finish with aluminum coloring (RAL 7040)
- 2-module design with integrated rocker plates
- Flexible installation in floor socket receptacles
- Reliable screw terminal connections (1.5-2.5mm²)
- Operating temperature range 5-40°C for stable performance
Technical Specifications
| Specification |
Value |
| Product Name | Arteor USB Power Supply - Double USB Sockets |
| Reference Number | 572578 |
| EAN Code | 3245065725780 |
| Brand | Legrand |
| Product Series | Arteor™ |
| Number of Modules | 2 |
| Number of USB-A Ports | 2 |
| Number of USB-C Ports | 0 |
| Output Voltage | 5V DC |
| Maximum Output Current | 2400 mA (1500 mA legacy) |
| USB Output Power | 15W |
| Input Voltage Range | 100-240V AC |
| Frequency | 50-60 Hz |
| Power Consumption (Passive Mode) | 0.1W |
| Connection Type | Screw Terminals |
| Terminal Capacity | 1.5-2.5 mm² |
| Cable Section | 1.5-2.5 mm² |
| Mounting Method | Module Frame System |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42 mm |
| Minimum Built-in Box Depth | 40 mm |
| Built-in Installation Depth | 33.5 mm |
| Color | Aluminium/Magnesium |
| RAL Number | 7040 |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5-40°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery Support | No |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Stress Test Conformity (1000V) | No |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Compliance Standards | IEC 62684-2011-01, RoHS Directive, REACH Declaration |
| Installation Location | Floor sockets and receptacles |
| Rocker Plates | Included |
| Support Frames | To be equipped separately |
