Shop Legrand Arteor TV Socket TV-SAT Shielded 0-2400 Hz 1 Module Magnesium | 572667 In Iraq Best Prices
Premium Arteor TV-SAT shielded socket with 0-2400 Hz frequency range, UHD compatibility, LTE-ready protection, and dual outlets for DVB-T, Cablecast, and satellite installations in magnesium finish.

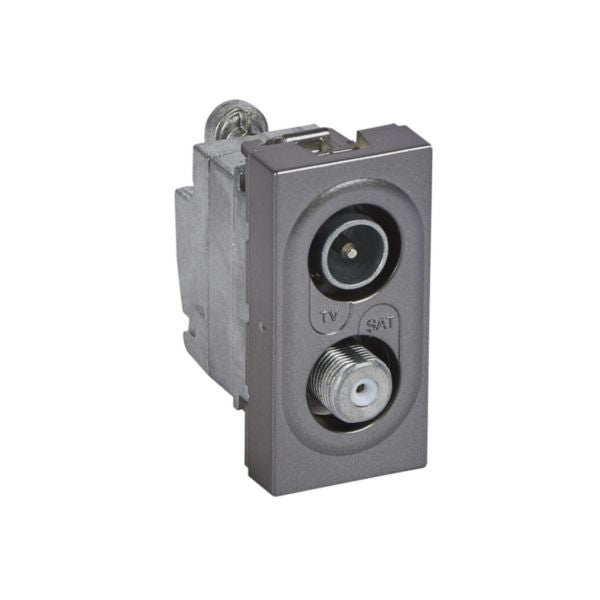

The Arteor™ TV Socket is a premium television outlet solution designed for modern home and building installations. This sophisticated TV-SAT shielded socket operates across a frequency range of 0-2400 Hz, making it compatible with DVB-T, Cablecast, and satellite installations. The socket features UHD TV quality compatibility and is equipped with advanced LTE-ready shielding (4G protected) to ensure optimal signal reception and protection against interference. The Class A shielded star socket design provides exceptional performance with low attenuation of only 1 dB at 860 MHz and 2 dB at 2150 MHz, meeting the rigorous European standards EN 50083-4 and EN 50083-2.
This single-module socket incorporates dual outlets for comprehensive connectivity: a male TV connector (Ø9.5 mm) supporting 5-68/120-862 MHz frequency range, and an R-band female connector (Ø87.5-108 MHz), plus an F-type SAT connector for 950-2400 MHz satellite reception. The magnesium finish provides both aesthetic appeal and durability, while the advanced star cabling architecture ensures each socket connects directly to the antenna, splitter, or multiswitch with visual connection verification. The device is housed in a robust duroplast material with halogen-free construction, meeting modern environmental and safety standards.
Designed for professional installation, the Arteor TV socket features an IK04 impact resistance rating and operates reliably between 5-45°C. The module requires a minimum built-in installation box depth of 27 mm and measures 22.5 mm in width and 45 mm in height. This socket is ideal for residential and commercial applications where reliable, high-quality television and satellite signal distribution is essential, offering superior shielding and performance for contemporary multimedia installations.
Key Features
- UHD TV quality compatible with advanced signal reception capabilities
- Class A shielded star socket design with LTE-ready 4G protection
- Low attenuation performance: 1 dB at 860 MHz and 2 dB at 2150 MHz
- Dual outlets: TV connector (5-68/120-862 MHz) and SAT F-type connector (950-2400 MHz)
- Meets European standards EN 50083-4 and EN 50083-2 for television distribution
- Halogen-free duroplast material with magnesium finish for durability
- IK04 impact resistance rating for reliable performance
- Visual connection verification system for proper installation confirmation
- Star cabling architecture for direct antenna, splitter, or multiswitch connection
- Operating temperature range 5-45°C with storage capability -25-70°C
Technical Specifications
| Specification |
Value |
| Product Name | Arteor™ TV Socket TV-SAT Shielded |
| Reference Number | 572667 |
| EAN Code | 3414970940988 |
| Model Type | End Socket |
| Socket Type | TV/SAT |
| Frequency Range | 0-2400 Hz |
| Number of Modules | 1 Module |
| Number of Outlets | 2 Outlets |
| TV Connector Type | Male connector (Ø9.5 mm) - 5-68/120-862 MHz |
| SAT Connector Type | F-type connector - 950-2400 MHz |
| Tap Loss at 860 MHz | 1.5 dB |
| Tap Loss at 2150 MHz | 2 dB |
| Attenuation Performance | Low attenuation: 1 dB |
| Shielding Class | Class A Shielded Star Socket |
| LTE Protection | 4G Protected LTE Ready |
| Mounting Method | Module Frame |
| Assembly Arrangement | Basic Element with Central Cover Plate |
| Material | Duroplast |
| Material Quality | Duroplast |
| Color | Magnesium Grey |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Halogen Free | Yes |
| Impact Strength Rating | IK04 |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Minimum Built-in Box Depth | 27 mm |
| Operating Temperature | 5-45°C |
| Storage Temperature | -25-70°C |
| DAB+ Compatible | No |
| Cable Modem Compatible | No |
| Remote Power Supply Compatible | Yes |
| Antimicrobial Treatment | No |
| European Standards Compliance | EN 50083-4 and EN 50083-2 |
| Installation Type | Flush-mounted with module frame |
| Cabling Architecture | Star Cabling (1 socket = 1 cable) |
| Recommended Coaxial Cable | 17 VATCA |
| Connection Verification | Visual Check of Connection |
| Brand | Legrand |
| Product Line | Arteor™ |
