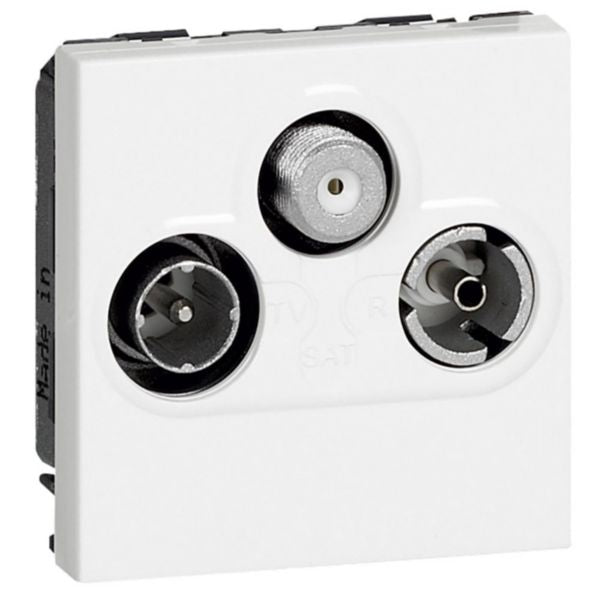

Shop Legrand Arteor TV Socket TV-R-SAT Shielded 0-2400 Hz 2 Modules White | 572172 In Iraq Best Prices
Professional 2-module TV-R-SAT shielded socket with 0-2400 MHz frequency range, 1.5 dB tap loss, DAB+ support, and white finish for seamless home network multimedia distribution.
The Arteor TV Socket TV-R-SAT Shielded is a professional-grade multimedia outlet designed for comprehensive home network distribution. This advanced 2-module socket accommodates television, radio, and satellite signals in a single integrated unit, providing seamless connectivity for modern residential installations. The shielded design ensures superior signal quality across the full frequency range from 0 to 2400 MHz, making it ideal for demanding multimedia applications.
This socket features three separate outlets supporting TV (5-68/120-862 MHz), radio (87.5-108 MHz), and SAT (950-2400 MHz) frequencies, with exceptional low tap loss specifications of 1.5 dB at 860 MHz and 2 dB at 2150 MHz. The unit is compatible with cable modems and supports remote power supply functionality, offering maximum flexibility for diverse installation scenarios. With DAB+ support and a 1.5 dB star loss rating, this socket delivers professional-grade performance for residential and small commercial applications.
Constructed from high-quality thermoplastic material, the Arteor socket features a sleek white finish that complements any modern interior. The module frame mounting system allows easy integration into standard DIN cabinets and 19" enclosures, while the IP21 degree of protection and IK04 impact strength ensure reliable operation in various environments. This product exemplifies Legrand's commitment to quality, reliability, and aesthetic excellence in home automation solutions.
Key Features
- Shielded design with comprehensive frequency coverage from 0-2400 MHz for superior signal quality
- Three integrated outlets supporting TV, Radio, and Satellite signals in single unit
- Exceptionally low tap loss of 1.5 dB at 860 MHz and 2 dB at 2150 MHz for optimal performance
- DAB+ support with 1.5 dB star loss rating for enhanced radio reception capabilities
- Module frame mounting system compatible with DIN cabinets and 19" enclosures for flexible installation
- Cable modem compatible with remote power supply functionality for maximum versatility
- IP21 degree of protection and IK04 impact strength for reliable operation in various environments
- Halogen-free thermoplastic construction with sleek white finish for modern aesthetic appeal
- Operates reliably within -5 to 35°C temperature range with storage capability to -10-70°C
- Professional-grade Legrand quality ensuring long-term reliability and performance
Technical Specifications
| Specification |
Value |
| Product Model | End Socket TV-R-SAT Shielded |
| Reference Number | 572172 |
| EAN Code | 3245065721720 |
| Number of Modules | 2 modules |
| Type of Socket Outlet | TV/RD/SAT |
| Number of Outlets | 3 outlets |
| TV Frequency Band | 5-68/120-862 MHz |
| Radio Frequency Band | 87.5-108 MHz |
| SAT Frequency Band | 950-2400 MHz |
| Total Frequency Range | 0-2400 MHz |
| Tap Loss at 860 MHz | 1.5 dB |
| Tap Loss at 2150 MHz | 2 dB |
| Star Loss Rating | 1.5 dB |
| DAB+ Support | Yes |
| Cable Modem Compatible | No |
| Remote Power Supply Support | Yes |
| Mounting Method | Module frame |
| Assembly Arrangement | Basic element with central cover plate |
| Color | White |
| RAL Number (Similar) | 9003 |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Surface Protection | Untreated |
| Surface Finishing | Glossy |
| Antimicrobial Treatment | No |
| Degree of Protection (IP) | IP21 |
| Degree of Impact Strength (IK) | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 32.5 mm |
| Built-in Depth | 28 mm |
| Minimum Built-in Installation Box Depth | 40 mm |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Brand | Legrand |
| Product Line | Arteor |
| Category | Home and Building Wiring Devices |
| Subcategory | Sockets, USB Sockets, Data Sockets and Other Sockets |
