Premium 2-module TV-R-SAT-SAT shielded socket with UHD compatibility, LTE protection, and low attenuation for superior digital television reception and multimedia distribution.

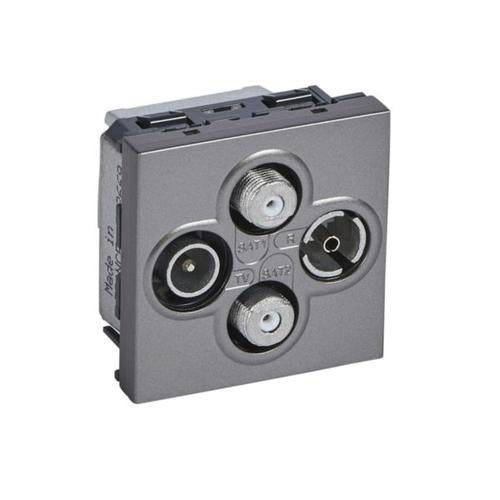

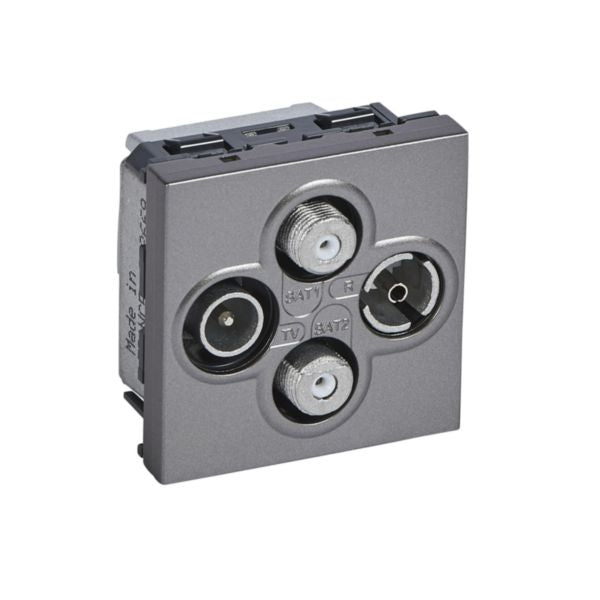

The Arteor™ TV socket is a premium multi-outlet socket system designed for advanced television reception and multimedia connectivity. This sophisticated 2-module socket combines TV, radio, and dual satellite (SAT-SAT) reception capabilities in a single, elegantly designed unit. Featuring Class A shielded star socket technology, it is fully LTE ready (4G protected) and compatible with UHD TV quality standards, ensuring crystal-clear signal reception for modern digital television broadcasting. The socket operates across a comprehensive frequency range: TV at 5-68/120-862 MHz, R (Radio) at 87.5-108 MHz, and SAT at 950-2400 MHz, meeting the strictest European standards EN 50083-4 and EN 50083-2.
This advanced socket system is engineered for professional installation in residential and commercial environments. The star cabling configuration ensures optimal signal integrity, with each socket requiring a dedicated cable to the antenna, splitter, or multiswitch. The low attenuation specifications (1.5 dB at 860 MHz and 2 dB at 2150 MHz) guarantee minimal signal loss and superior picture quality. The magnesium finish provides a sophisticated, modern aesthetic while maintaining exceptional durability. The unit features visual connection verification and is compatible with remote power supply systems, making it ideal for complex home automation and building control installations.
The Arteor™ socket is constructed from halogen-free duroplast material with an IK04 impact resistance rating, ensuring longevity and safety. With its compact dimensions (45mm width and height, 40mm depth) and minimal installation depth requirement (27mm), it integrates seamlessly into standard receptacles and floor socket installations. The operating temperature range of 5-45°C ensures reliable performance across diverse climatic conditions, while the storage temperature range of -25-70°C provides flexibility for inventory management. This product represents the pinnacle of modern socket technology for professional television and multimedia distribution systems.
Key Features
- Class A shielded star socket technology with LTE 4G protection for superior signal integrity
- Multi-outlet configuration: TV, Radio, and dual Satellite (SAT-SAT) reception in single unit
- UHD TV quality compatible with comprehensive frequency range (5-2400 MHz)
- Low attenuation specifications: 1.5 dB at 860 MHz and 2 dB at 2150 MHz for minimal signal loss
- Halogen-free duroplast construction with IK04 impact resistance and magnesium finish
- Meets European standards EN 50083-4 and EN 50083-2 for broadcasting quality assurance
- Remote power supply compatible for integrated smart home and building automation
- Visual connection verification and star cabling support for professional installations
- Compact design: 45mm width/height with minimal 27mm installation depth requirement
- Wide operating temperature range (5-45°C) with extended storage capability (-25-70°C)
Technical Specifications
| Specification |
Value |
| Product Name | Arteor™ TV Socket TV-R-SAT-SAT Shielded |
| Reference Number | 572669 |
| EAN Code | 3414970941015 |
| Brand | LEGRAND |
| Socket Type | TV/RD/SAT Multi-outlet End Socket |
| Number of Modules | 2 modules |
| Number of Outlets | 4 outlets (TV, R, SAT, SAT) |
| TV Frequency Range | 5-68 MHz and 120-862 MHz (male connector Ø9.5 mm) |
| Radio Frequency Range | 87.5-108 MHz (female connector Ø9.5 mm) |
| SAT Frequency Range | 950-2400 MHz (F-type connector) |
| Tap Loss at 860 MHz | 1.5 dB |
| Tap Loss at 2150 MHz | 2 dB |
| Shielding Classification | Class A Shielded Star Socket |
| LTE Protection | Yes - 4G Protected and Ready |
| UHD TV Compatible | Yes |
| Recommended Coaxial Cable | 17 VATCA |
| Cabling Configuration | Star cabling (1 socket = 1 cable to antenna, splitter, or multiswitch) |
| Remote Power Supply Compatible | Yes |
| Cable Modem Compatible | No |
| DAB+ Compatible | No |
| Mounting Method | Module frame with central cover plate |
| Material | Duroplast (Plastic) |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Color | Magnesium (Grey) |
| Surface Finishing | Lacquered Matt |
| Impact Strength Rating | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Minimum Installation Box Depth | 27 mm |
| Operating Temperature Range | 5-45 °C |
| Storage Temperature Range | -25-70 °C |
| European Standards Compliance | EN 50083-4 and EN 50083-2 |
| Installation Type | Flush-mounted receptacles and floor sockets |
| Visual Connection Verification | Yes |
